Electrical Key Antenna

INSPECTION

1. INSPECT ELECTRICAL KEY ANTENNA

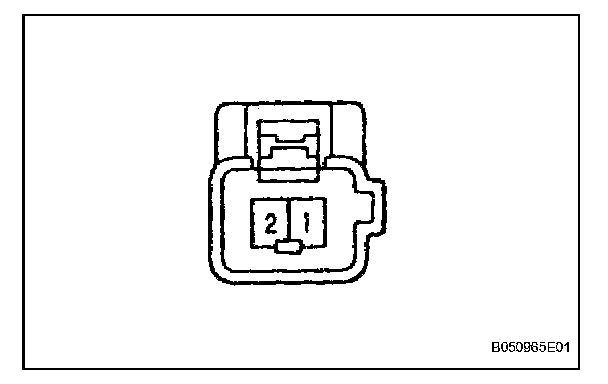

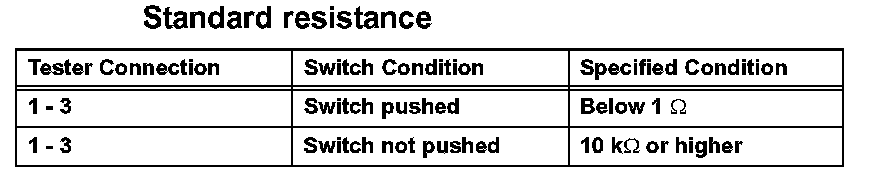

a. Measure the resistance of the outside door handle.




If the result is not as specified, replace the outside door handle.

2. INSPECT ELECTRICAL KEY ANTENNA (LUGGAGE)

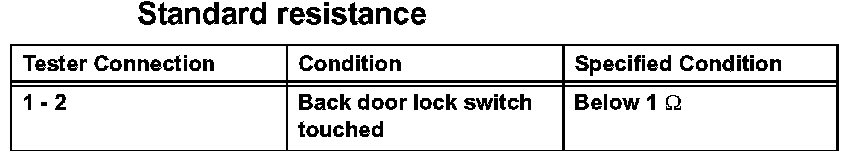

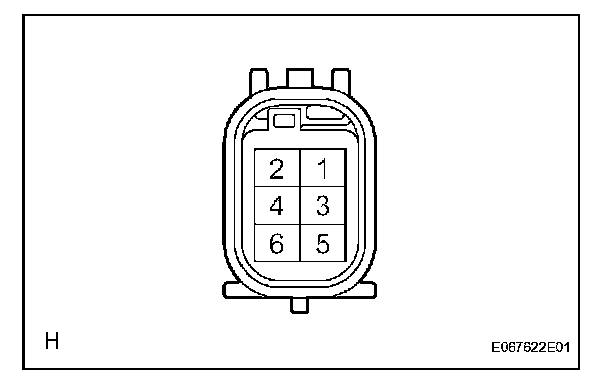

a. Measure the resistance of the antenna.




If the result is not as specified, replace the electrical key antenna (luggage).
