Door Control Switch

INSPECTION

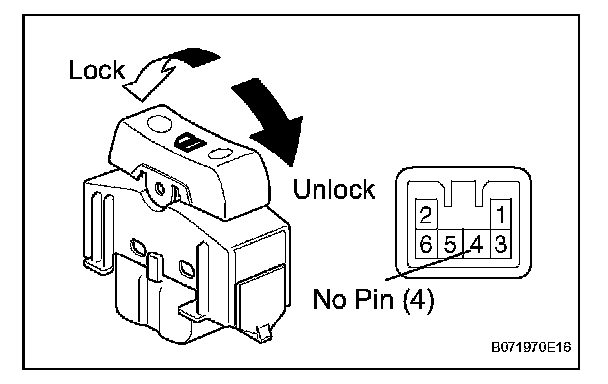

1. INSPECT DOOR CONTROL SWITCH

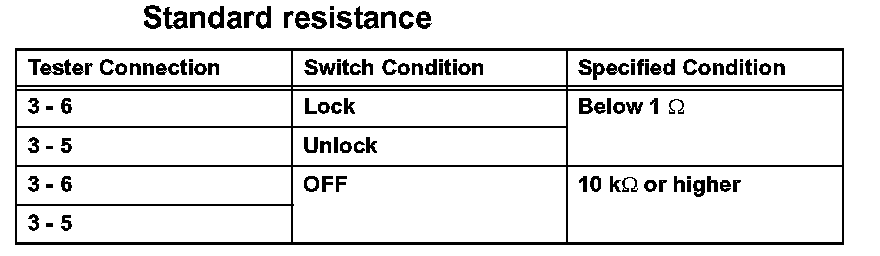

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch.
