Back Door Lock

INSPECTION

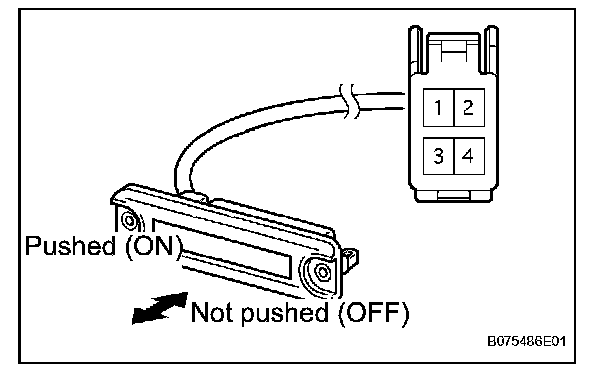

1. INSPECT BACK DOOR OPENER SWITCH

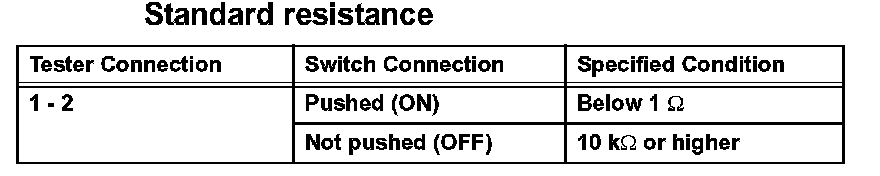

a. Measure the resistance of the switch




If the result is not as specified, replace the switch.

2. INSPECT BACK DOOR LOCK

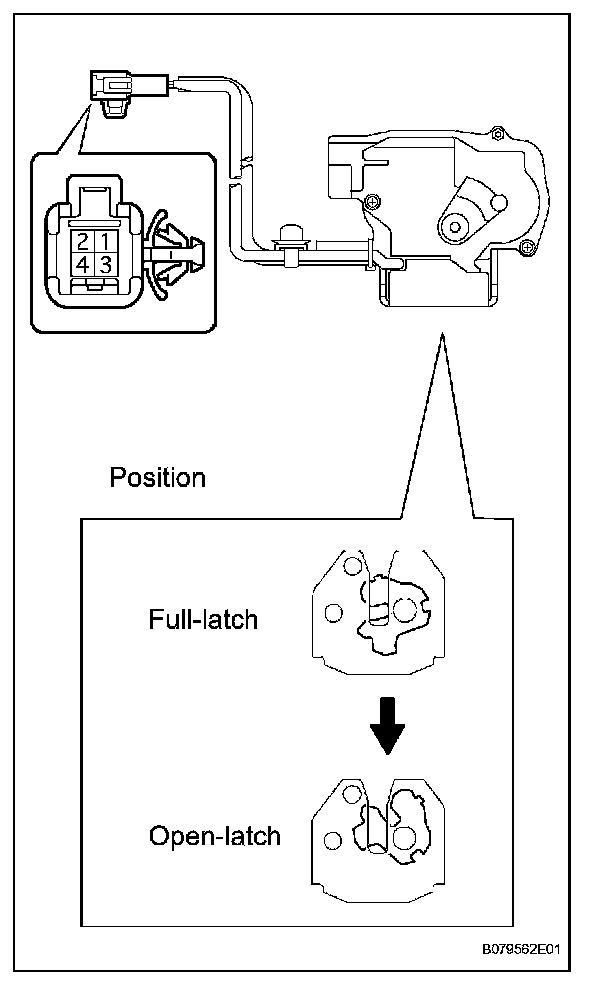

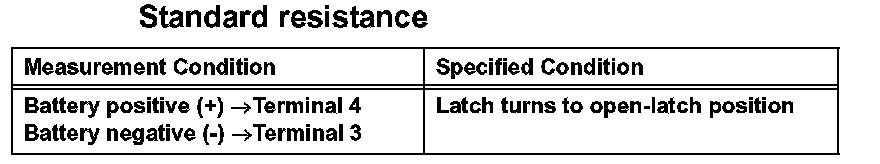

a. Apply battery voltage to the door lock and check operation the latch.




If the result is not as specified, replace the motor.

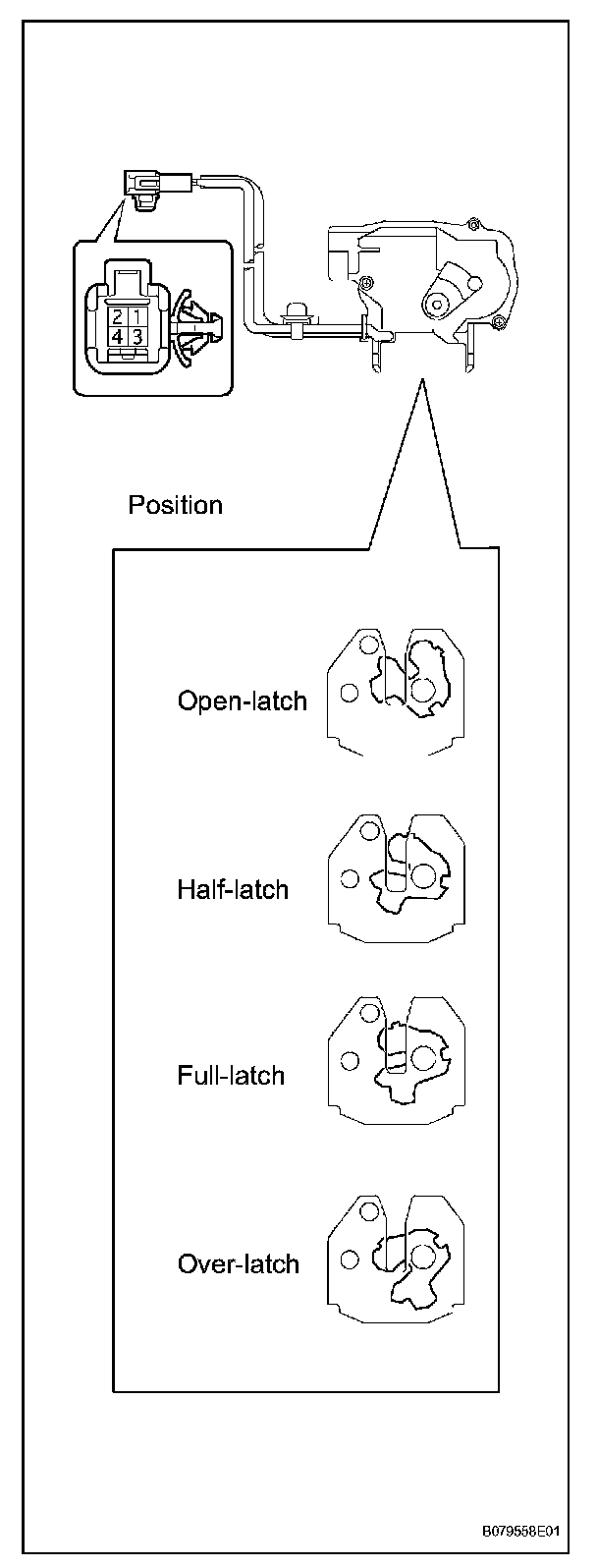

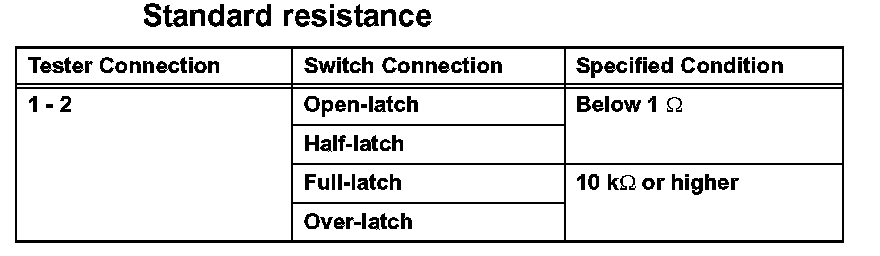

b. Measure the resistance of the switch.




If the result is not as specified, replace the door lock assembly.
