Overhaul

INSTRUMENT PANEL SAFETY PAD

DISASSEMBLY

1. REMOVE NO. 2 INSTRUMENT PANEL WIRE




a. Detach the 9 clamps and remove the instrument panel wire.

2. REMOVE COOLER (SOLAR SENSOR) THERMISTOR
3. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (w/ Daytime Running Light System)

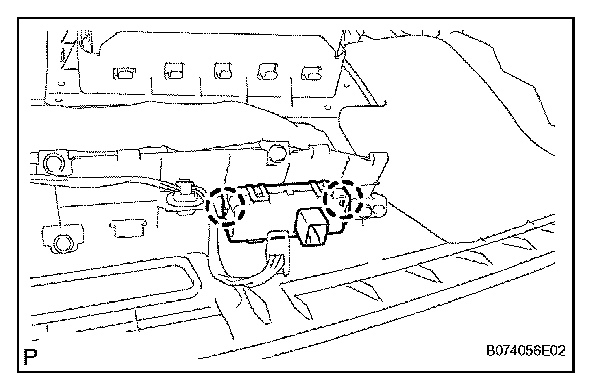

4. REMOVE TELLTALE LIGHT ASSEMBLY




a. Detach the 2 claws and remove the telltale light.

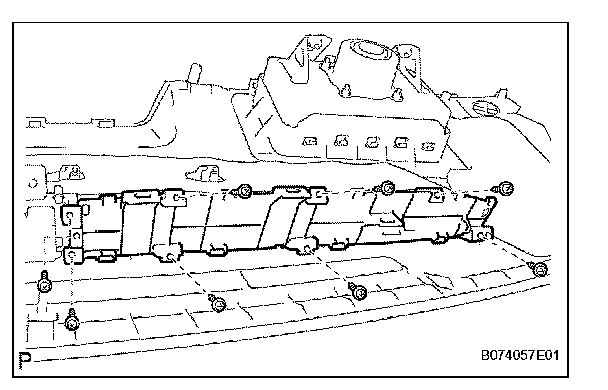

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY




a. Remove the 8 screws and instrument cluster finish panel.

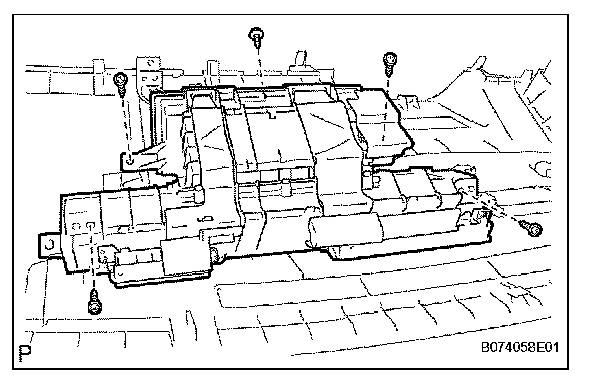

6. REMOVE COMBINATION METER ASSEMBLY




a. Remove the 5 screws and combination meter.

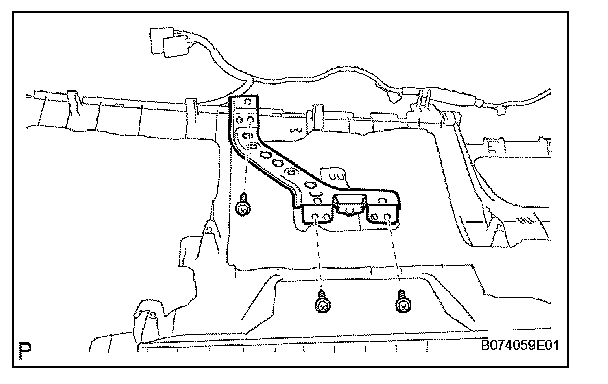

7. REMOVE NO. 1 INSTRUMENT PANEL MOUNTING BRACKET




a. Remove the 3 screws and instrument panel mounting bracket.

8. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)
9. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
10. REMOVE NO. 1 INSTRUMENT PANEL CUSHION
11. REMOVE NO. 2 INSTRUMENT PANEL CUSHION
12. REMOVE NO. 3 INSTRUMENT PANEL CUSHION
13. REMOVE NO. 4 INSTRUMENT PANEL CUSHION
14. REMOVE NO. 5 INSTRUMENT PANEL CUSHION

REASSEMBLY

1. INSTALL NO. 5 INSTRUMENT PANEL CUSHION
2. INSTALL NO. 4 INSTRUMENT PANEL CUSHION
3. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
4. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
5. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
6. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
7. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)

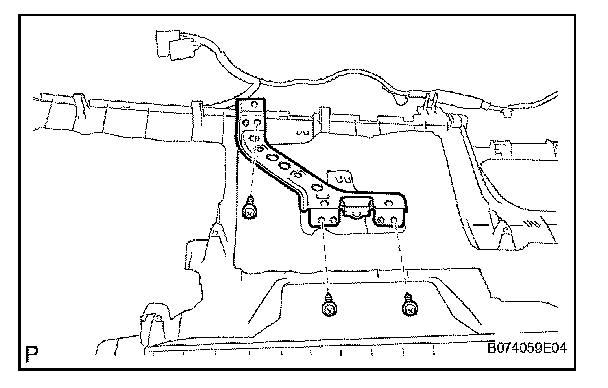

8. INSTALL NO. 1 INSTRUMENT PANEL MOUNTING BRACKET




a. Install the instrument panel mounting bracket with the 3 screws.

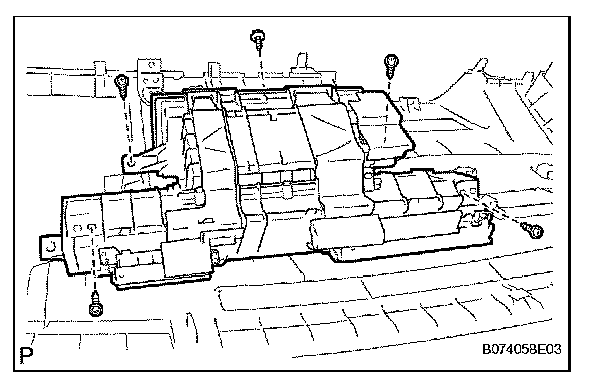

9. INSTALL COMBINATION METER ASSEMBLY




a. Install the combination meter with the 5 screws.

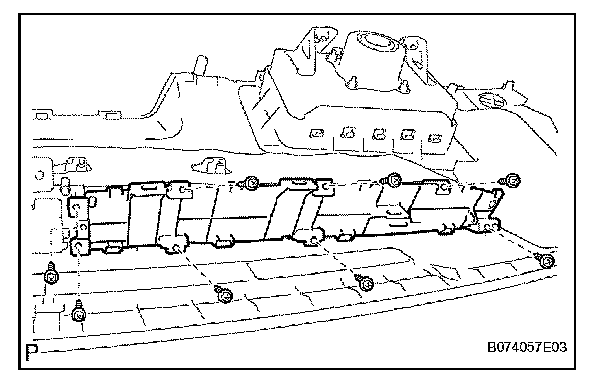

10. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY




a. Install the instrument cluster finish panel with the 8 screws.

11. INSTALL TELLTALE LIGHT ASSEMBLY




a. Attach the 2 claws to install the telltale light.

12. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (w/ Daytime Running Light System)
13. INSTALL COOLER (SOLAR SENSOR) THERMISTOR

14. INSTALL NO. 2 INSTRUMENT PANEL WIRE




a. Attach the 9 clamps to install the instrument panel wire.
