Removal and Replacement

REAR CONSOLE BOX

REMOVAL

1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

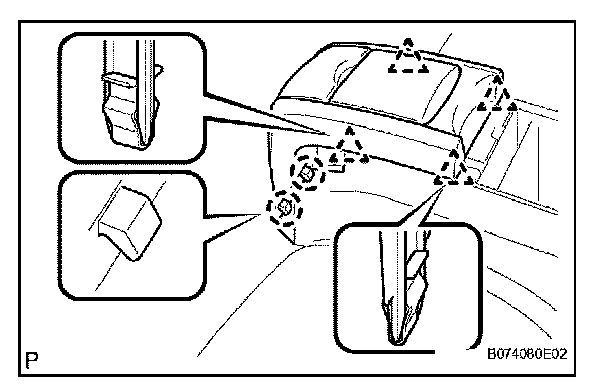

a. Pull the console panel sub-assembly upper upwards and disengage the 2 claws.
b. Detach the 4 clips and remove the console panel.

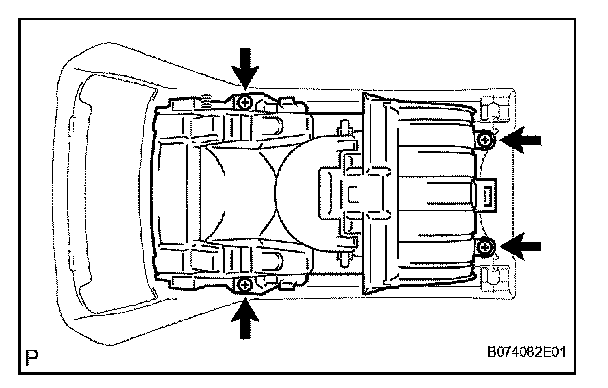

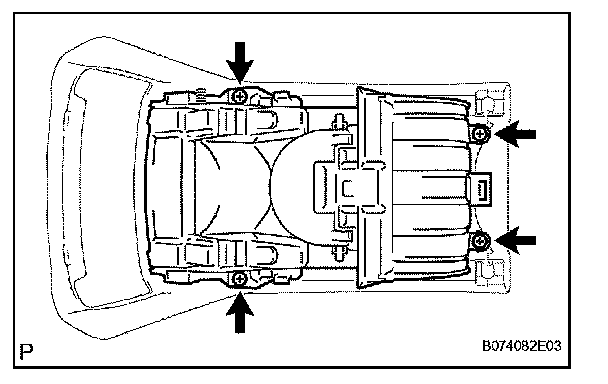

c. Remove the 4 screws and instrument panel cup holder.

2. REMOVE CONSOLE BOX POCKET
3. REMOVE CONSOLE BOX CARPET

4. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

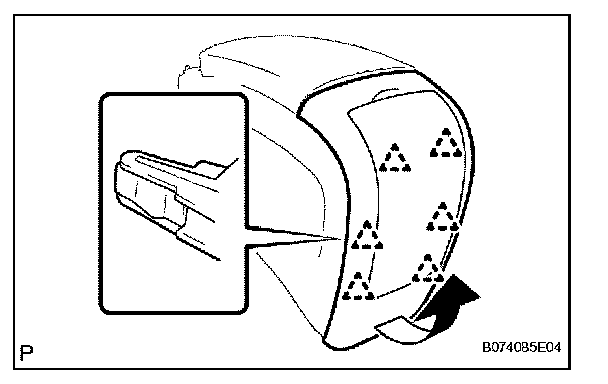

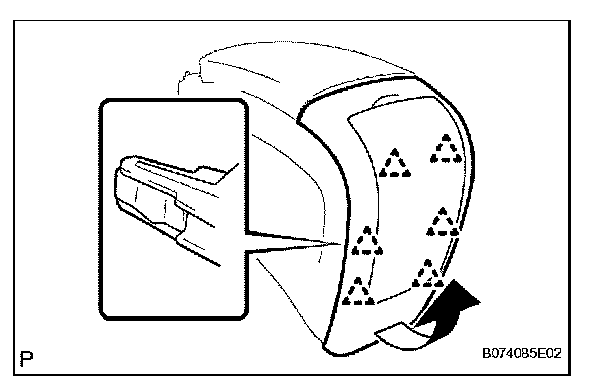

a. Pull up the console rear end panel sub-assembly in the direction indicated by the arrow to detach the 6 clips, and remove the console rear end panel.

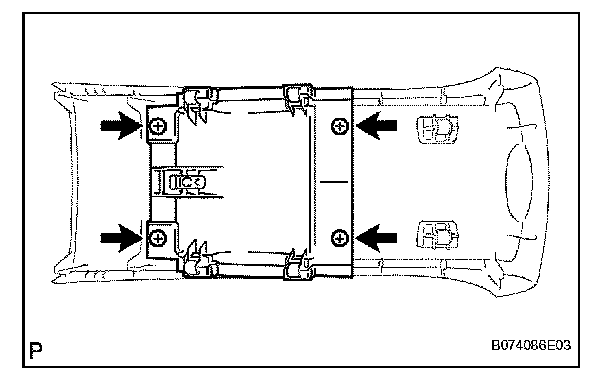

b. Remove the 4 screws and rear console box cup holder.

5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

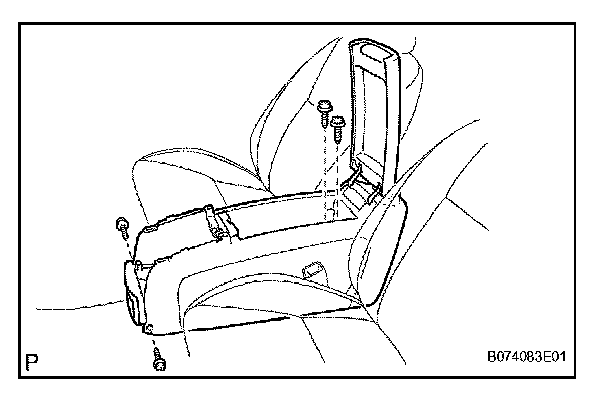

a. Remove the 2 screws, 2 bolts and console box.

INSTALLATION

1. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY

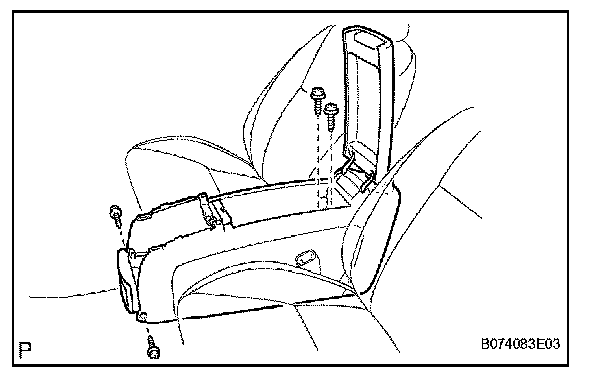

a. Install the console box with the 2 screws and 2 bolts.

2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

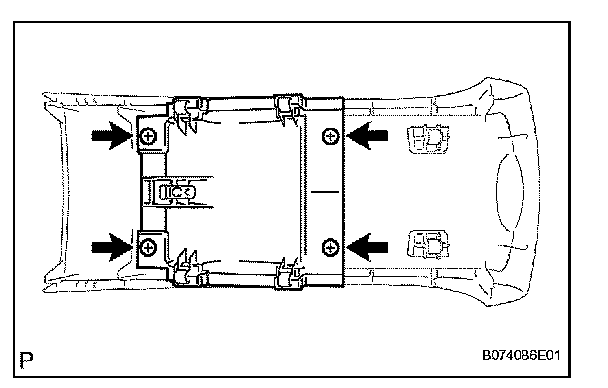

a. Install the rear console box cup holder with the 4 screws.




b. Attach the 6 clips to install the console rear end panel.

3. INSTALL CONSOLE BOX CARPET
4. INSTALL CONSOLE BOX POCKET

5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY




a. Install the instrument panel cup holder with the 4 screws.

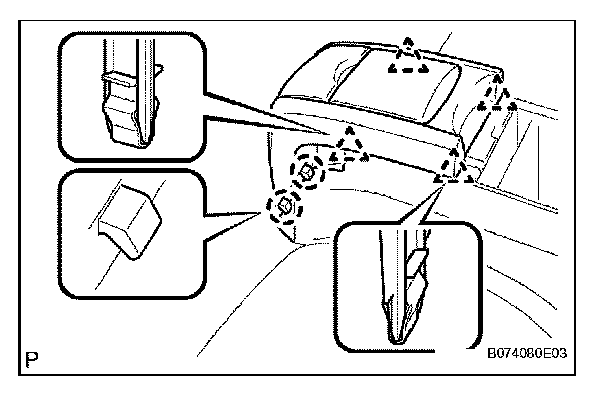

b. Attach the 4 clips and 2 claws to install the console panel.
