Removal and Replacement
BACK DOOR SUPPORTREMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE BACK DOOR STAY ASSEMBLY LH

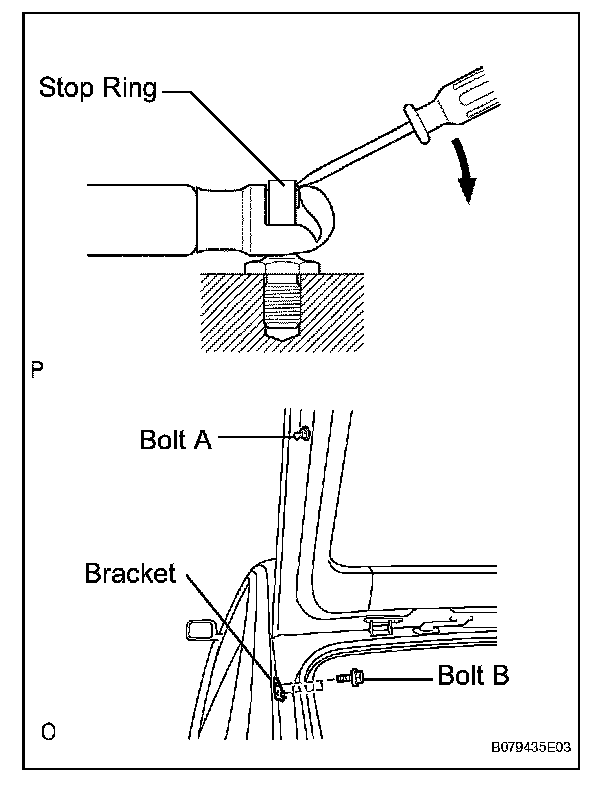

a. Using a screwdriver, remove the 2 stop rings and stay.
b. Remove the bolt labeled A from the door panel.
HINT: Remove the door stay while supporting the back door with your hands.
c. Remove the 2 bolts labeled B and stay bracket from the body panel.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL BACK DOOR STAY ASSEMBLY LH

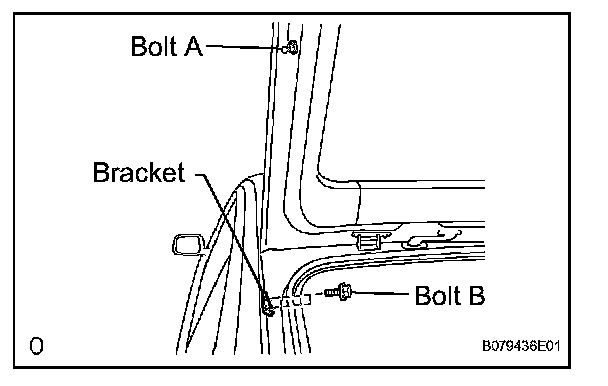

a. Install the stay bracket with the 2 bolts.
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf) for bolt labeled B
b. Install the back door stay bolt to the back door.
Torque: 22.0 N.m (224 kgf.cm, 16 ft.lbf) for bolt labeled A
c. Install the stay with the 2 stop rings.
