Removal and Replacement

Back Door Courtesy Switch:

BACK DOOR COURTESY SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

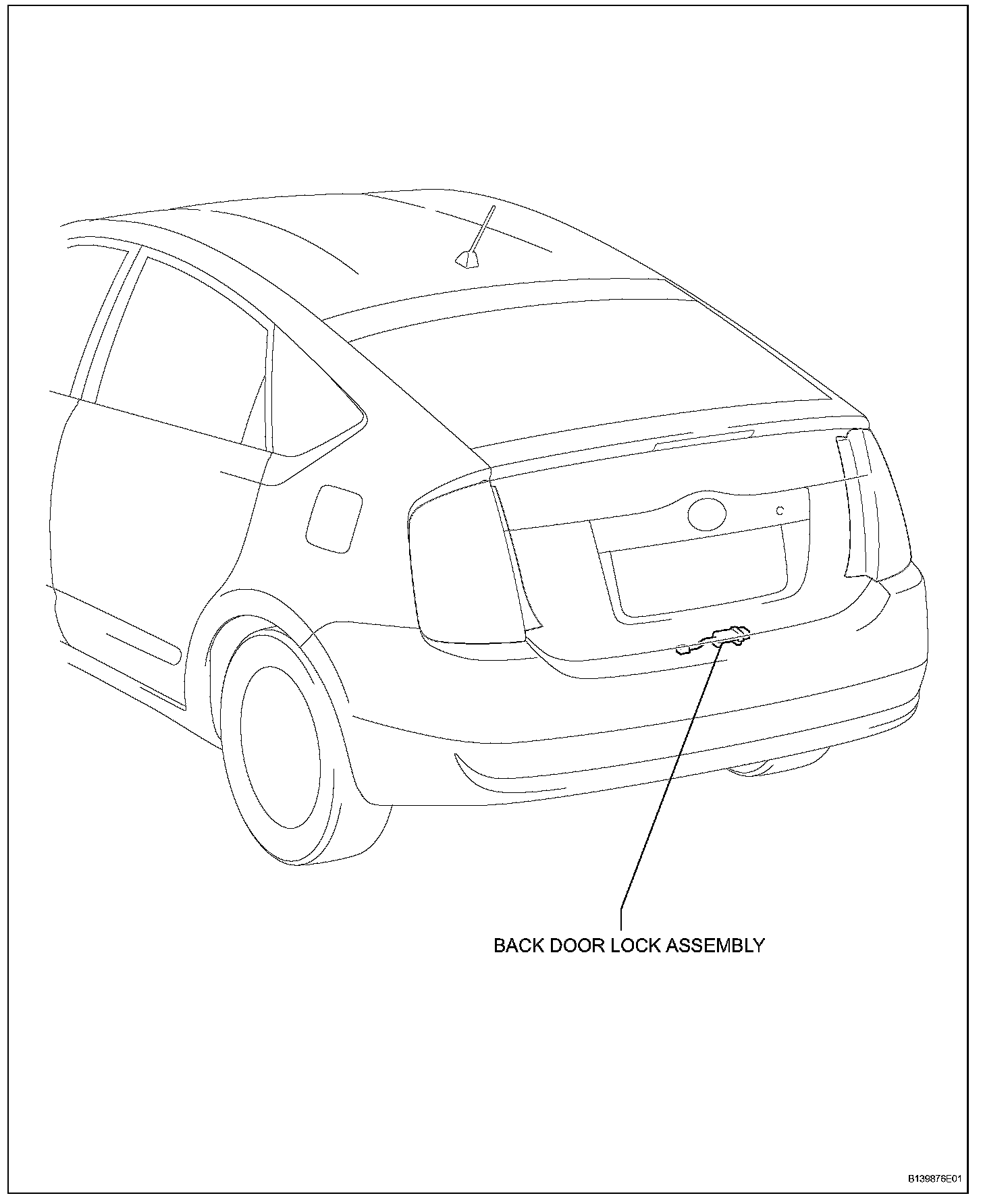

2. REMOVE BACK DOOR LOCK ASSEMBLY

INSTALLATION

1. INSTALL BACK DOOR LOCK ASSEMBLY
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
