Overhaul
DISASSEMBLY1. REMOVE NO. 2 REAR FLOOR BOARD
2. REMOVE REAR DECK FLOOR BOX
3. REMOVE NO. 3 REAR FLOOR BOARD
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
5. REMOVE REAR WIPER ARM ASSEMBLY

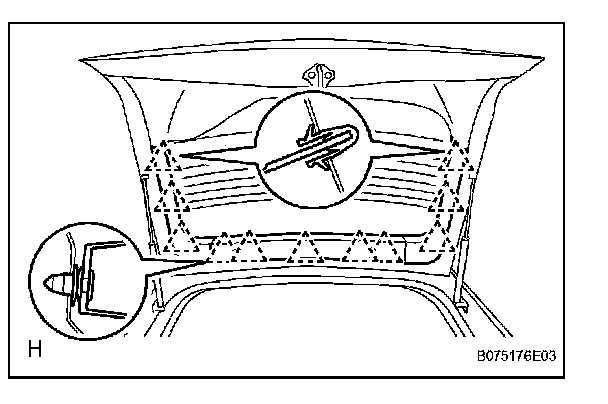

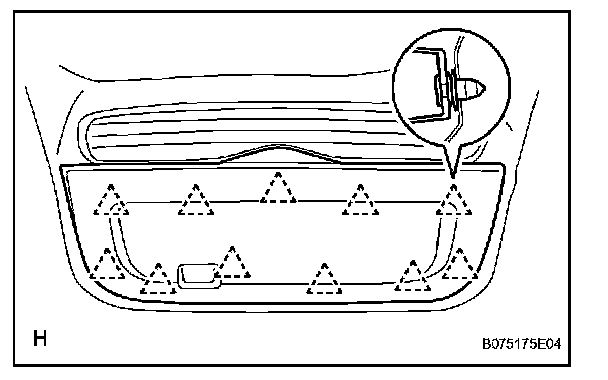

6. REMOVE BACK DOOR LOWER TRIM BOARD ASSEMBLY
a. Using a screwdriver, detach the 11 clips and remove the lower trim board.
HINT: Tape the screwdriver tip before use.
7. REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY
a. Using a screwdriver, detach the 5 clips and remove the upper trim board.
HINT: Tape the screwdriver tip before use.

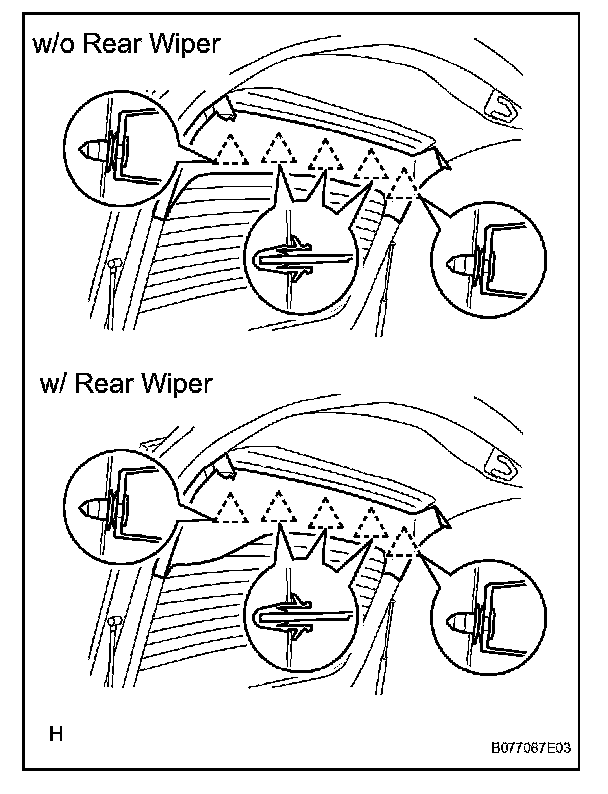

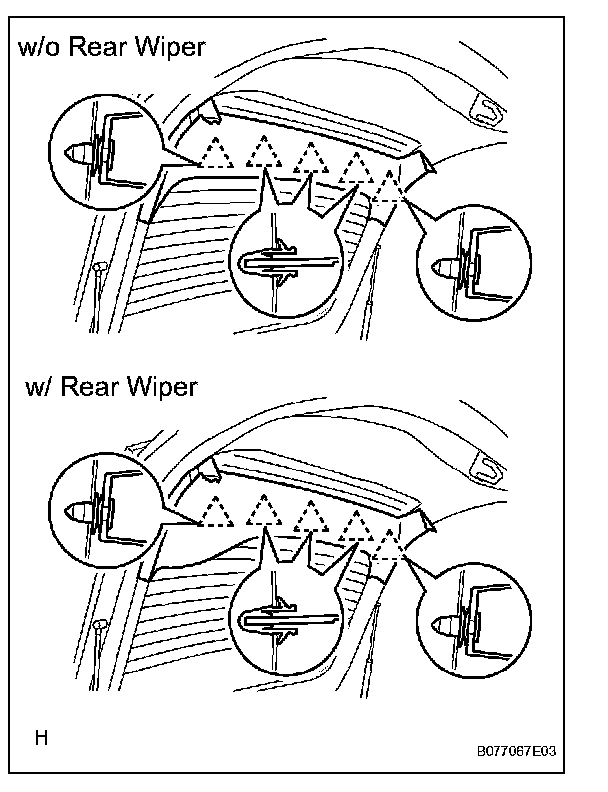

8. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
a. Using a screwdriver, detach the 5 clips and remove the trim panel.
HINT: Tape the screwdriver tip before use.
9. REMOVE BACK DOOR SIDE GARNISH LH
a. Using a screwdriver, detach the 3 clips and remove the garnish.
HINT: Tape the screwdriver tip before use.
10. REMOVE BACK DOOR SIDE GARNISH RH
a. Using a screwdriver, detach the 3 clips and remove the garnish.
HINT: Tape the screwdriver tip before use.
11. REMOVE REAR SPOILER SUB-ASSEMBLY
12. REMOVE REAR WIPER MOTOR ASSEMBLY
13. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

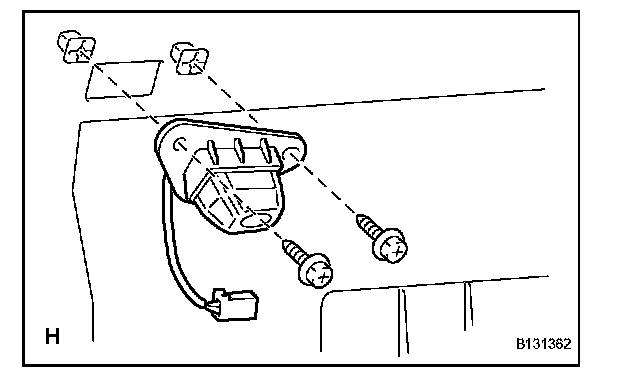

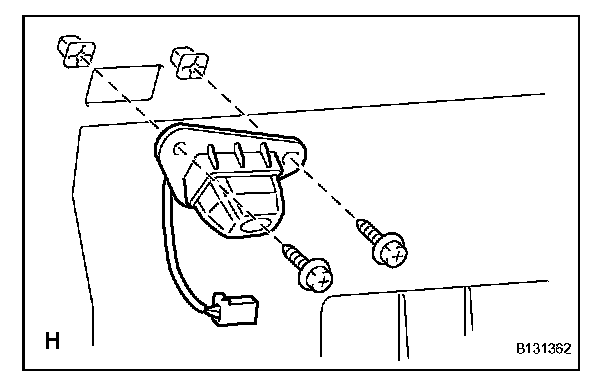

14. REMOVE TELEVISION CAMERA ASSEMBLY
a. Remove the 2 screws.
b. Disconnect the connector and remove the camera.
15. REMOVE LICENSE PLATE LIGHT ASSEMBLY

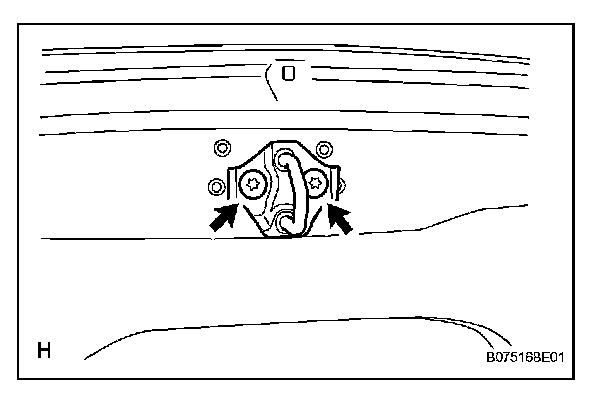

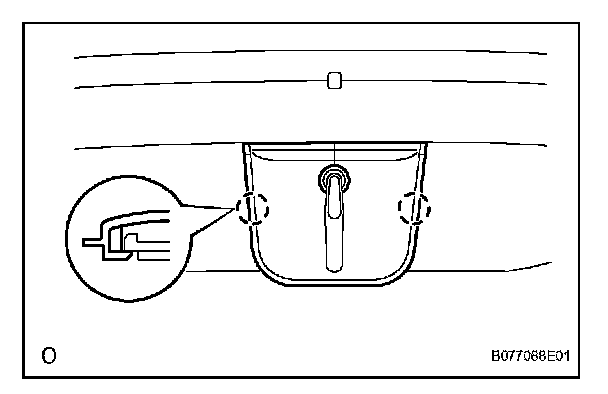

16. REMOVE BACK DOOR LOCK STRIKER ASSEMBLY

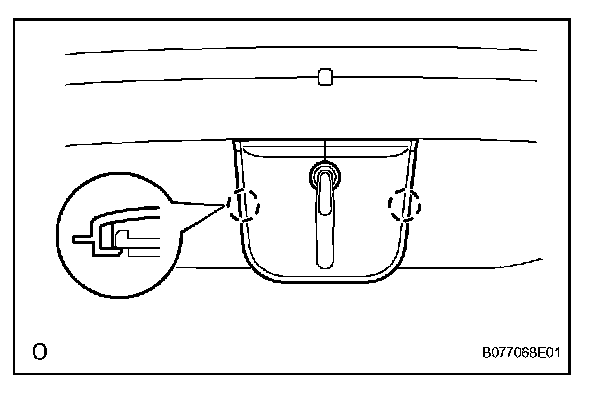

a. Using a screwdriver, detach the 2 claws and remove the cover.
b. Using a T40 "Torx" wrench, remove the 2 screws and remove the cover.
17. REMOVE BACK DOOR STAY ASSEMBLY LH
18. REMOVE BACK DOOR STAY ASSEMBLY RH
HINT: Use the same procedures for the LH side.
19. REMOVE REAR DECK TRIM COVER

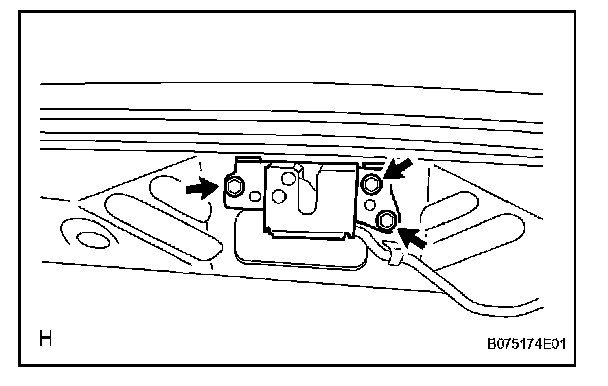

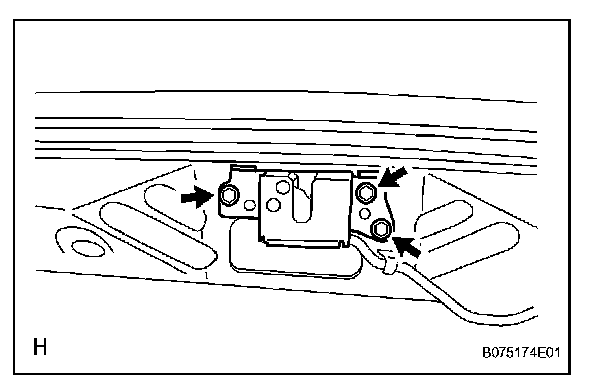

20. REMOVE BACK DOOR LOCK ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 bolts and door lock.

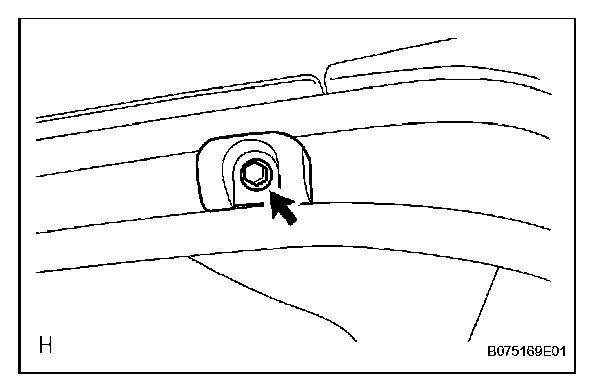

21. REMOVE BACK DOOR LOWER STOPPER
a. Remove the 2 bolts and stopper LH and RH.
REASSEMBLY
HINT: A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL BACK DOOR LOCK ASSEMBLY
a. Install the door lock with the 3 bolts.
Torque: 7.5 N.m (76 kgf.cm, 75 in.lbf)
b. Adjust the door lock.

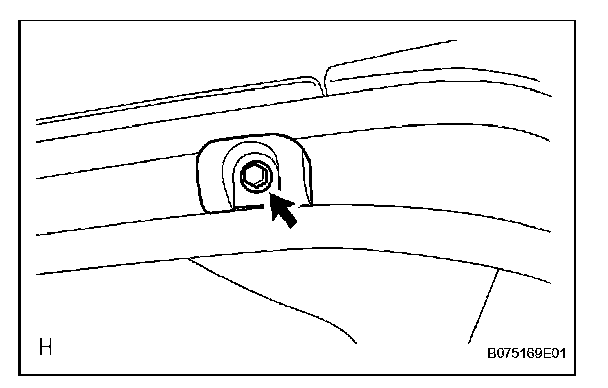

2. INSTALL BACK DOOR LOWER STOPPER
a. Install the stopper LH and RH with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
3. INSTALL REAR DECK TRIM COVER
4. INSTALL BACK DOOR STAY ASSEMBLY LH
5. INSTALL BACK DOOR STAY ASSEMBLY RH
HINT: Use the same procedures for the LH side.

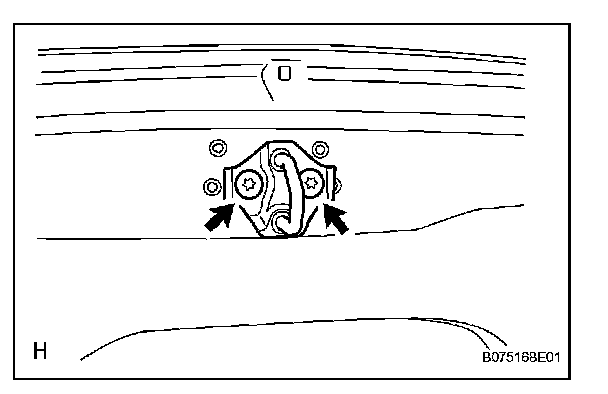

6. INSTALL BACK DOOR LOCK STRIKER ASSEMBLY
a. Using a T40 "Torx" wrench, install the striker with the 2 screws.
Torque: 23 N.m (235 kgf.cm, 16 ft.lbf)
b. Attach the 2 claws to install the cover.
7. INSTALL LICENSE PLATE LIGHT ASSEMBLY
8. INSTALL TELEVISION CAMERA ASSEMBLY
a. Connect the connector.
b. Install the camera with the 2 screws.
9. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
10. INSTALL REAR SPOILER SUB-ASSEMBLY
11. INSTALL REAR WIPER MOTOR ASSEMBLY
12. INSTALL BACK DOOR SIDE GARNISH RH
a. Attach the 3 clips to install the garnish.
13. INSTALL BACK DOOR SIDE GARNISH LH
a. Attach the 3 clips to install the garnish.
14. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
a. Attach the 11 clips to install the trim panel.
15. INSTALL BACK DOOR UPPER TRIM BOARD ASSEMBLY
a. Attach the 5 clips to install the upper trim board.

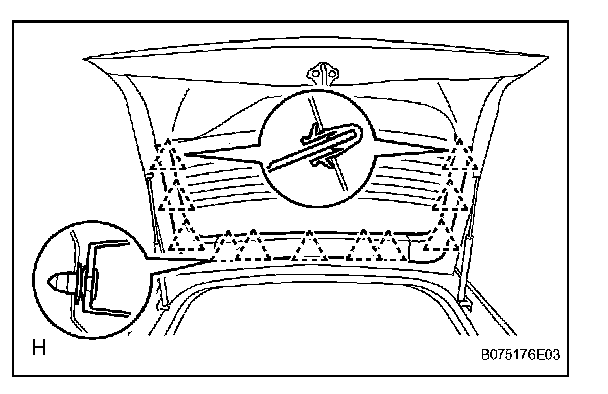

16. INSTALL BACK DOOR LOWER TRIM BOARD ASSEMBLY
a. Attach the 11 clips to install the lower trim board.
17. INSTALL REAR WIPER ARM ASSEMBLY
18. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
19. INSTALL NO. 3 REAR FLOOR BOARD
20. INSTALL REAR DECK FLOOR BOX
21. INSTALL NO. 2 REAR FLOOR BOARD
22. INSPECT SRS WARNING LIGHT
a. Inspect the SRS warning light.
23. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
