Overhaul
DISASSEMBLY1. REMOVE FRONT BUMPER MOULDING

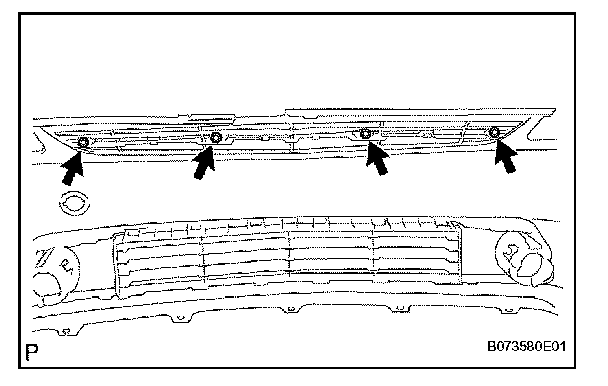

a. Remove the 4 screws.
b. Using a screwdriver, detach the 4 claws and remove the moulding.
HINT: Tape the screwdriver tip before use.
2. REMOVE LOWER RADIATOR GRILLE LH
a. Using a screwdriver, detach the 4 claws and remove the grille.
HINT: Tape the screwdriver tip before use.
3. REMOVE LOWER RADIATOR GRILLE RH
HINT: Use the same procedure described for the LH side.
4. REMOVE FOG LIGHT UNIT LH (w/ Fog Light)
5. REMOVE FOG LIGHT UNIT RH (w/ Fog Light)
HINT: Use the same procedure described for the LH side.
6. REMOVE RADIATOR GRILLE

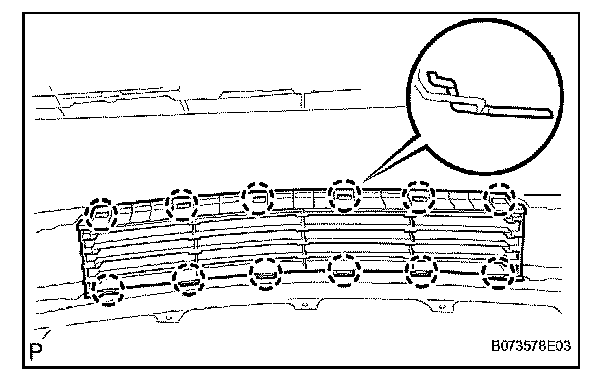

a. Using a screwdriver, detach the 12 claws and remove the grille.
HINT: Tape the screwdriver tip before use.
7. REMOVE FRONT TURN SIGNAL LIGHT MOUNTING BRACKET RH

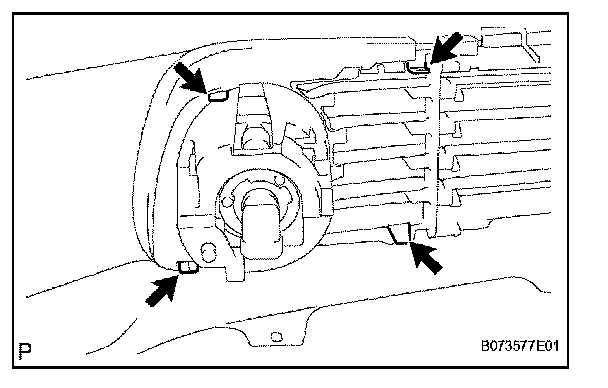

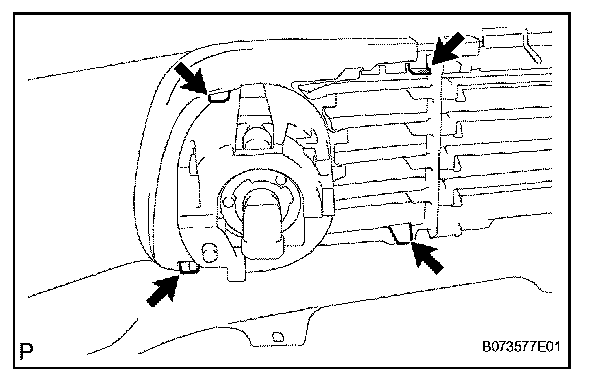

a. Using a screwdriver, detach the claws and remove the mounting bracket.
HINT: Tape the screwdriver tip before use.
8. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
a. Remove the 2 screws and mounting bracket.
REASSEMBLY
1. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
a. Install the mounting bracket with the 2 screws.
2. INSTALL FRONT TURN SIGNAL LIGHT MOUNTING BRACKET RH
a. Attach the claws to install the mounting bracket.
3. INSTALL RADIATOR GRILLE

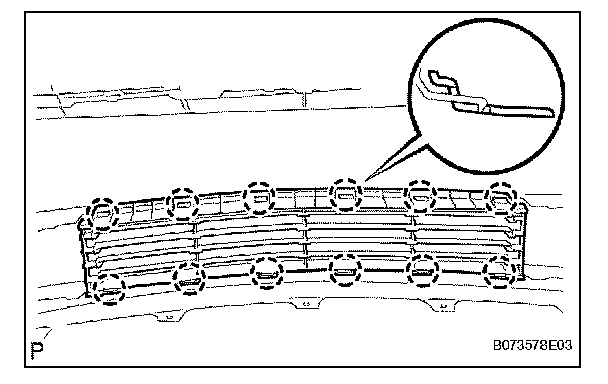

a. Attach the 12 claws to install the grille.
4. INSTALL FOG LIGHT UNIT LH (w/ Fog Light)
5. INSTALL FOG LIGHT UNIT RH (w/ Fog Light)
HINT: Use the same procedure described for the LH side.
6. INSTALL LOWER RADIATOR GRILLE LH
a. Attach the 4 claws to install the grille.
7. INSTALL LOWER RADIATOR GRILLE RH
HINT: Use the same procedure described for the LH side.
8. INSTALL FRONT BUMPER MOULDING
a. Attach the 4 claws to install the moulding.

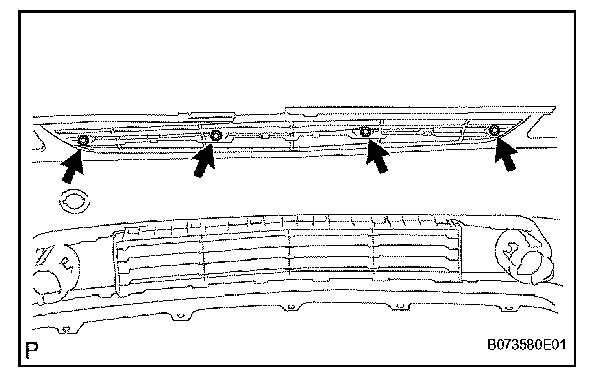

b. Install the 4 screws.
