Pinout Values and Diagnostic Parameters

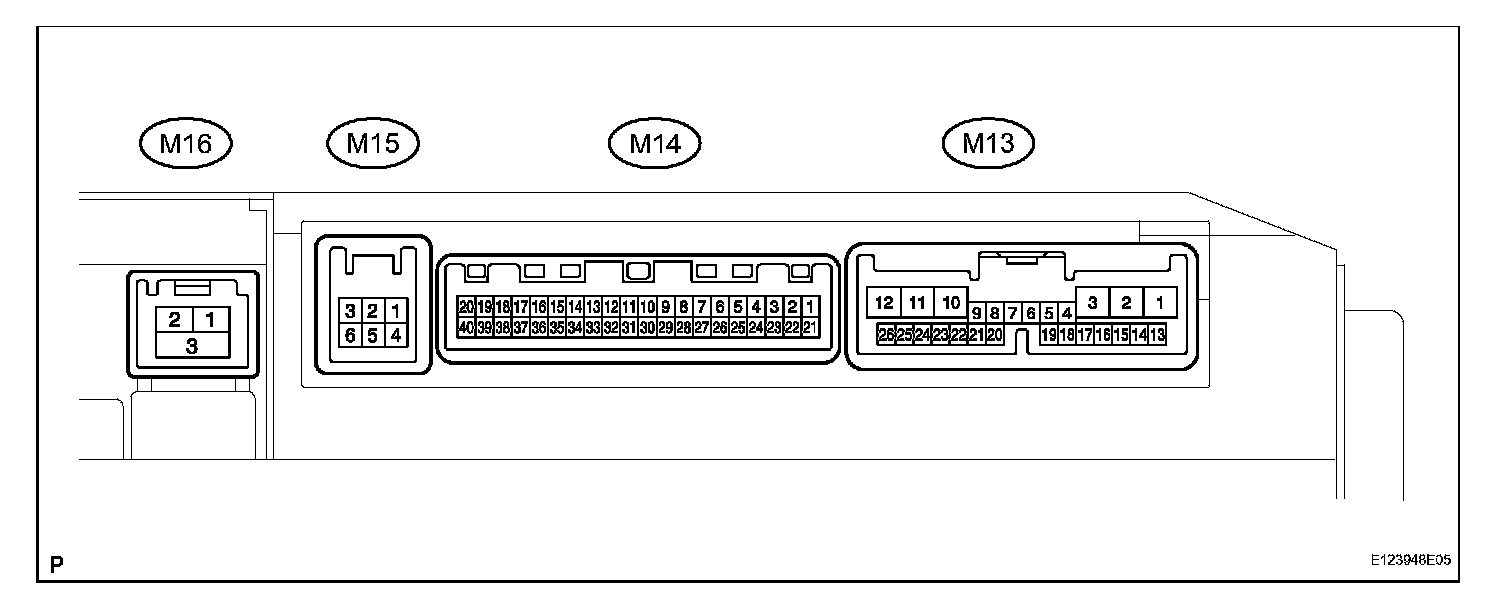

1. CHECK MULTI-DISPLAYTerminals Of Control Module/Pinouts (Part 1):
a. Disconnect the M13 display connector.

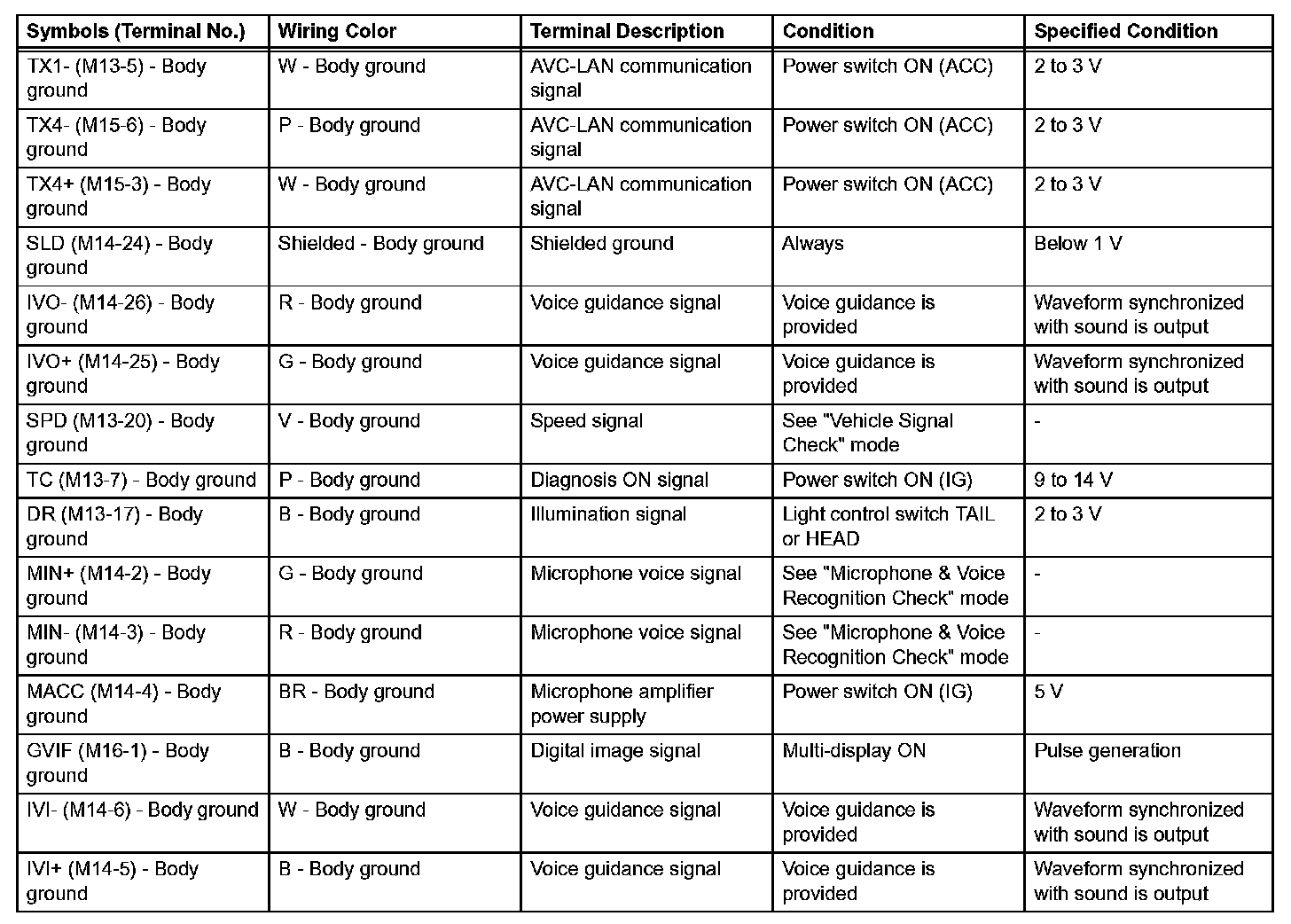

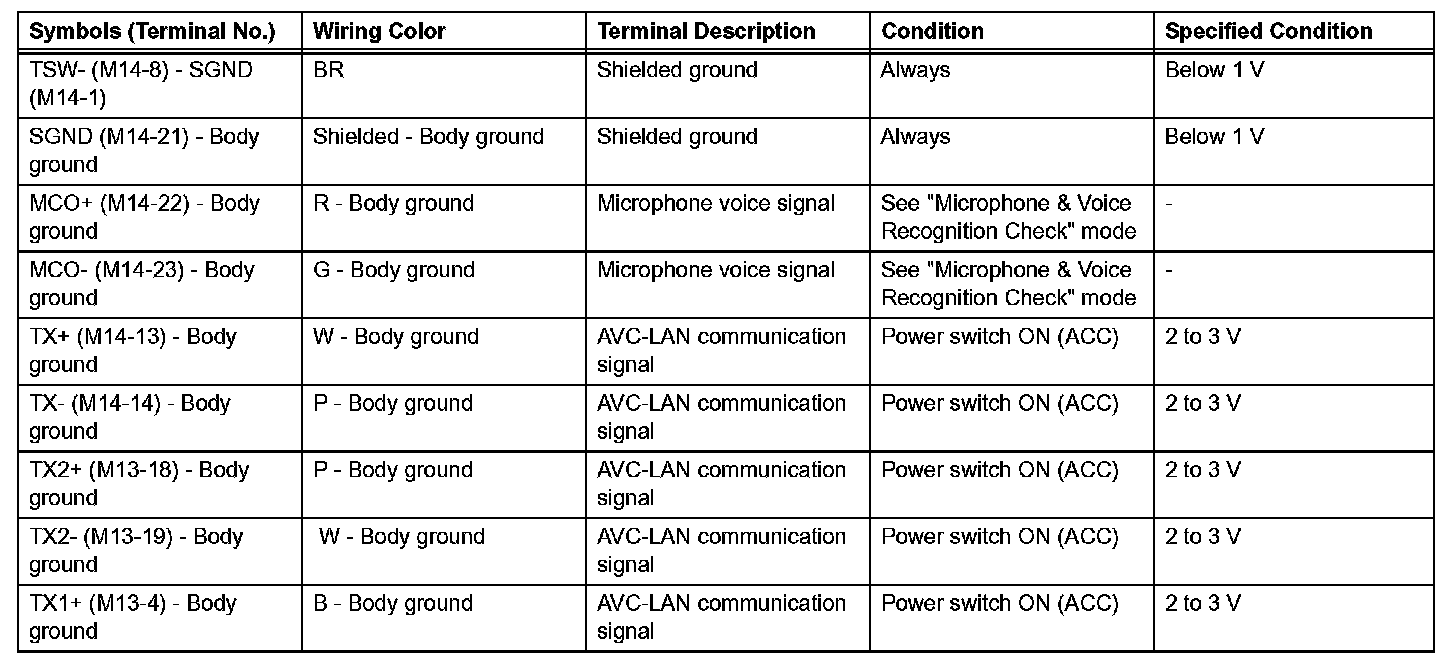

b. Measure the resistance and voltage of the wire harness side connector.
Terminals Of Control Module/Pinouts (Part 2):
If the results are not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the M13 display connector.
Terminals Of Control Module/Pinouts (Part 3):
Terminals Of Control Module/Pinouts (Part 2):
d. Measure the voltage of the connector.
If the result is not as specified, the multi-display may have a malfunction.
2. CHECK NAVIGATION ECU
Terminals Of Control Module/Pinouts (Part 1):
a. Disconnect the N3 ECU connector.

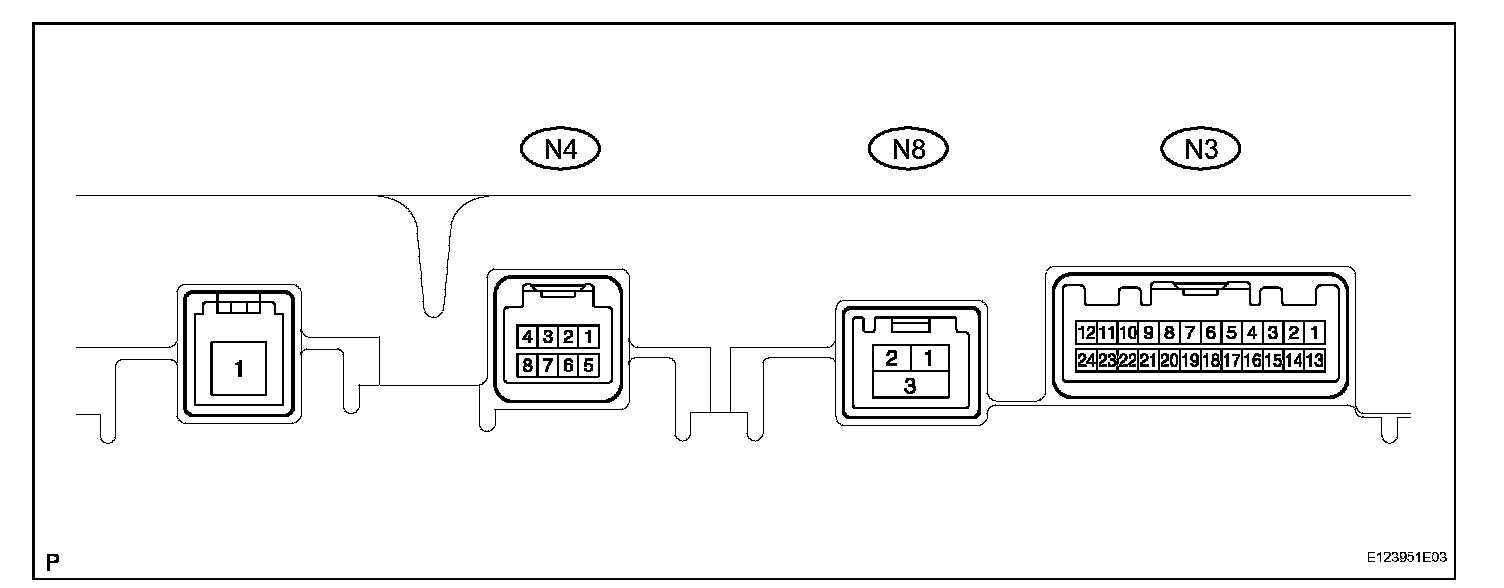

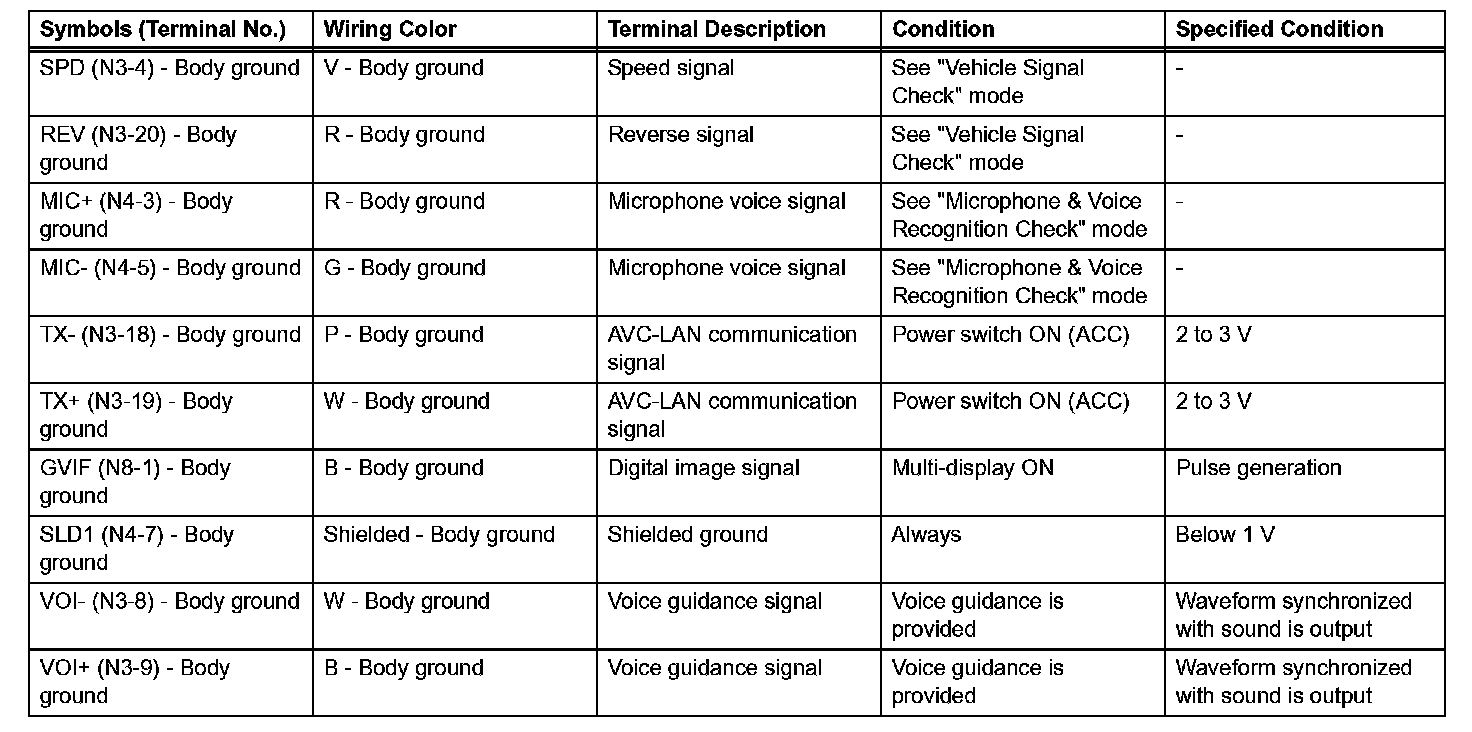

b. Measure the resistance and voltage of the wire harness side connector.
Terminals Of Control Module/Pinouts (Part 2):

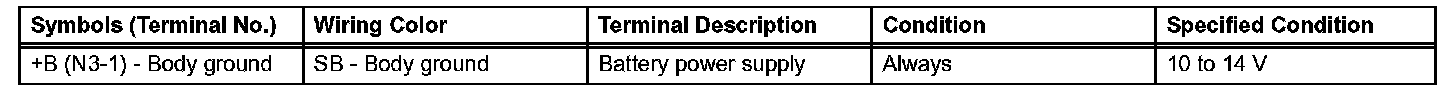

Terminals Of Control Module/Pinouts (Part 3):
If the results are not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the N3 ECU connector.
Terminals Of Control Module/Pinouts (Part 4):
d. Measure the voltage of the connector.
If the result is not as specified, the ECU may have a malfunction.
Terminals Of Control Module/Pinouts - Check Radio Receiver (for 6 Speaker System):
Terminals Of Control Module/Pinouts - Check Radio Receiver (for 6 Speaker System) (Part 1):

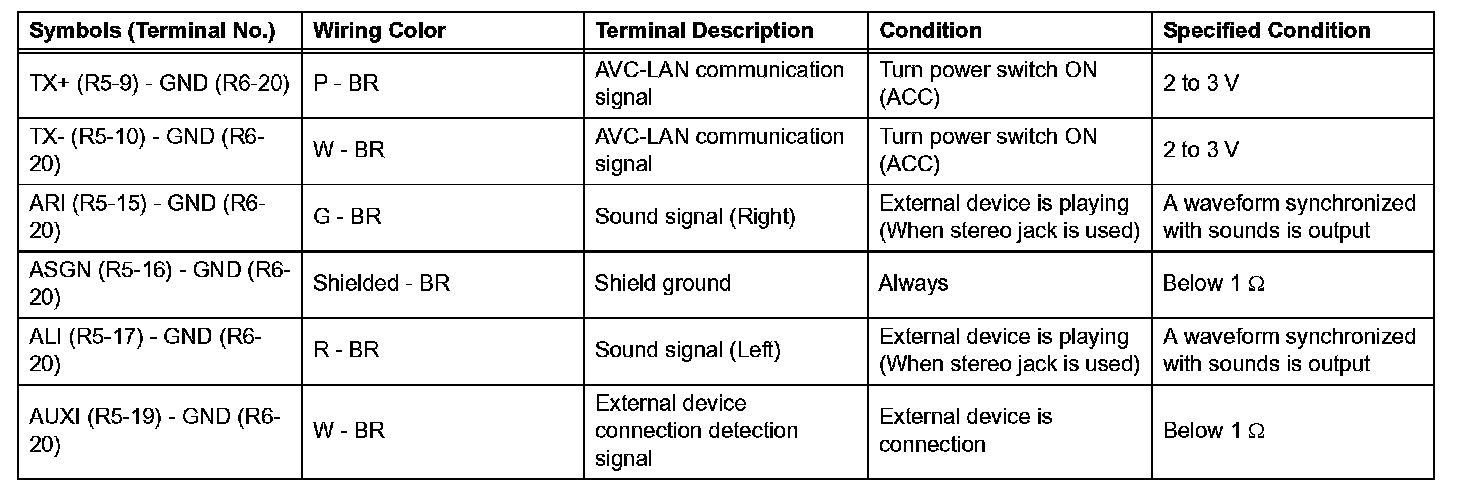

Terminals Of Control Module/Pinouts - Check Radio Receiver (for 6 Speaker System) (Part 2):

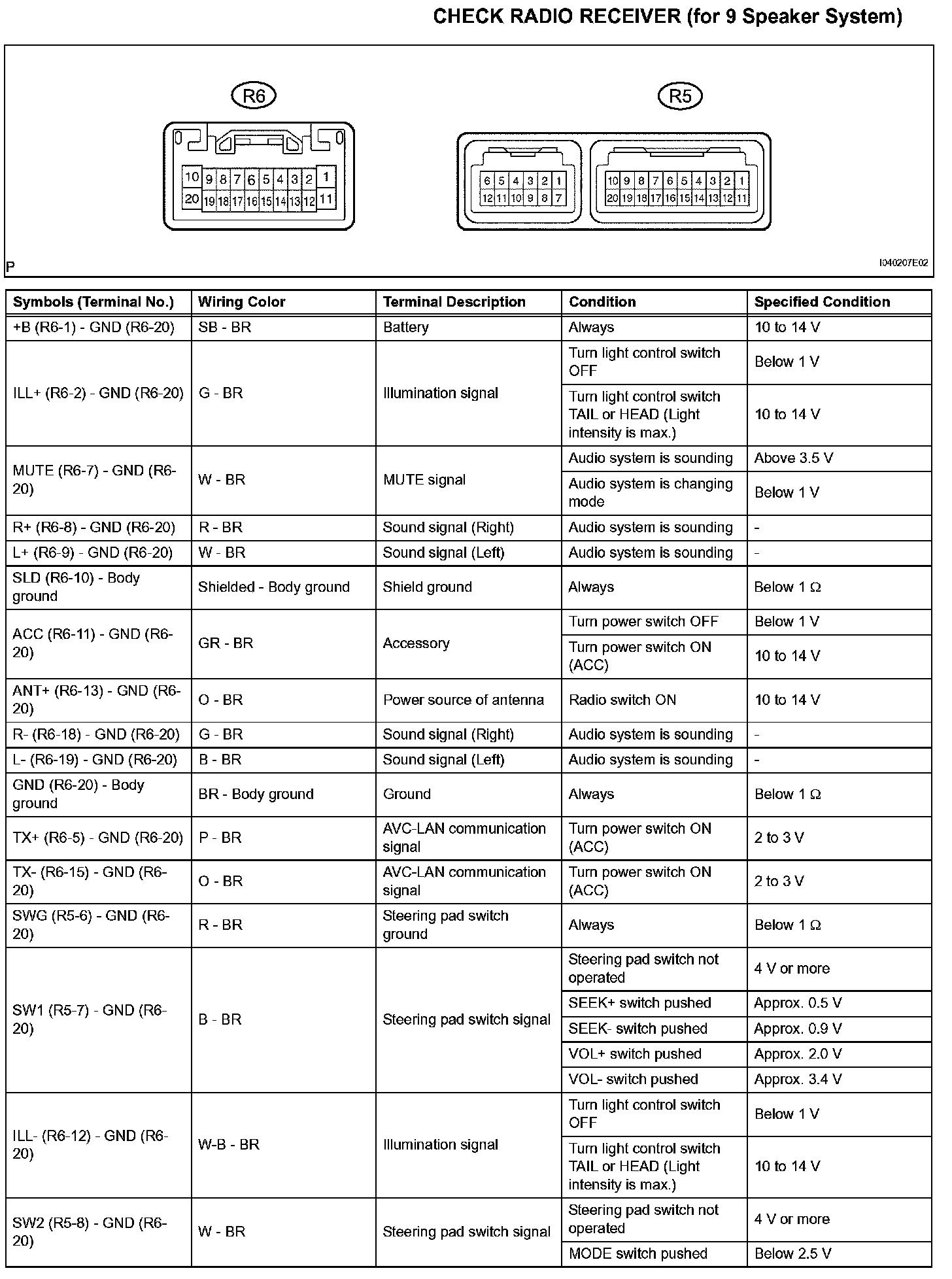

3. CHECK RADIO RECEIVER

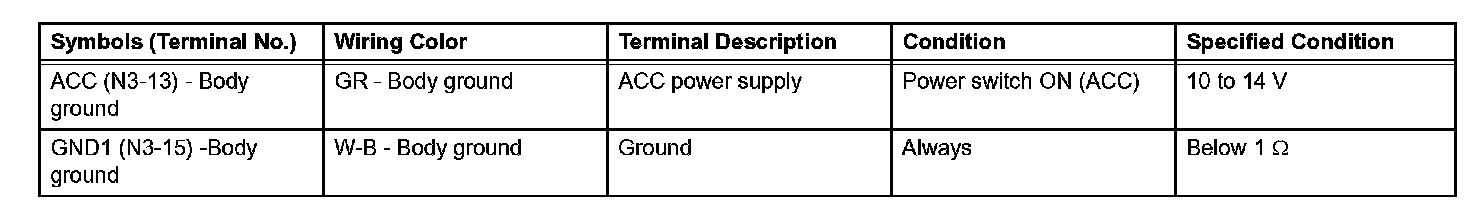

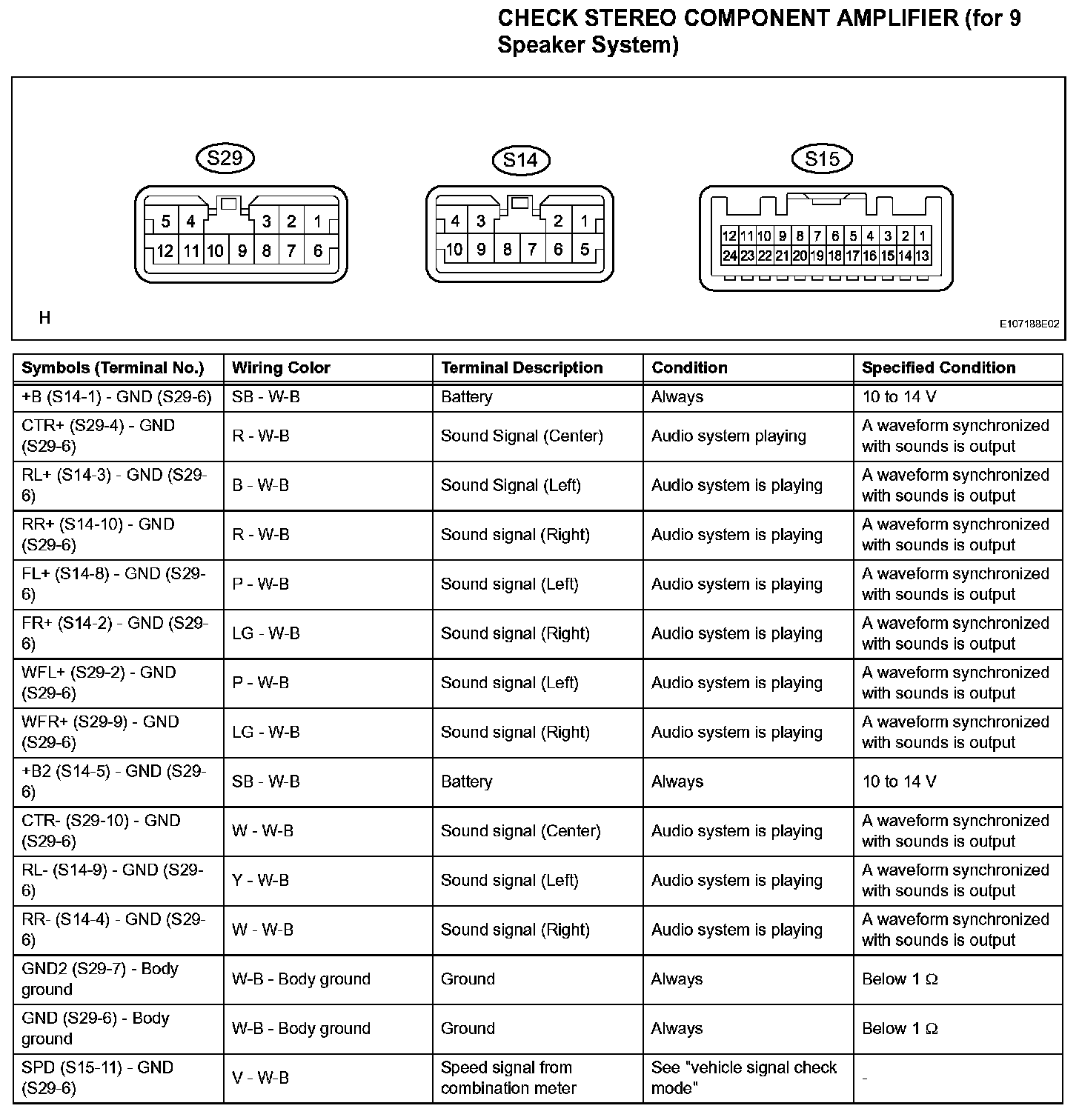

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (for 9 Speaker System) (Part 1):

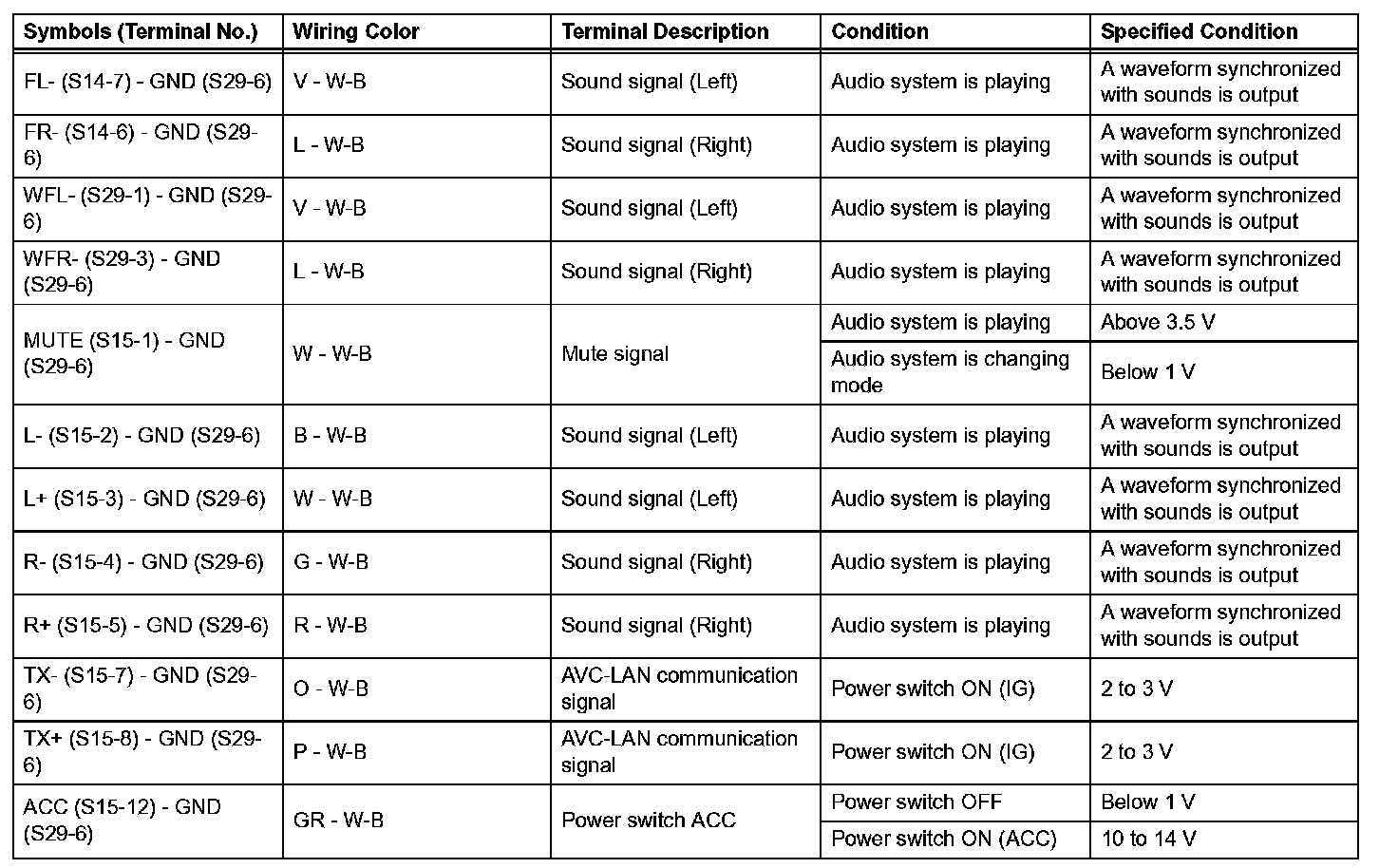

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier (for 9 Speaker System) (Part 2):
4. CHECK STEREO COMPONENT AMPLIFIER
Terminals Of Control Module/Pinouts (Part 1):
5. CHECK TELEVISION CAMERA (w/ Rear View Monitor System)
a. Disconnect the T13 camera connector.
Terminals Of Control Module/Pinouts (Part 2):
b. Measure the voltage and resistance between each terminal of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T13 camera connector.

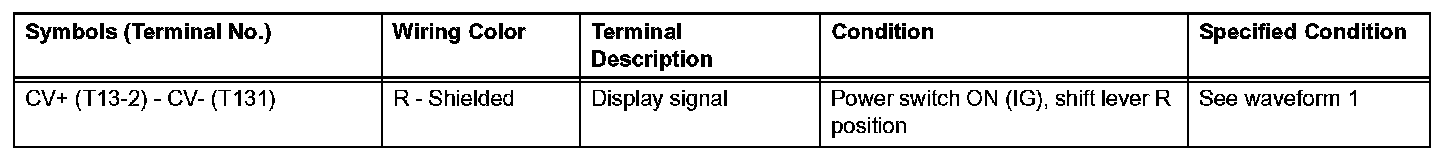

Terminals Of Control Module/Pinots (Part 3):
d. Measure the voltage and frequency between each terminal of the connector.

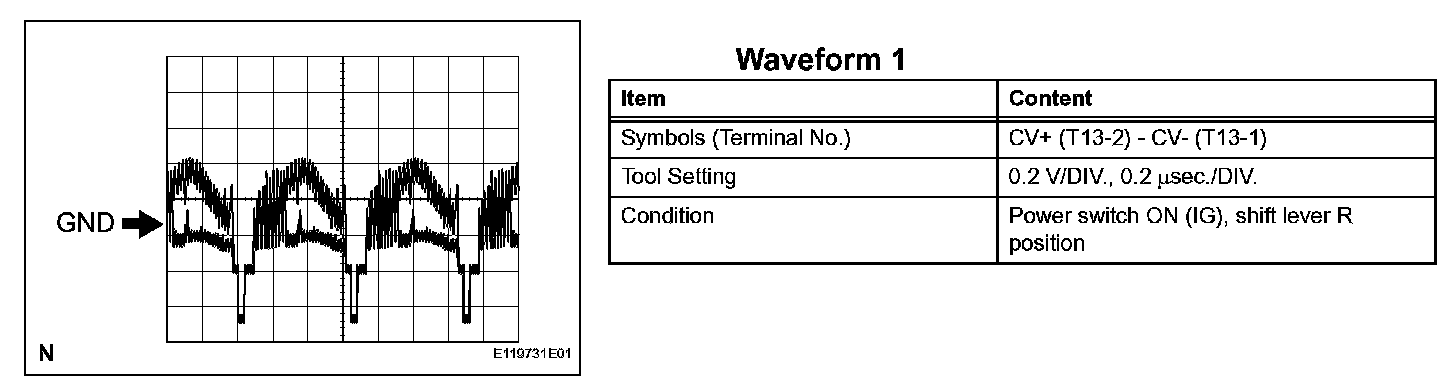

Oscilloscope Waveform:
e. Using an oscilloscope, check the waveform
Terminals Of Control Module/Pinouts - Check Network Gateway ECU:
6. CHECK GATEWAY ECU
