Microphone Circuit Between Overhead J/B and Multi-Display
Microphone Circuit between Overhead J/B and Multi-displayDESCRIPTION
This circuit sends a microphone signal from the microphone to the multi-display. It also supplies power from multi-display to the microphone.

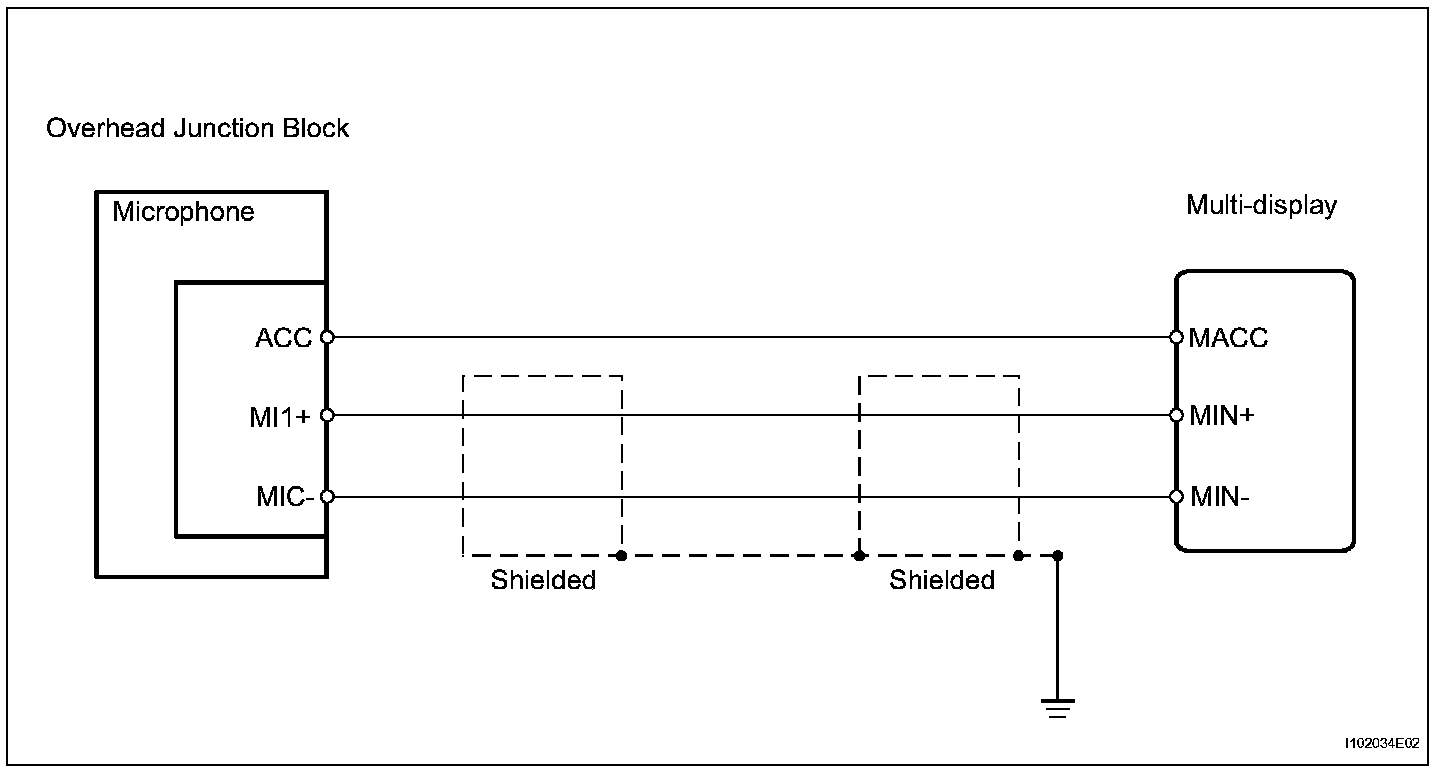

Wiring Diagram:

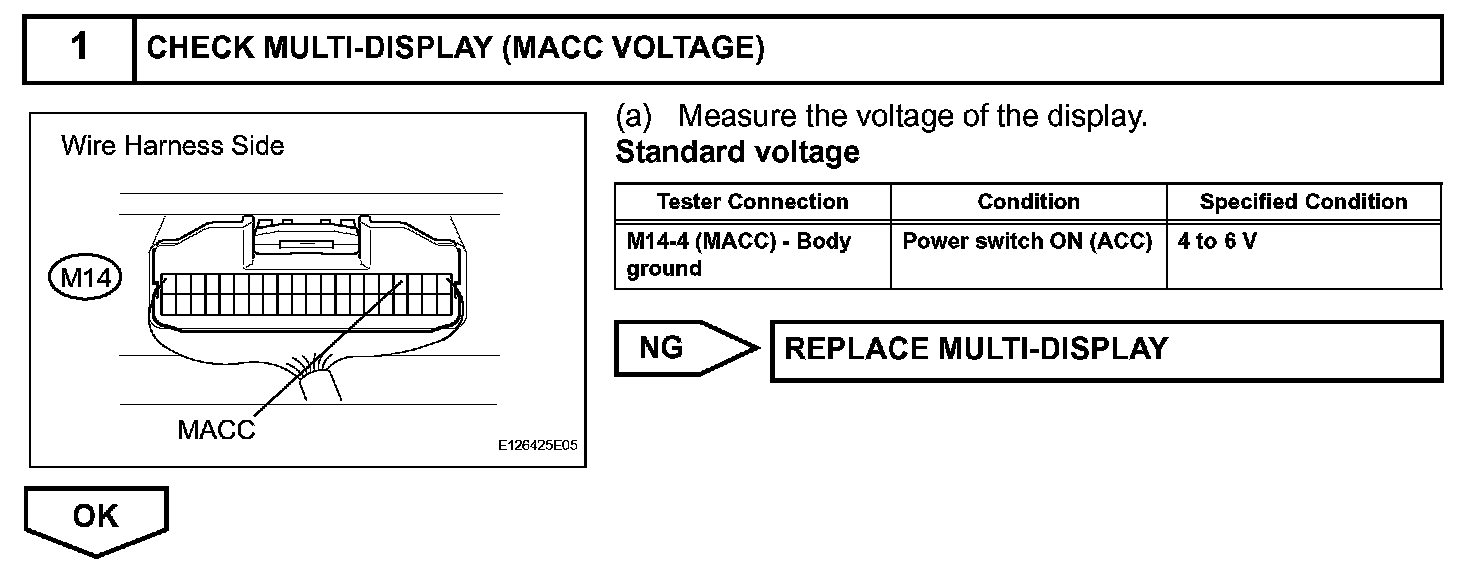

Step 1:
Step 2:
INSPECTION PROCEDURE
