Microphone Circuit Between Multi-Display and Navigation ECU
Microphone Circuit between Multi-display and Navigation ECUDESCRIPTION
This circuit sends a microphone signal from the multi-display to the navigation ECU.

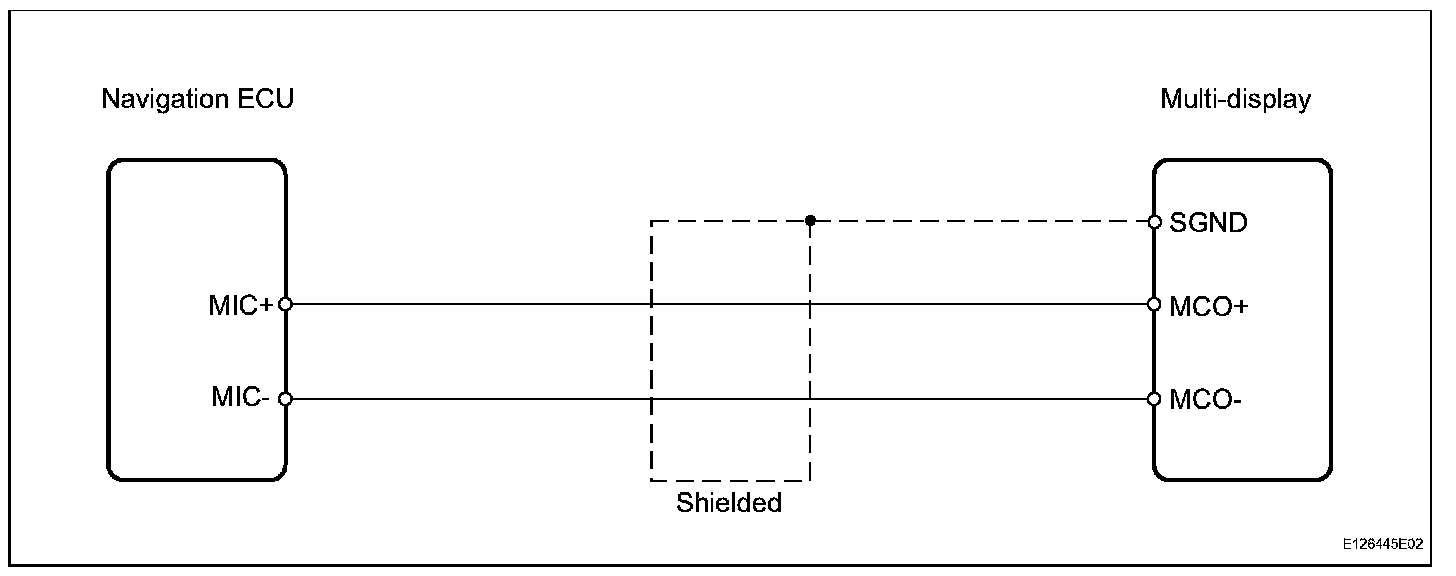

Wiring Diagram:

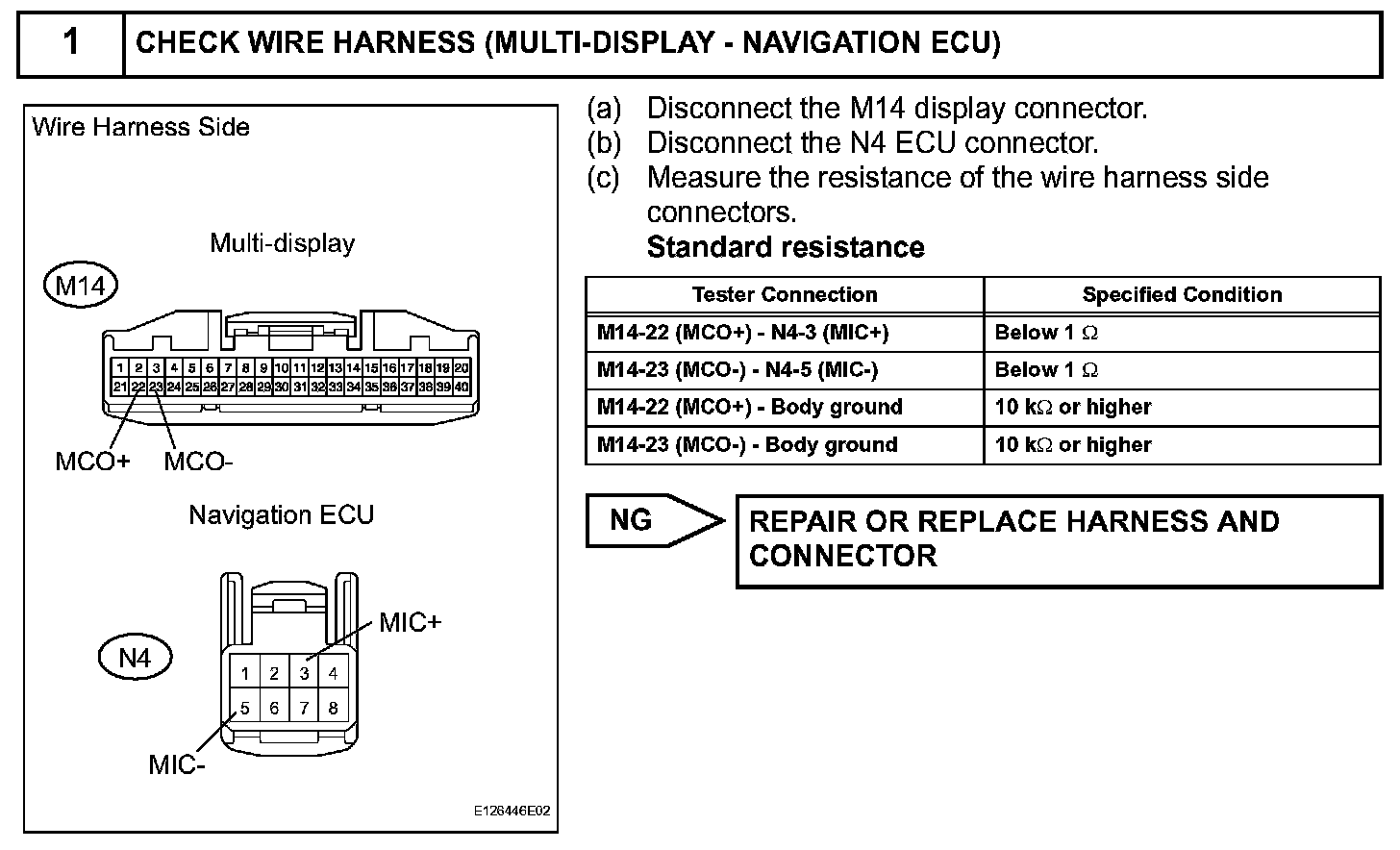

Step 1:

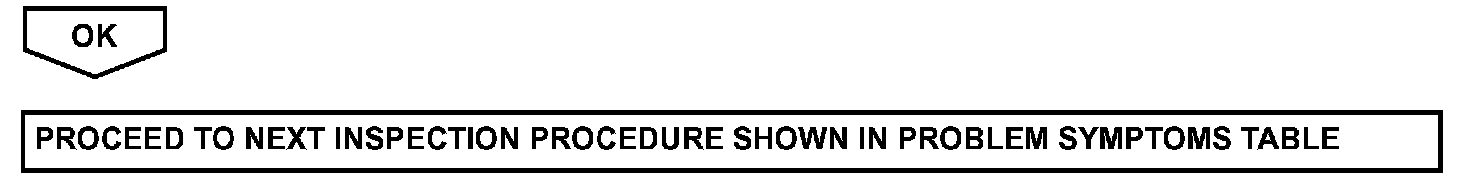

Step 1 (Continued):
INSPECTION PROCEDURE
