Gateway ECU Communication Error

Gateway ECU Communication Error

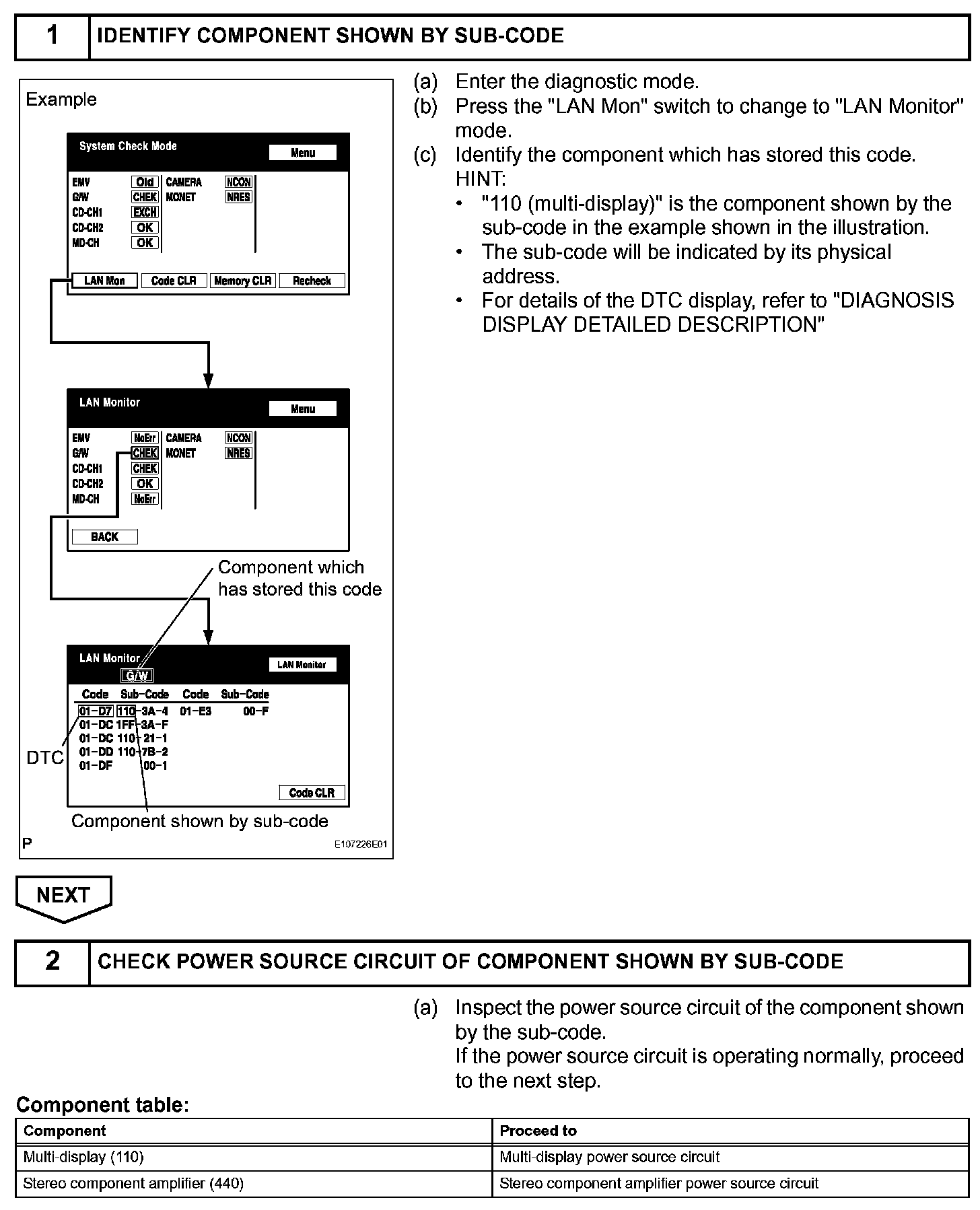

Step 1-2:

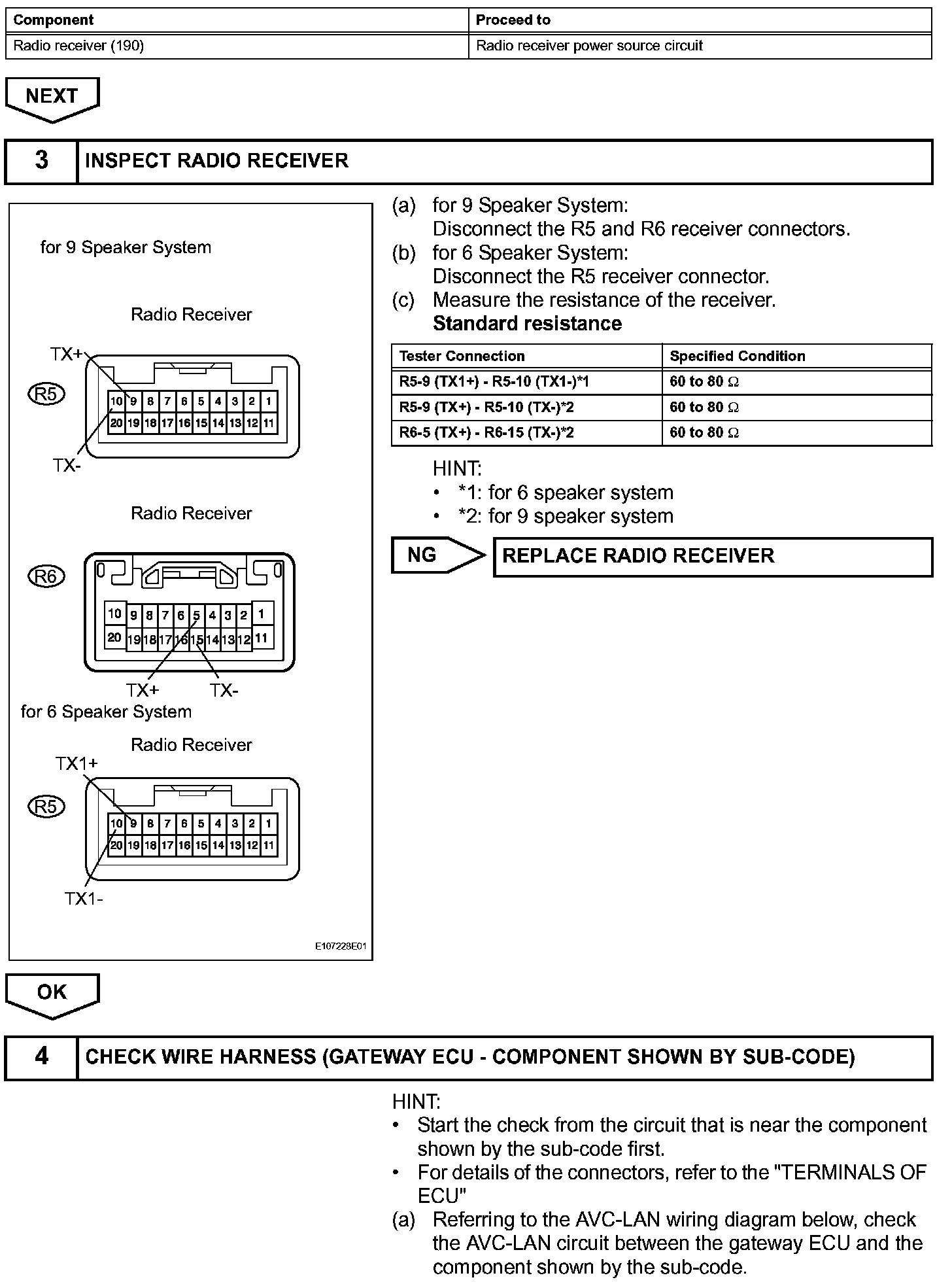

Step 2 (Continued)-4:

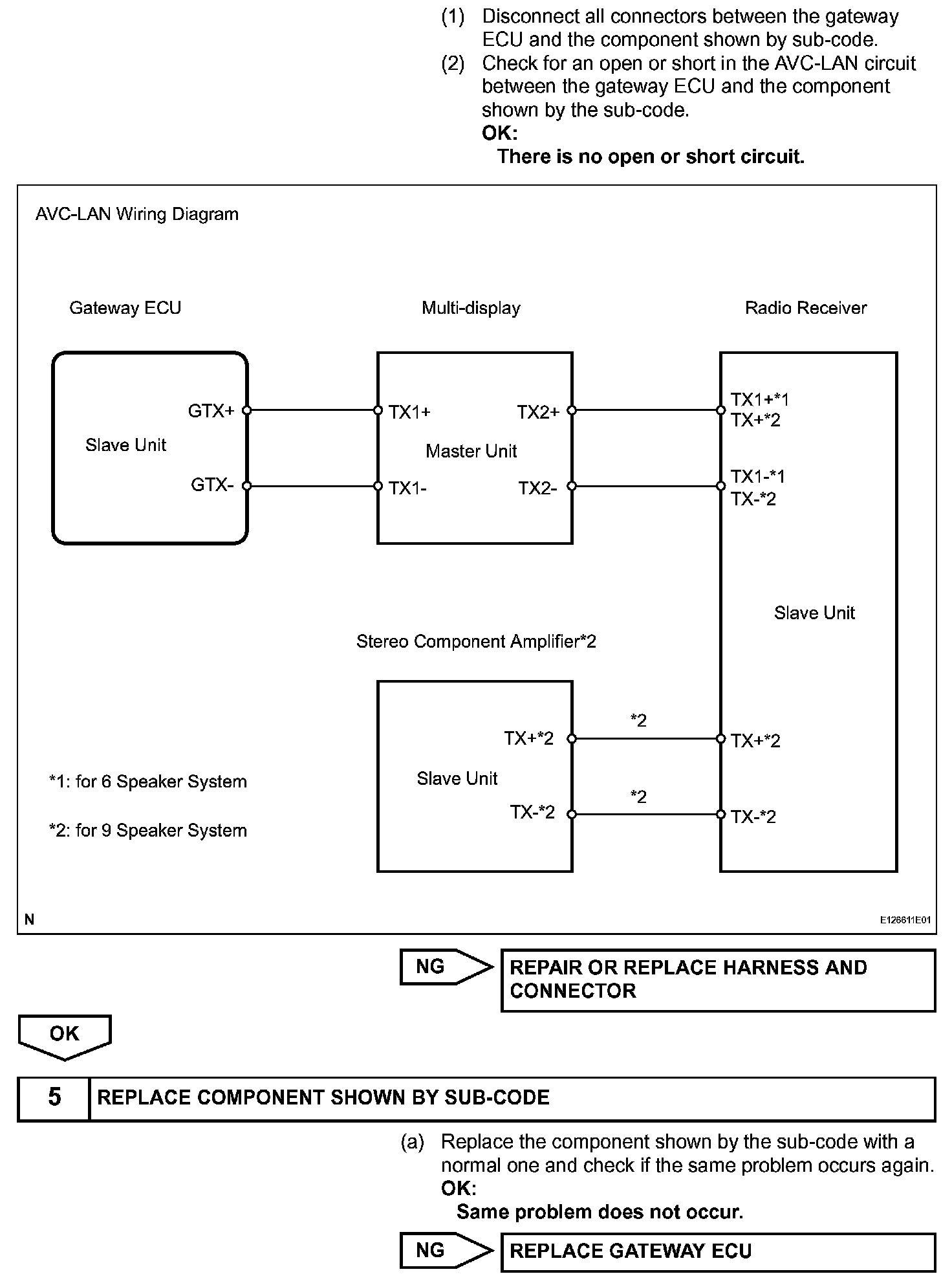

Step 4 (Continued)-5:

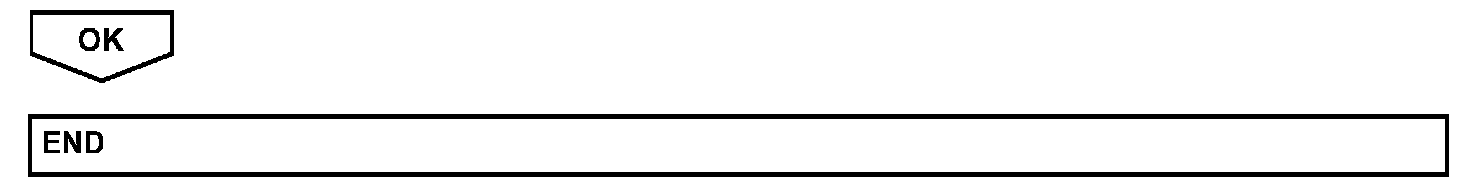

Step 5 (Continued):




INSPECTION PROCEDURE
