Engine Immobilizer System (W/O Smart Key System)

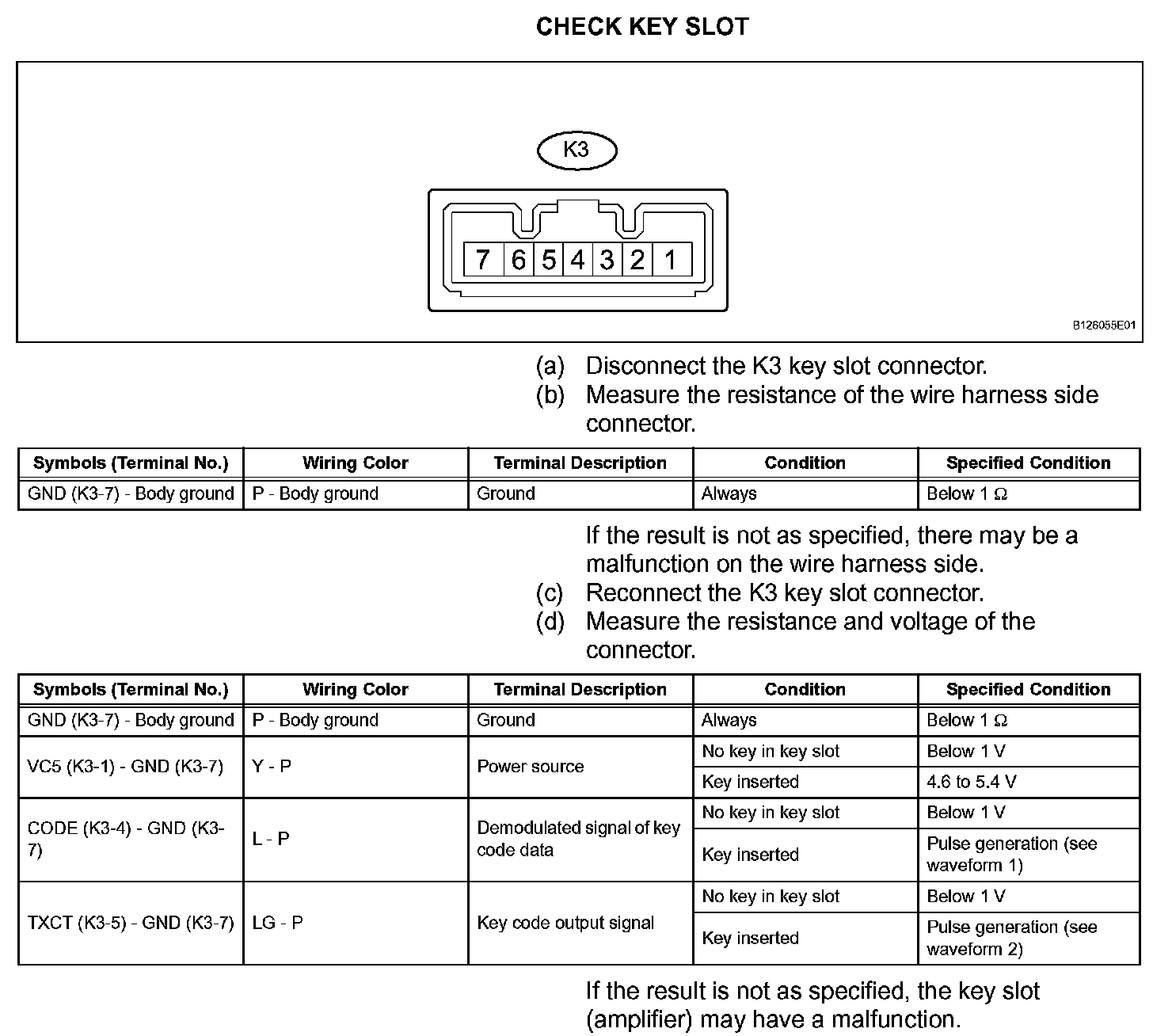

Terminals Of Control Module/Pinouts - Check Key Slot:

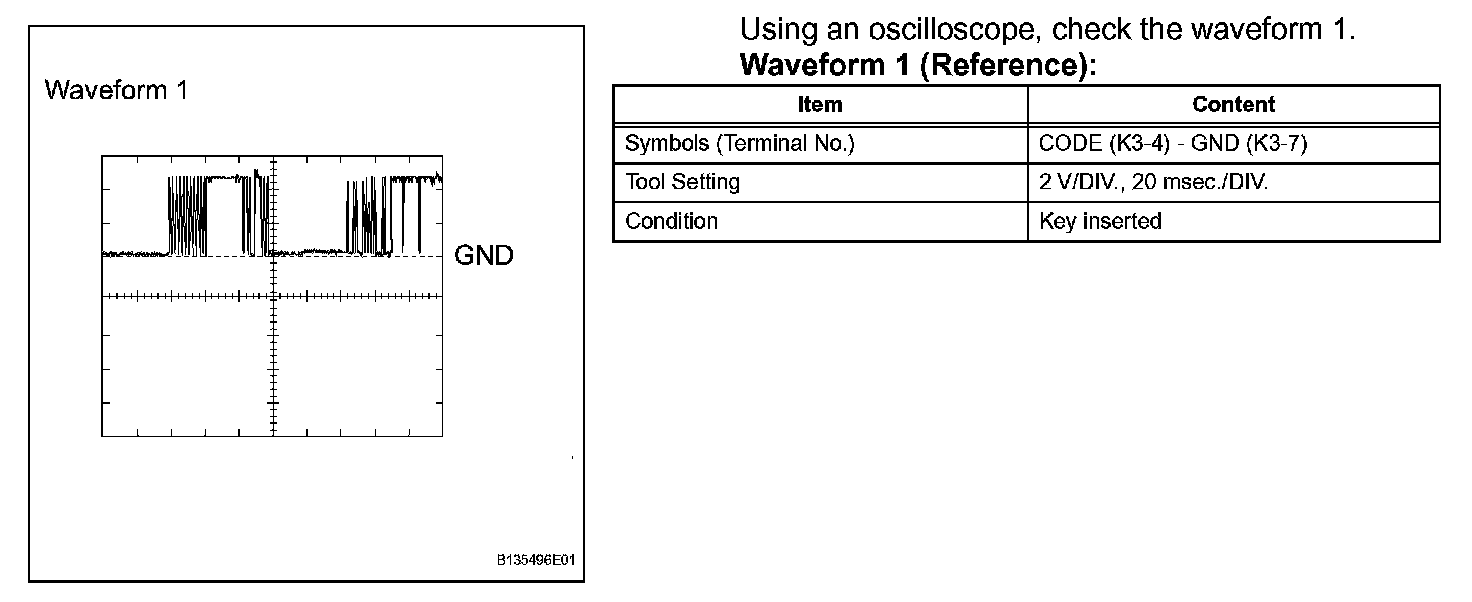

Check Key Slot - Oscilloscope Waveforms:

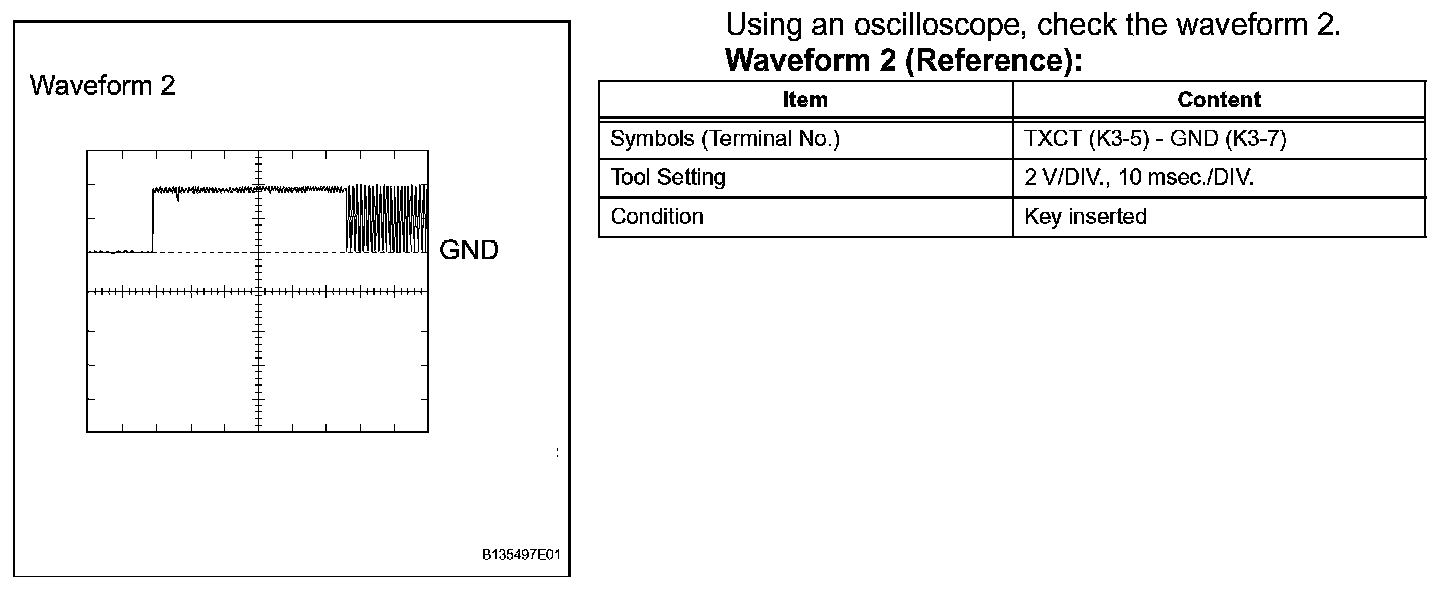

Check Key Slot - Oscilloscope Waveforms:



Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 1):

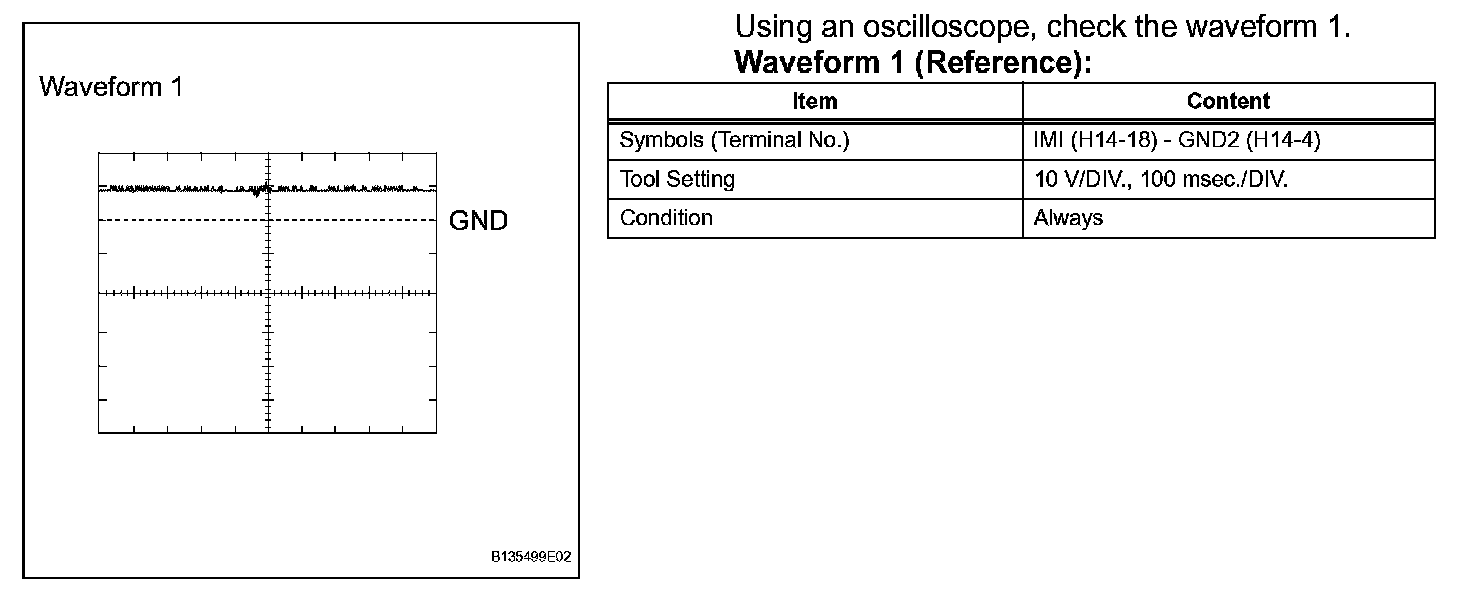

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 2):

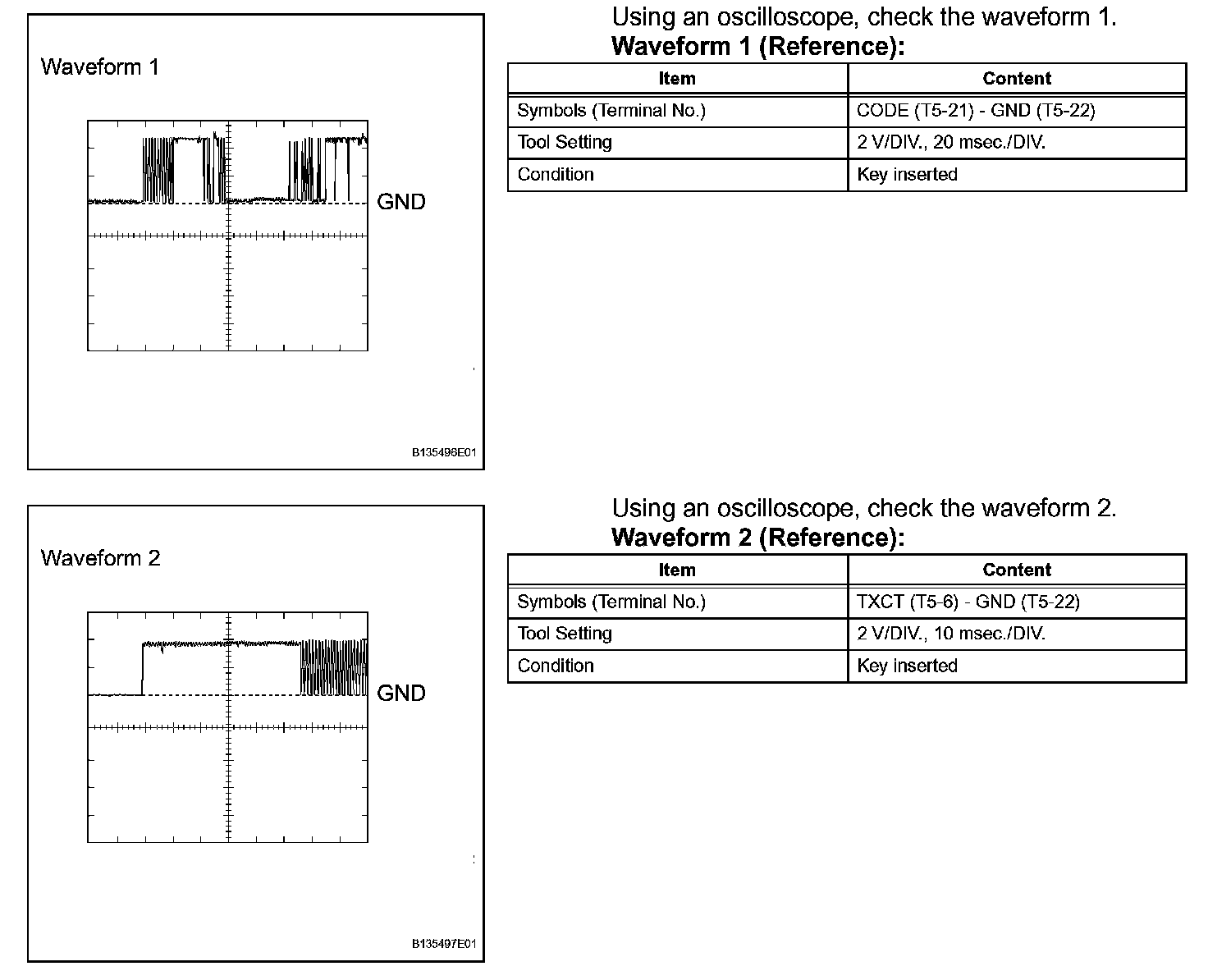

Check Transponder Key ECU - Oscilloscope Waveforms:



Check Transponder Key ECU - Oscilloscope Waveforms:

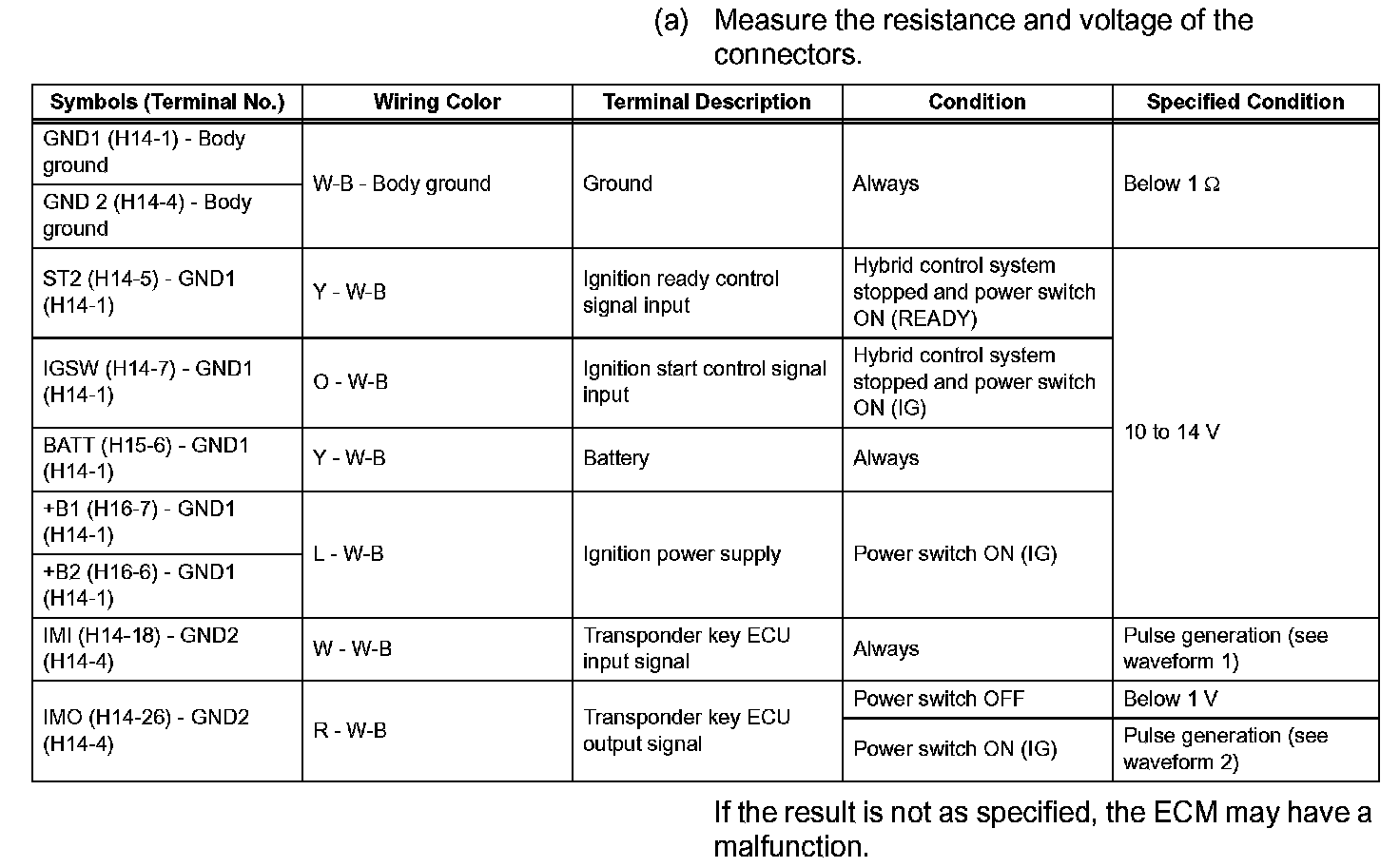

Terminals Of Control Module/Pinouts - Check Hybrid Vehicle Control ECU (Part 1):



Terminals Of Control Module/Pinouts - Check Hybrid Vehicle Control ECU (Part 2):

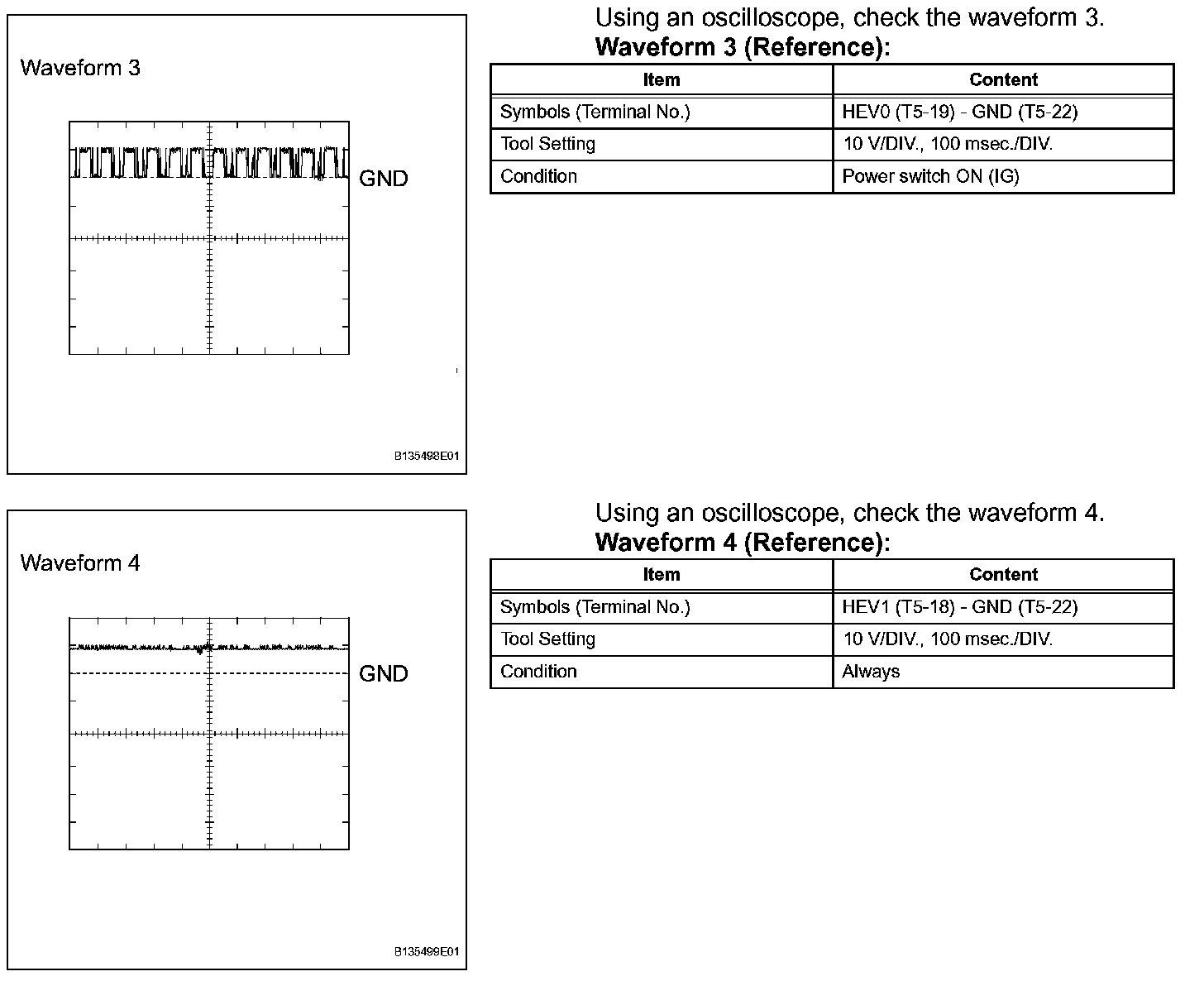

Oscilloscope Waveforms:

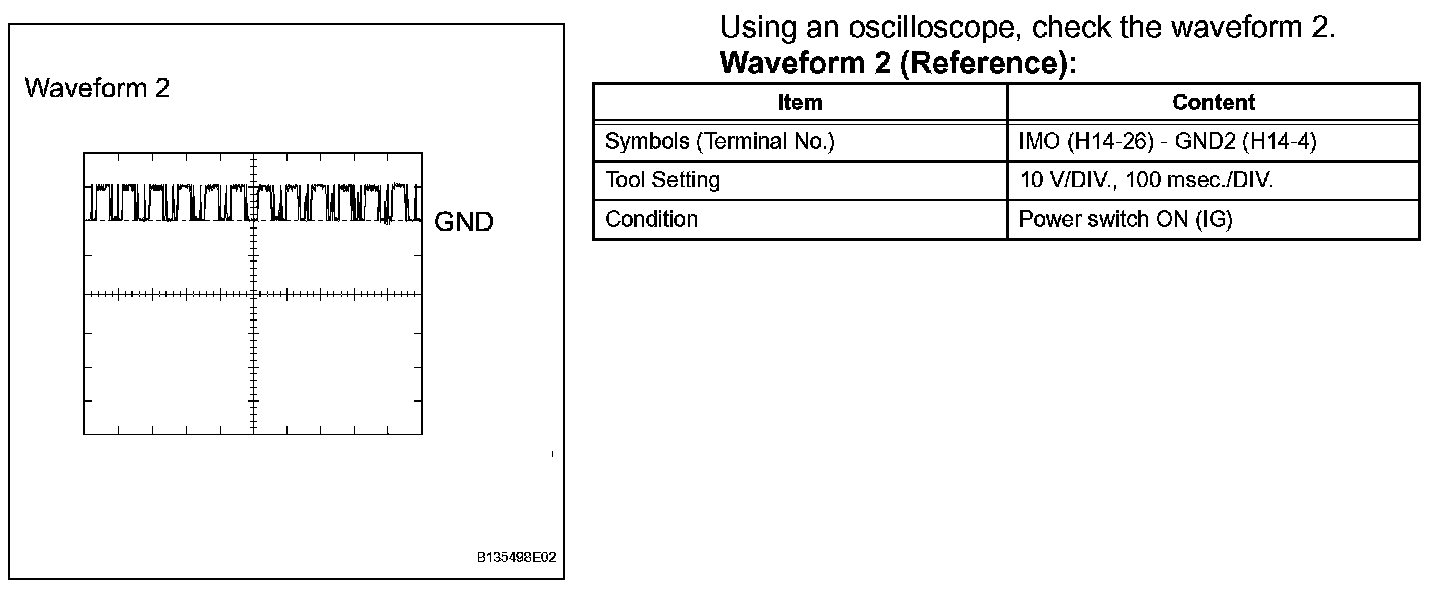

Oscilloscope Waveforms:
