Engine Immobilizer System (W/ Smart Key System)

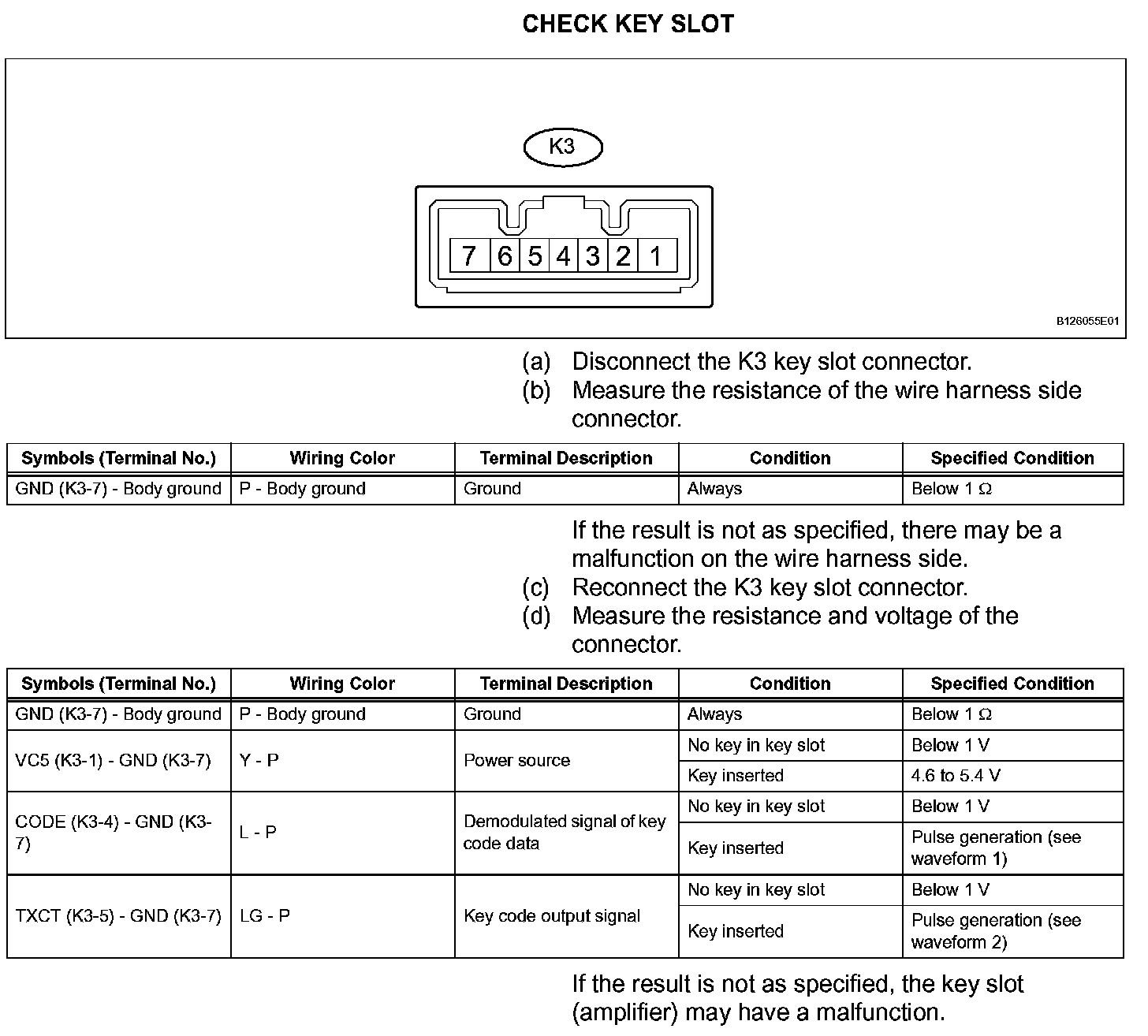

Terminals Of Control Module/Pinouts - Check Key Slot:

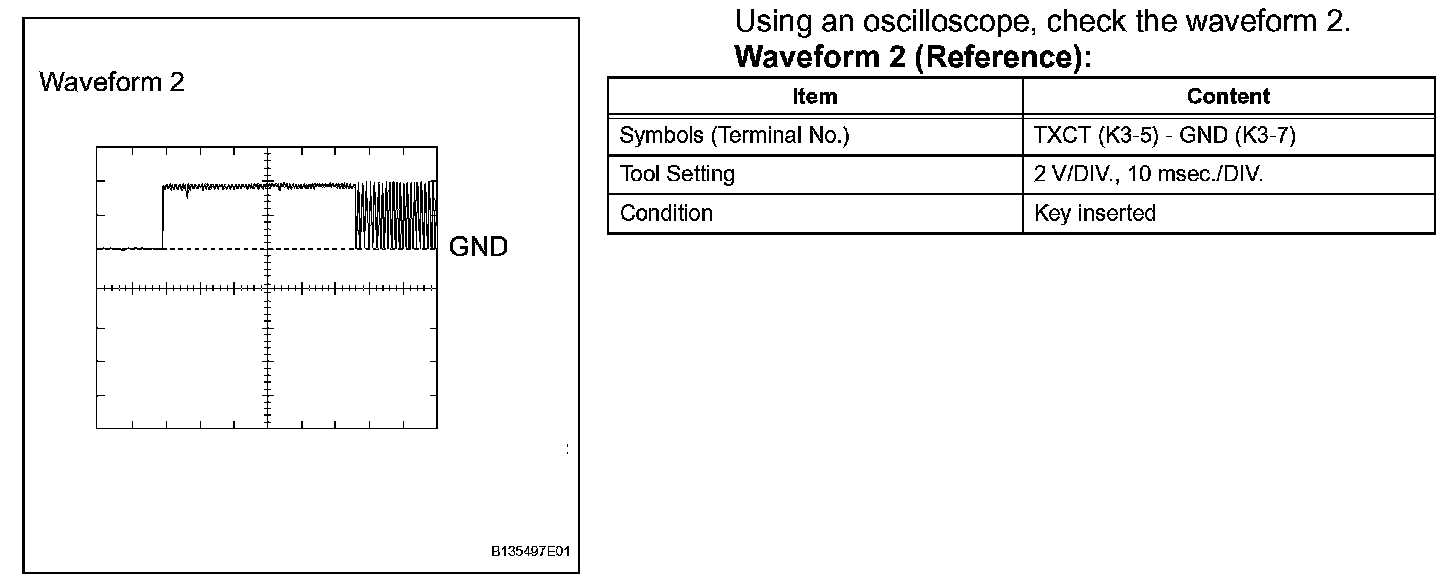

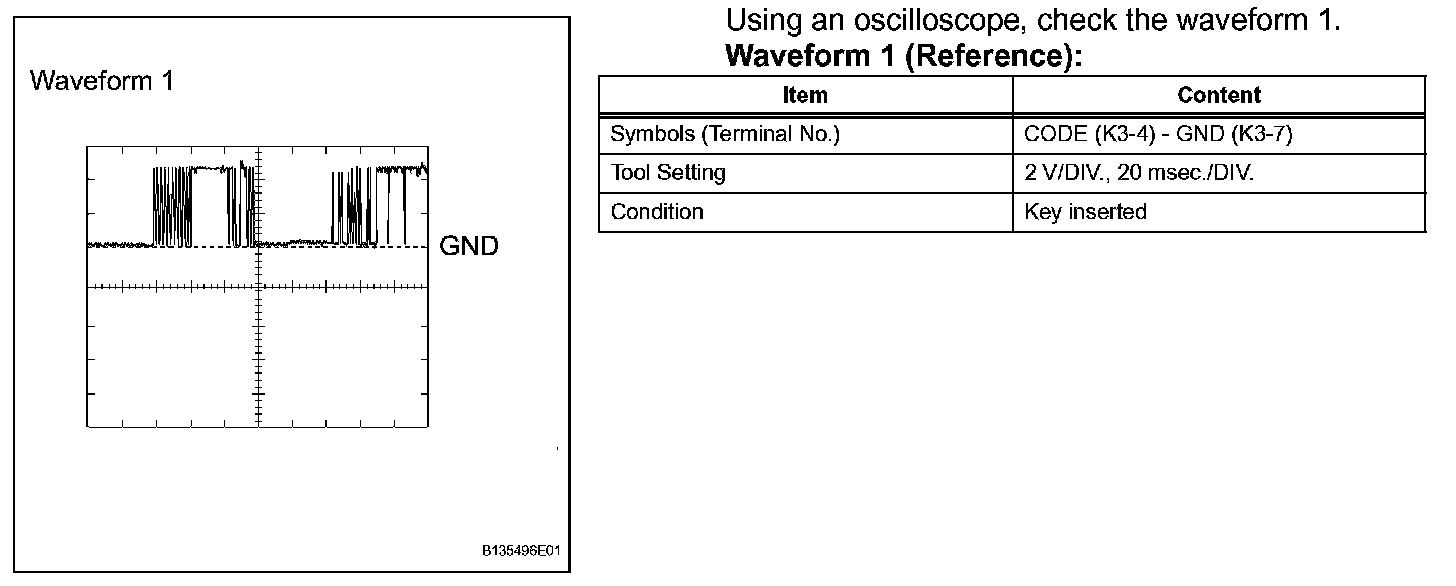

Check Key Slot - Oscilloscope Waveforms:

Check Key Slot - Oscilloscope Waveforms:

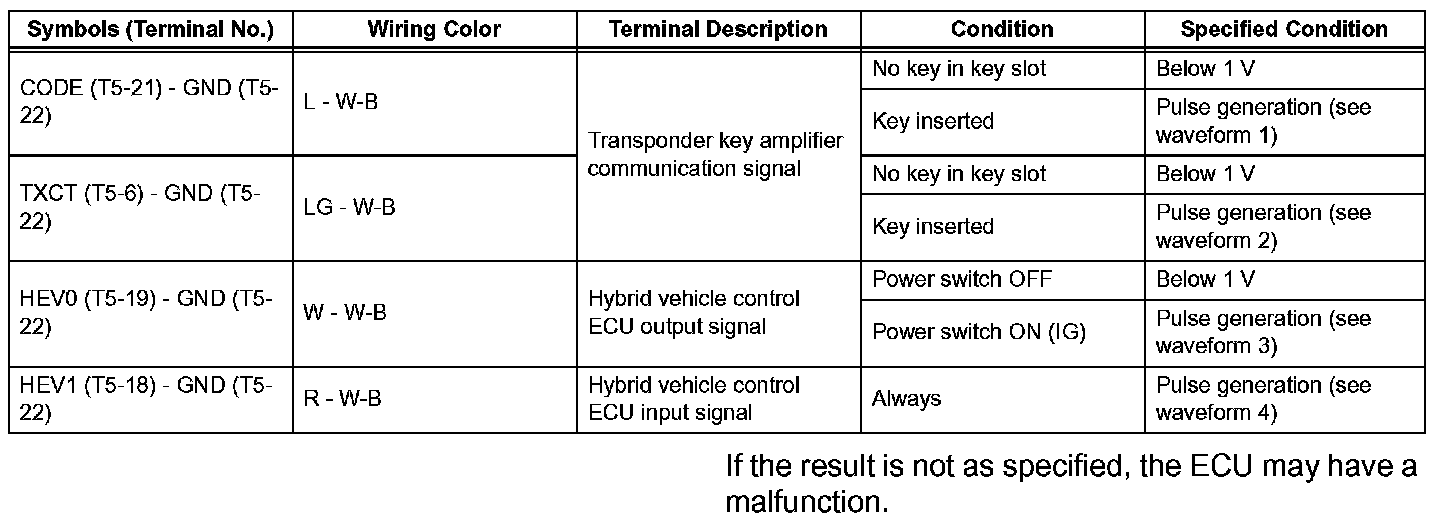

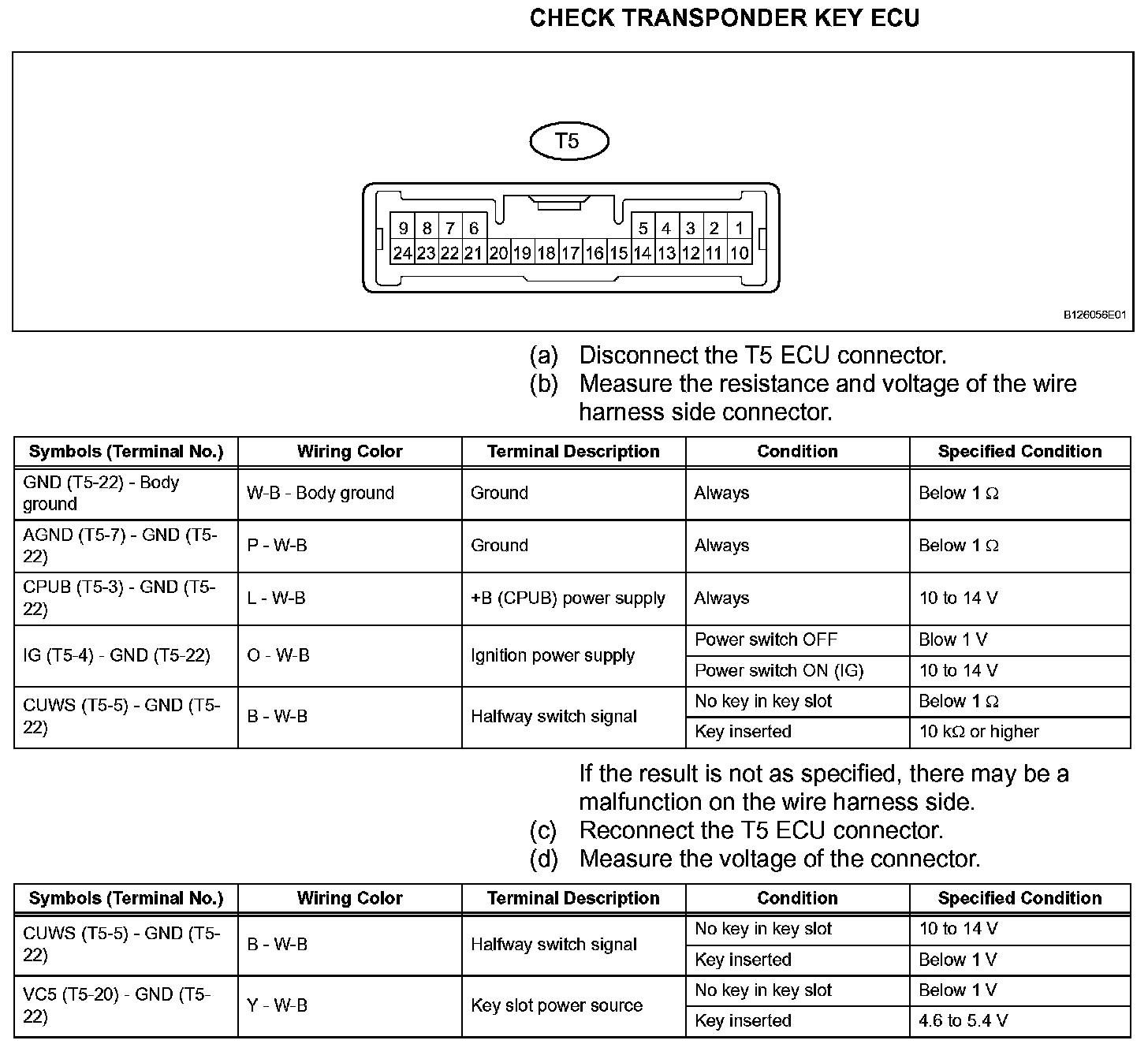

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 2):

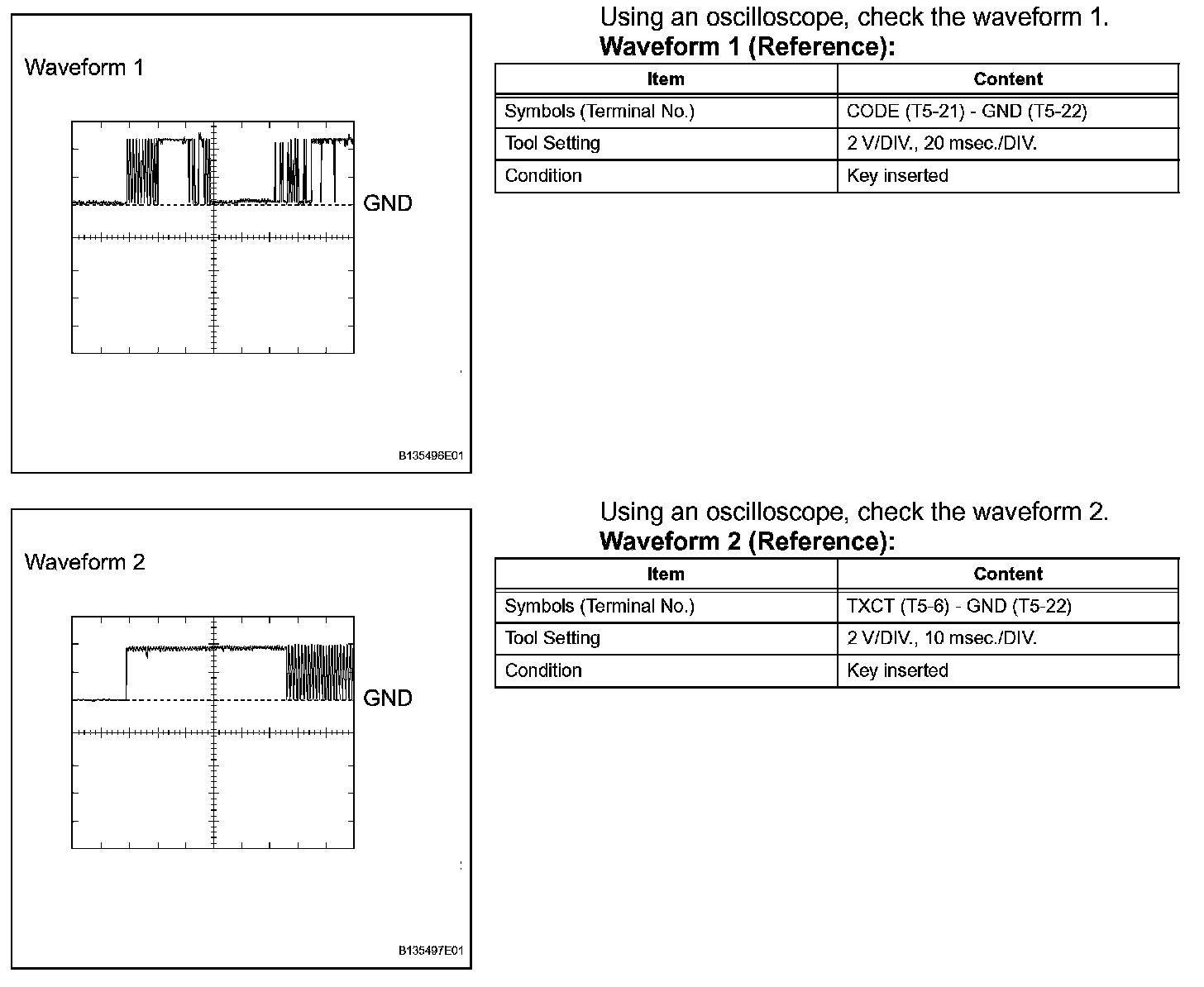

Check Transponder Key ECU - Oscilloscope Waveforms:

Check Transponder Key ECU - Oscilloscope Waveforms:

Terminals Of Control Module/Pinouts - Check Certification ECU:

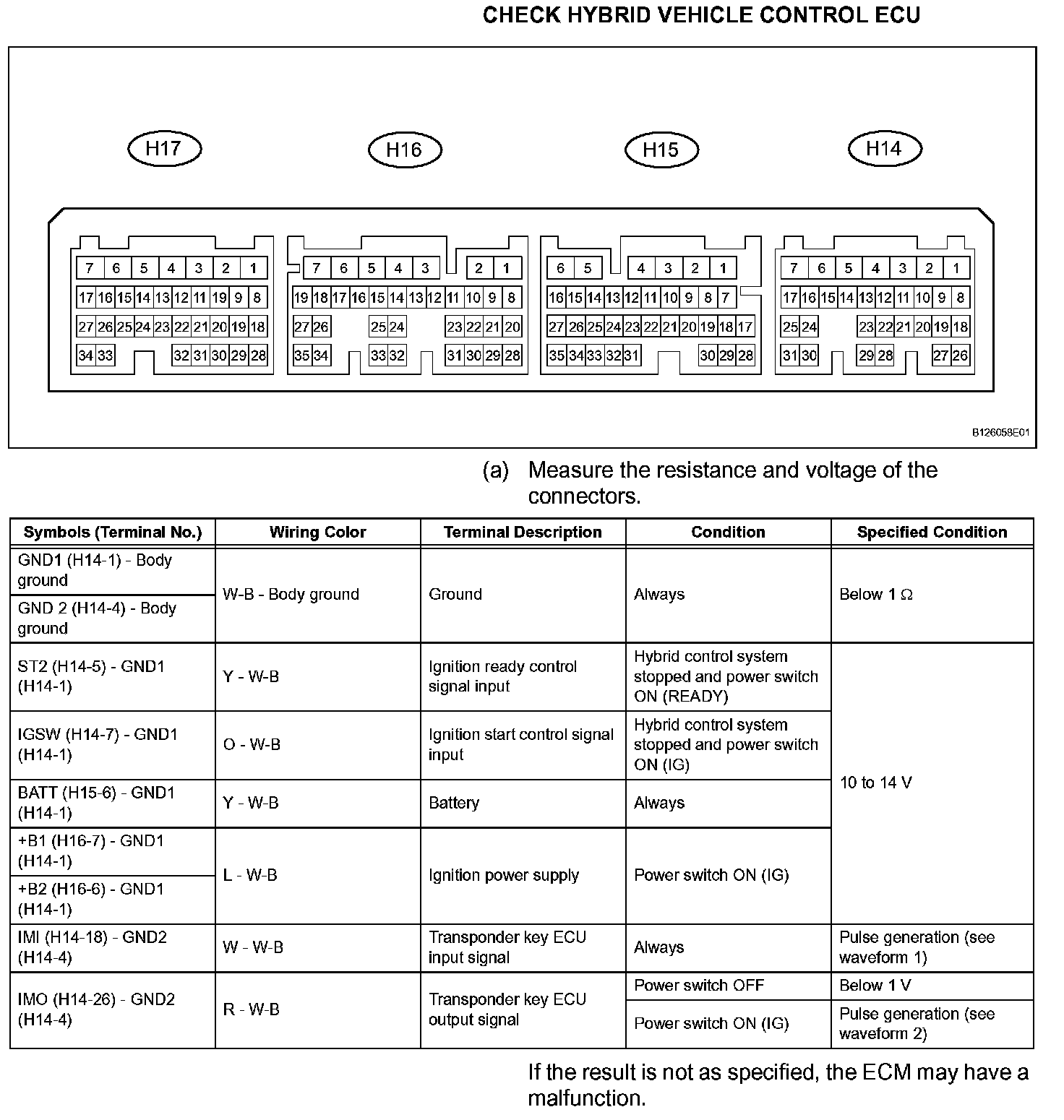

Terminals Of Control Module/Pinouts - Check Hybrid Vehicle ECU:

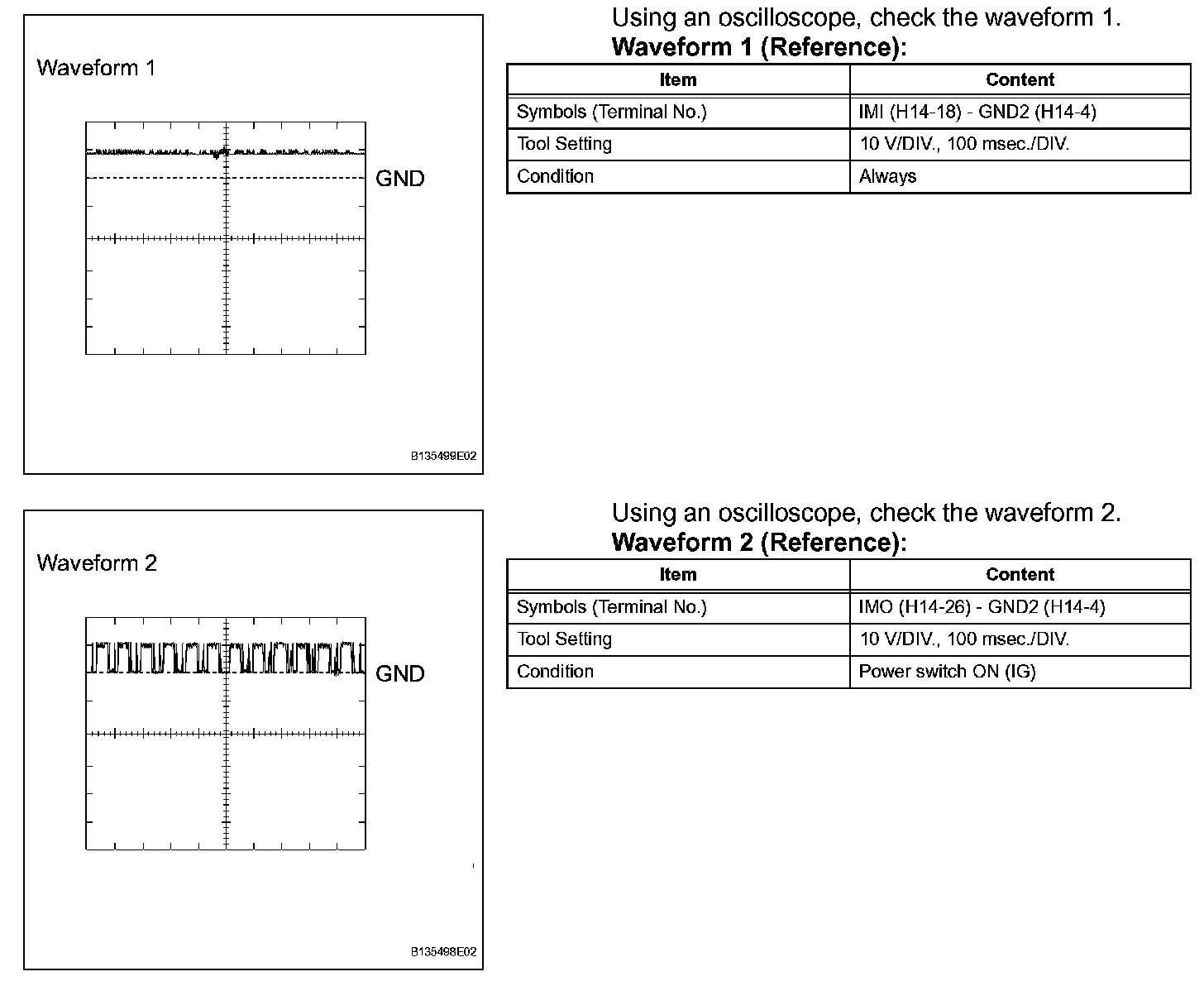

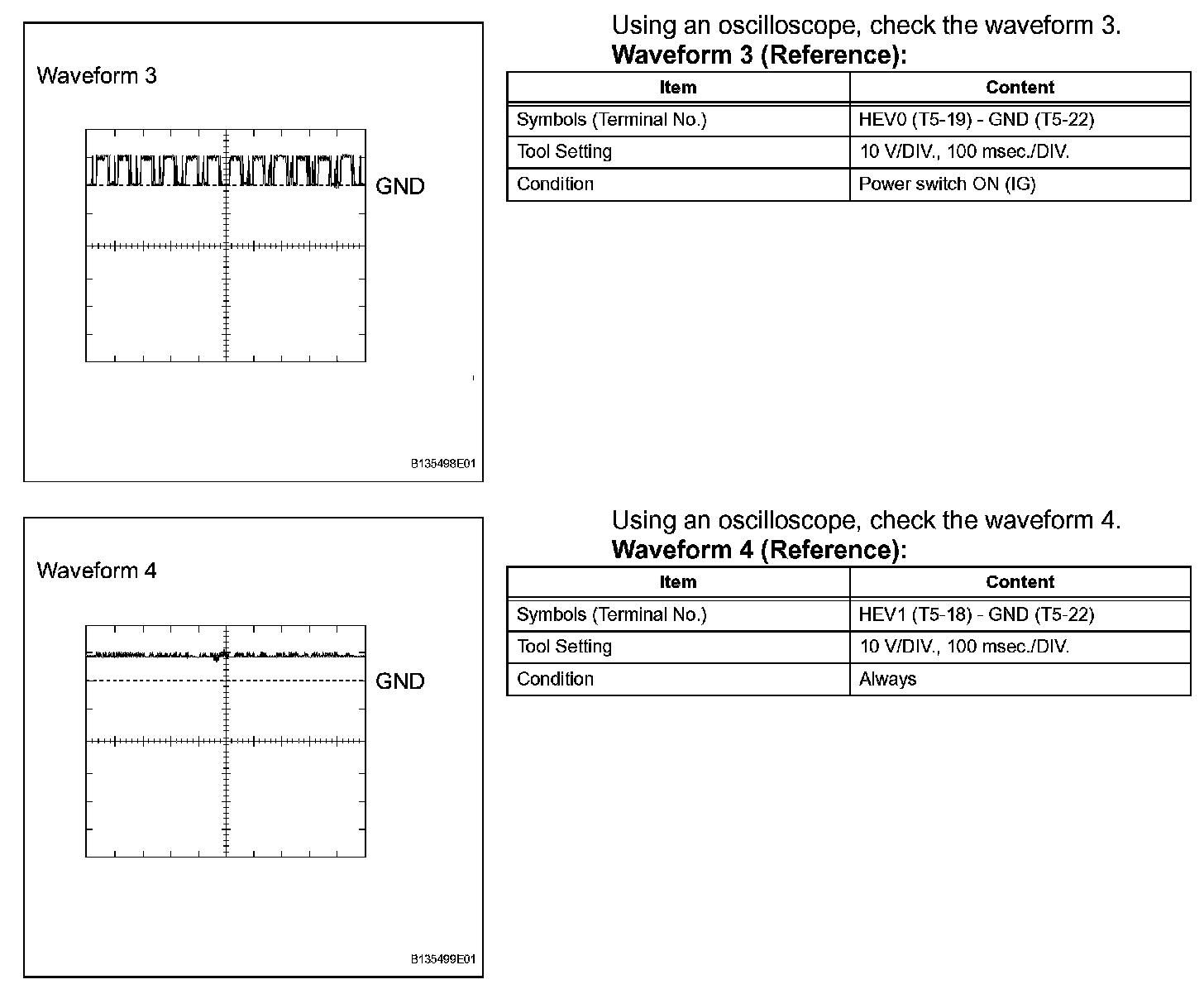

Check Hybrid Vehicle ECU - Oscilloscope Waveforms:
