Ignition Switch Circuit

Ignition Switch Circuit

DESCRIPTION
When turning the power switch ON (IG), battery positive voltage is applied to terminal SIG of the main body ECU.

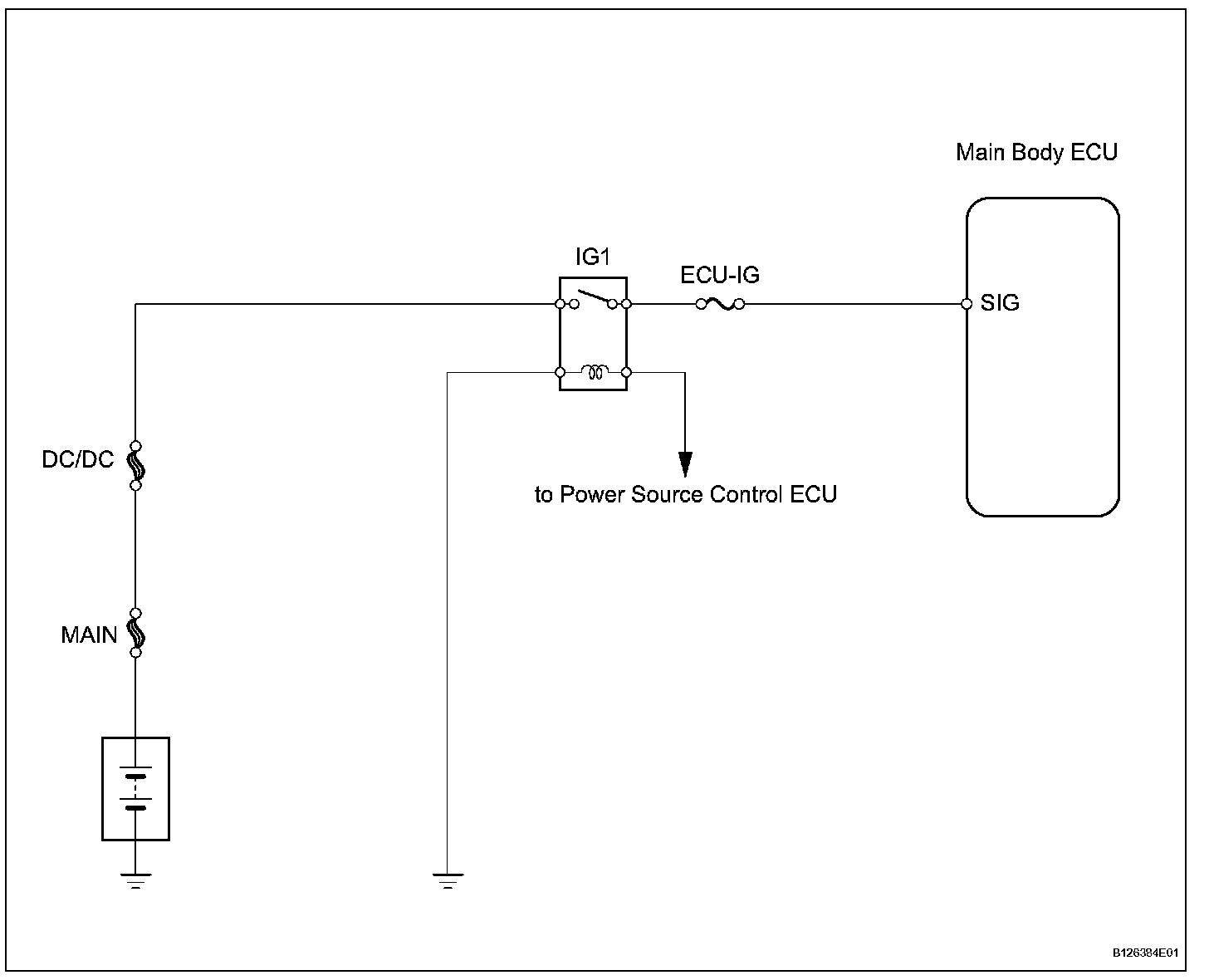

Wiring Diagram:

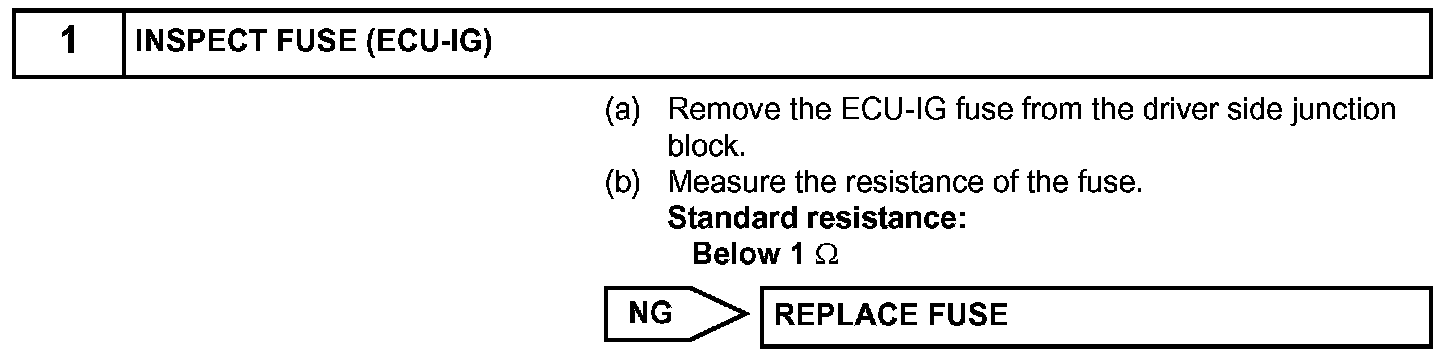

Step 1:

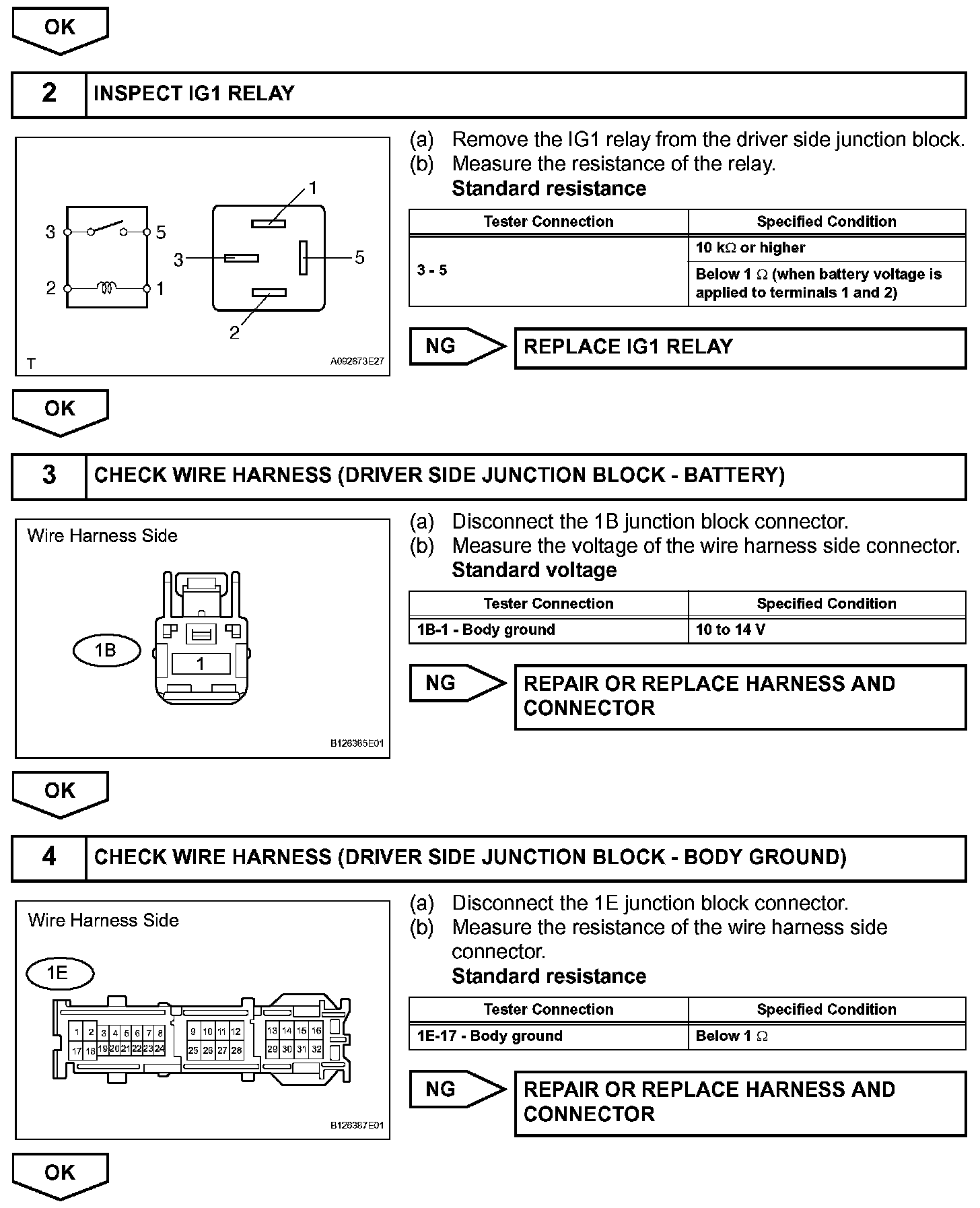

Step 1(Continued)-4:

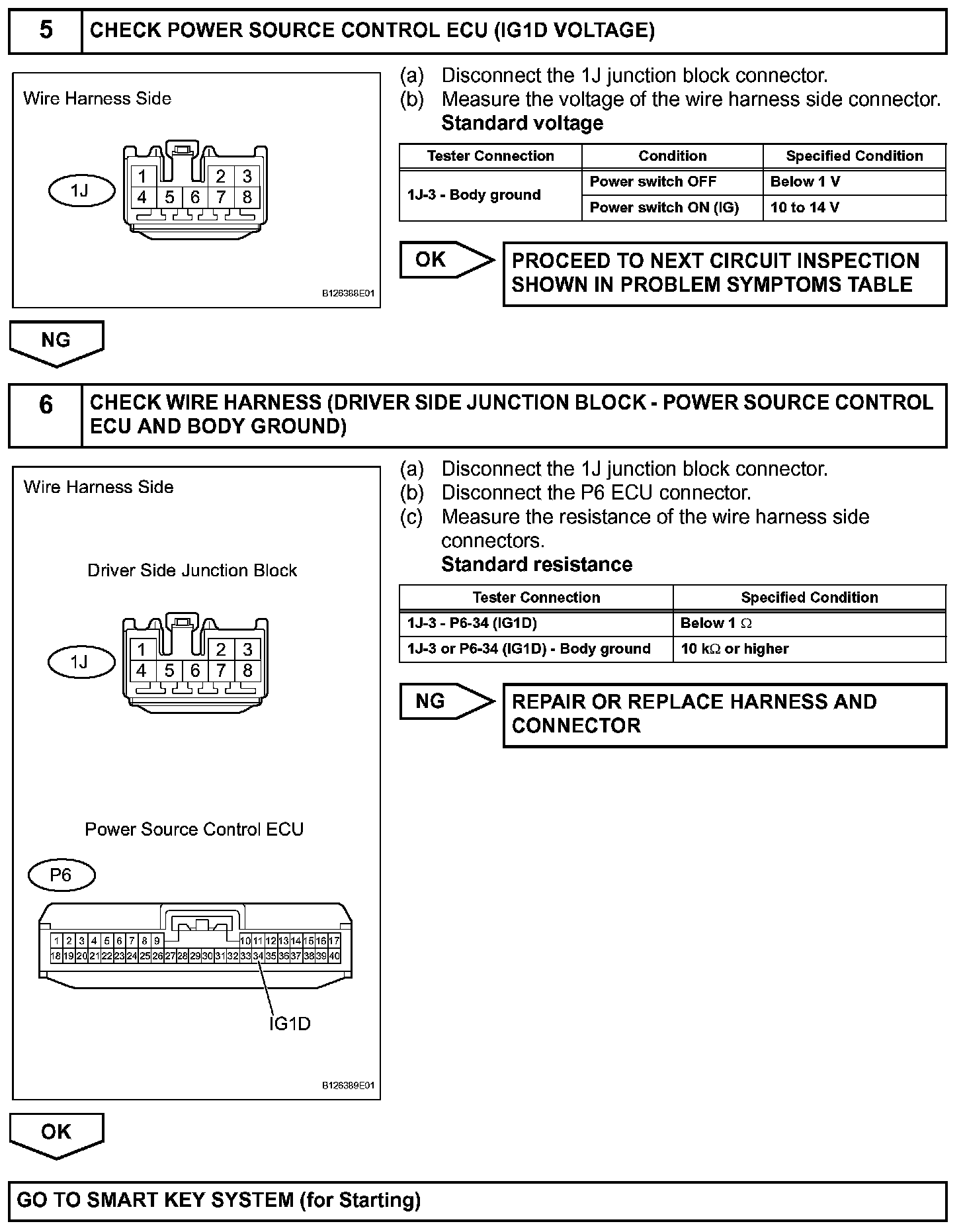

Step 5:

INSPECTION PROCEDURE
