Engine Immobilizer System (W/O Smart Key System)

Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU.

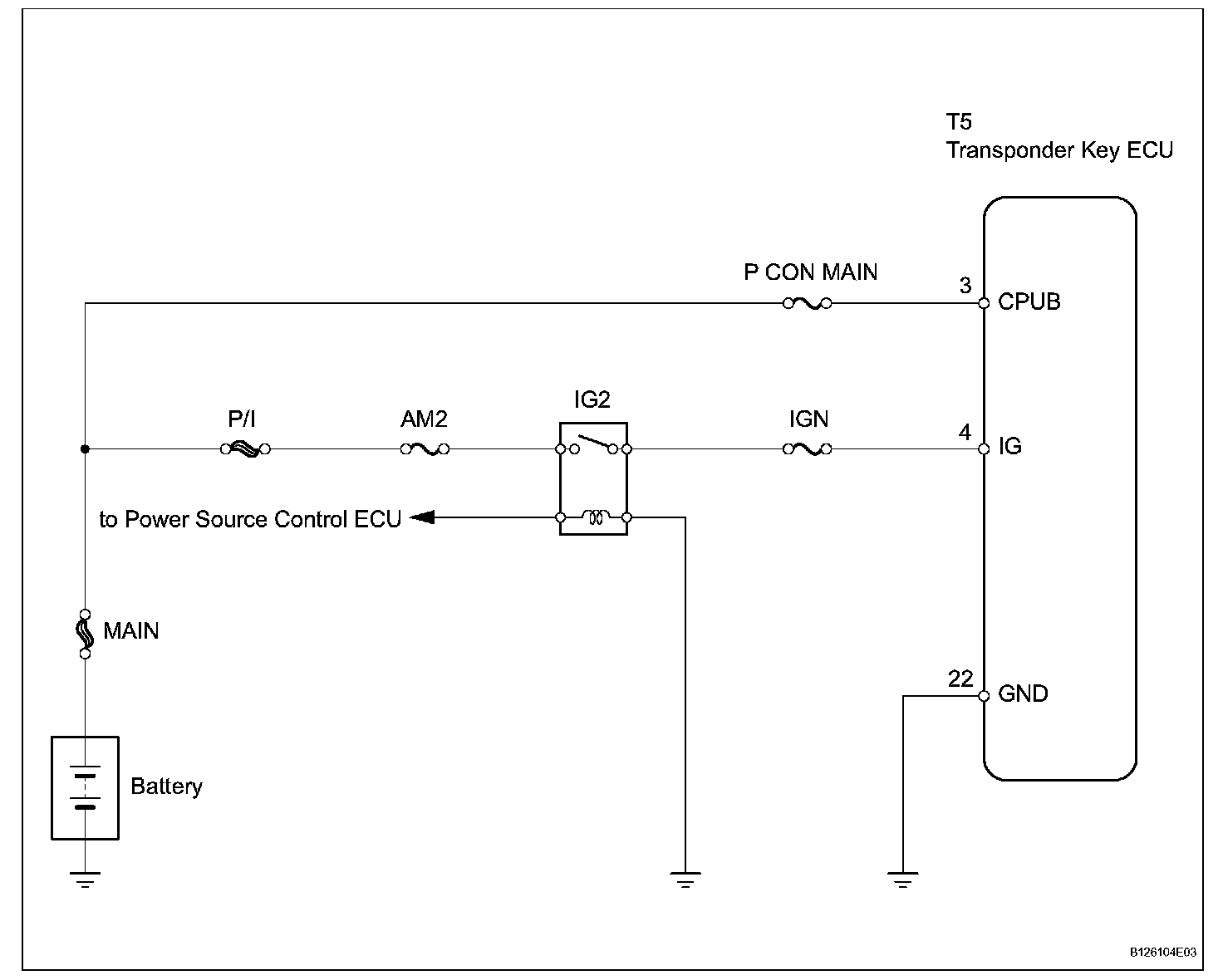

Wiring Diagram:

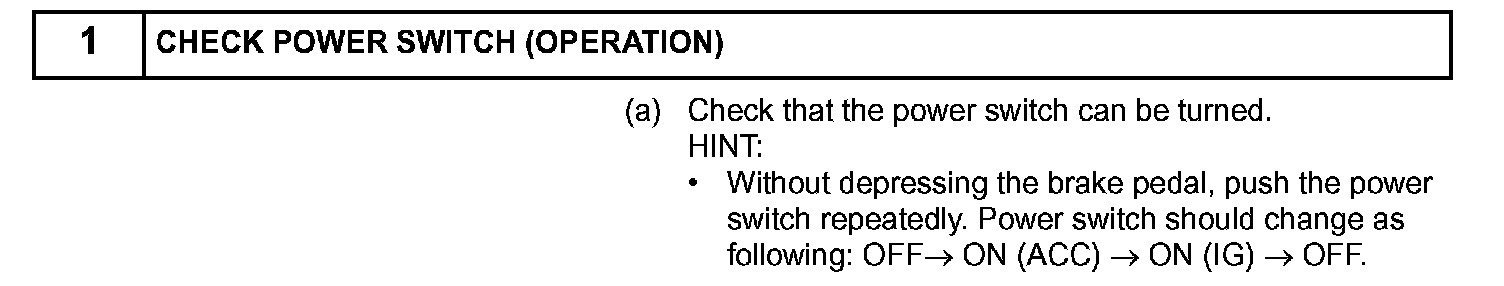

Step 1:

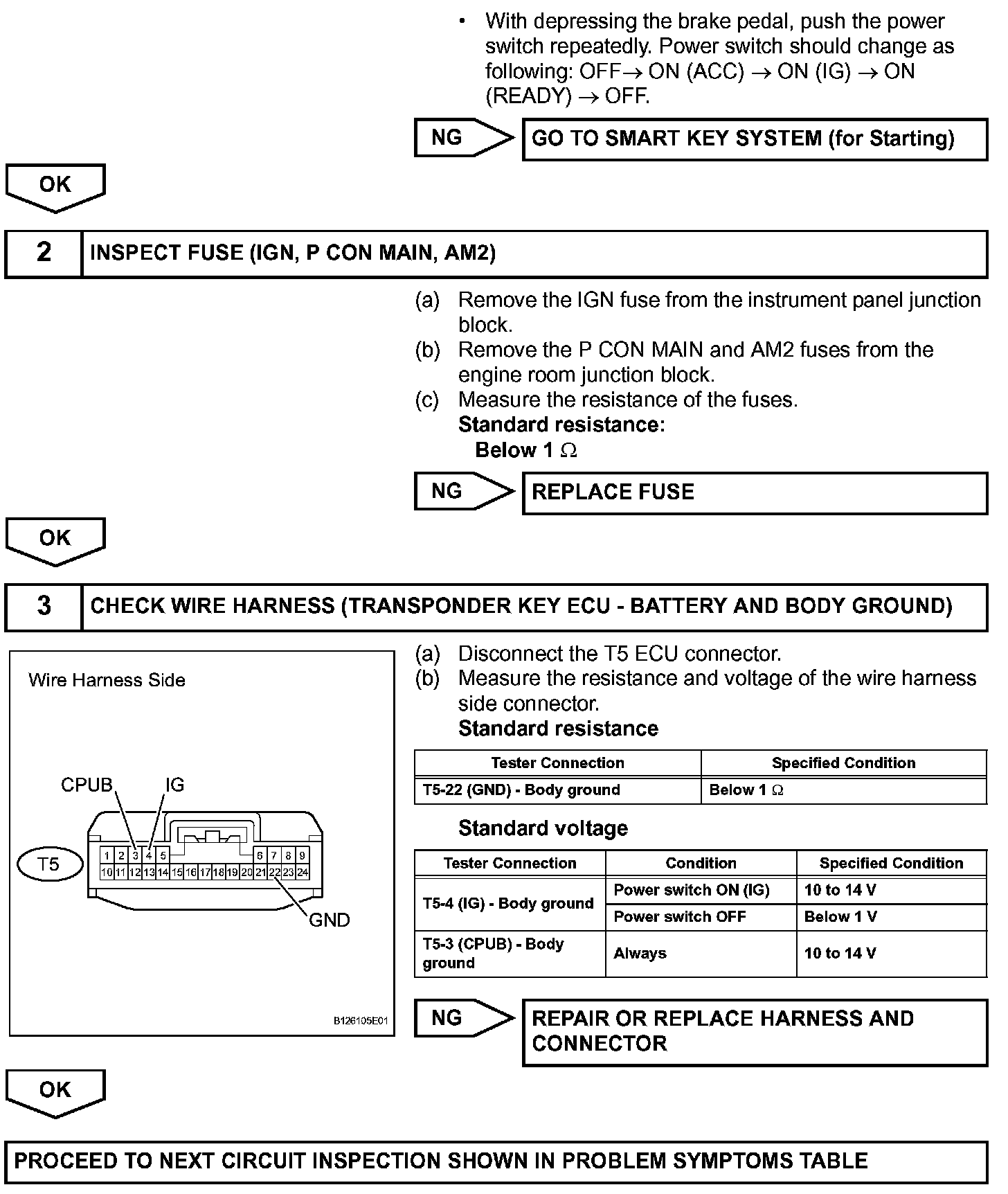

Step 1 (Continued)-3:

INSPECTION PROCEDURE
