Wireless Door Lock Control System (W/ Smart Entry System)

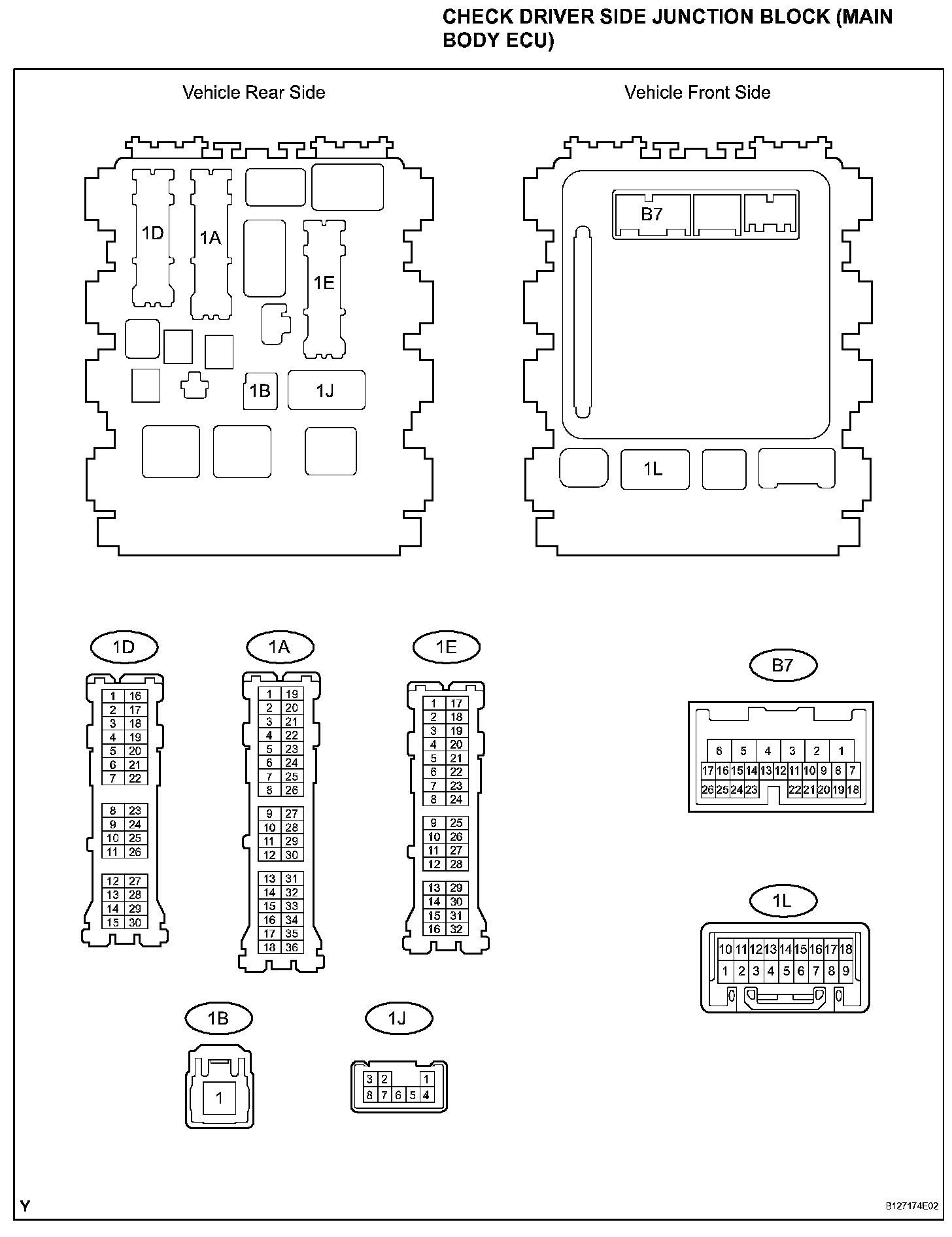

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 1):

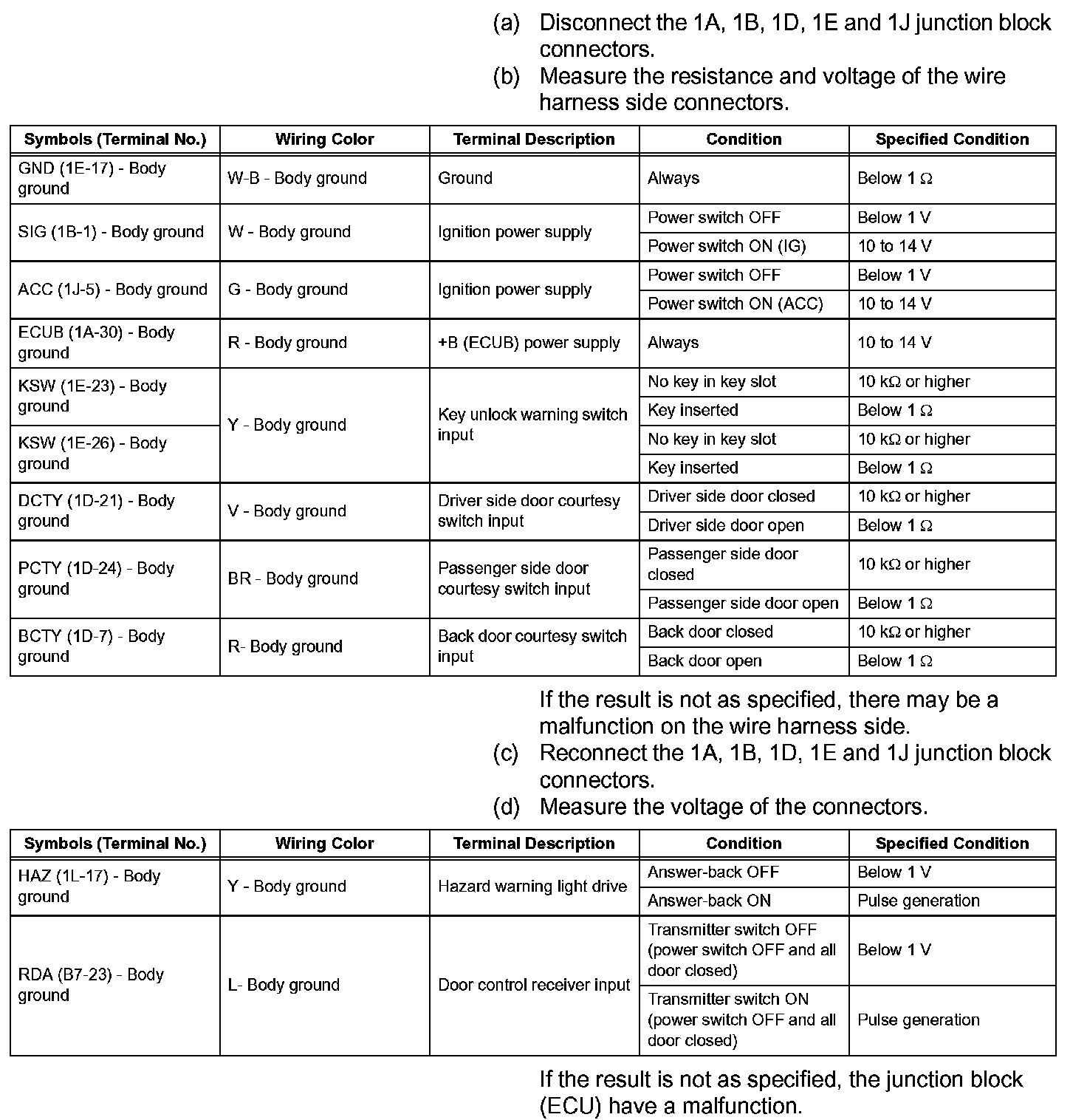

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 2):



Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

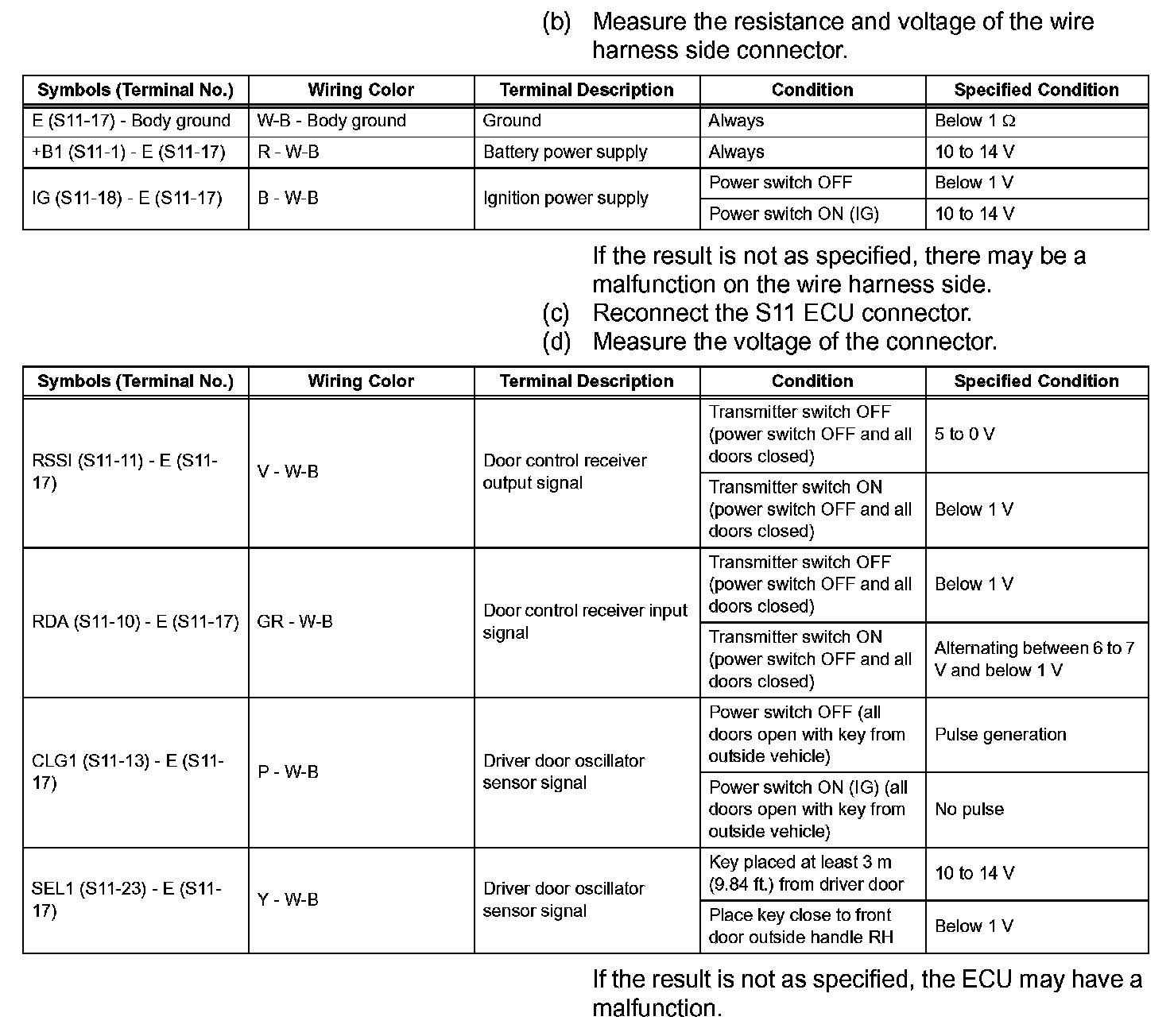

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):
