Key Reminder Warning System

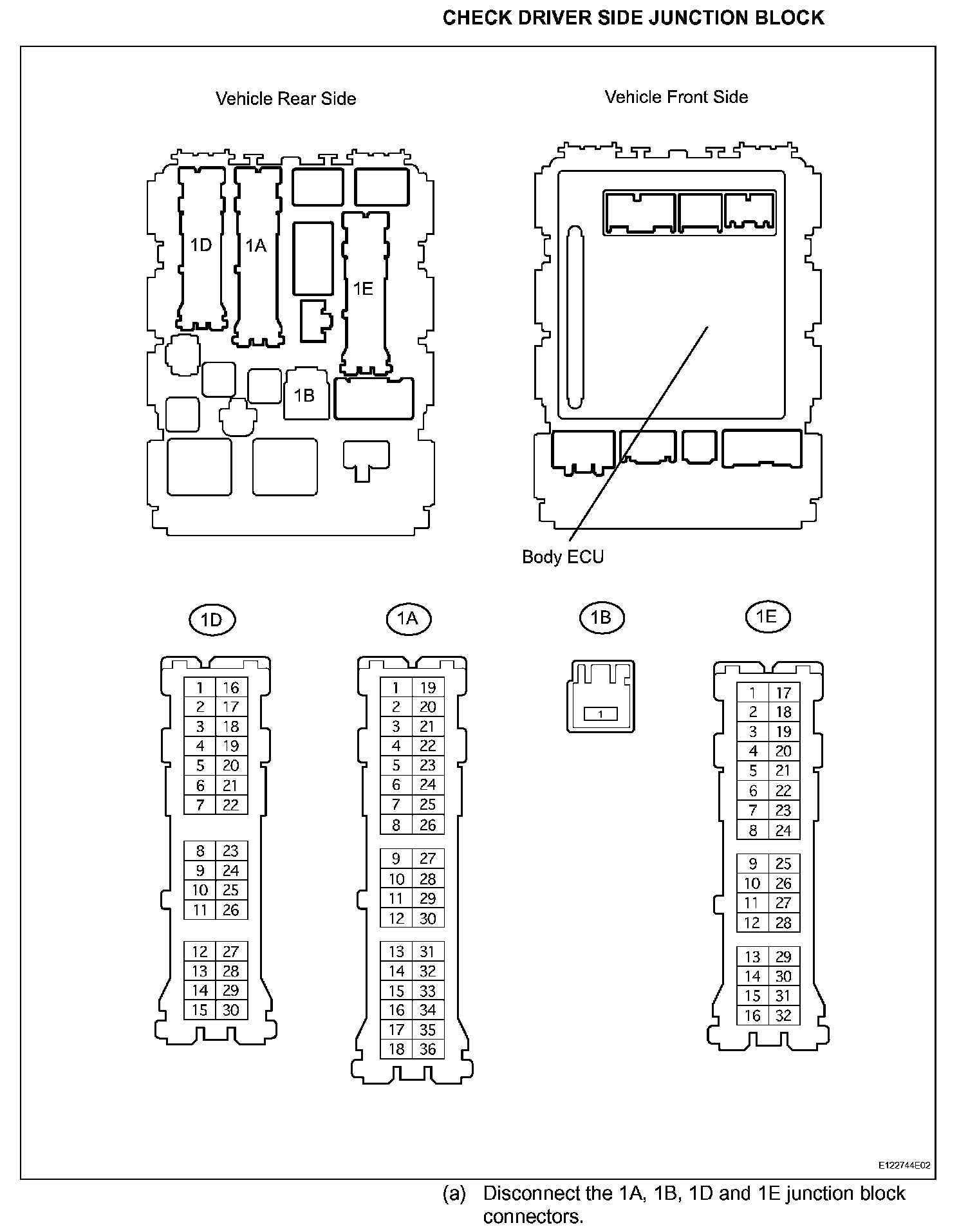

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Part 1):

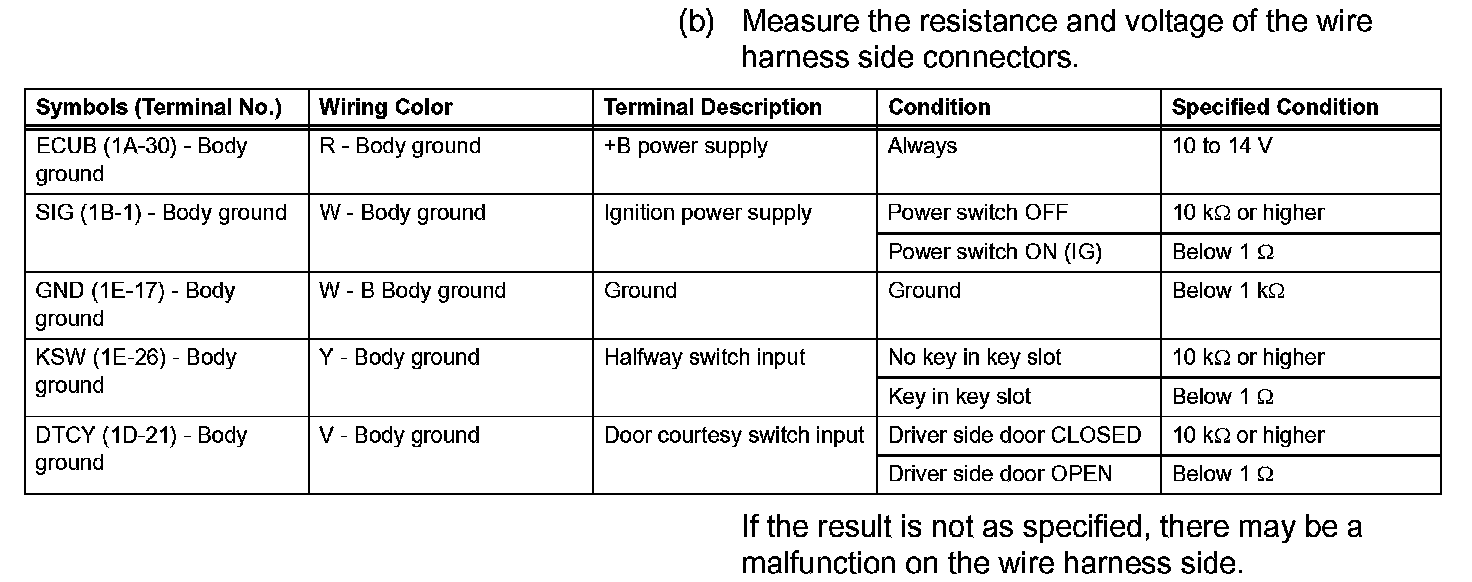

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Part 2):

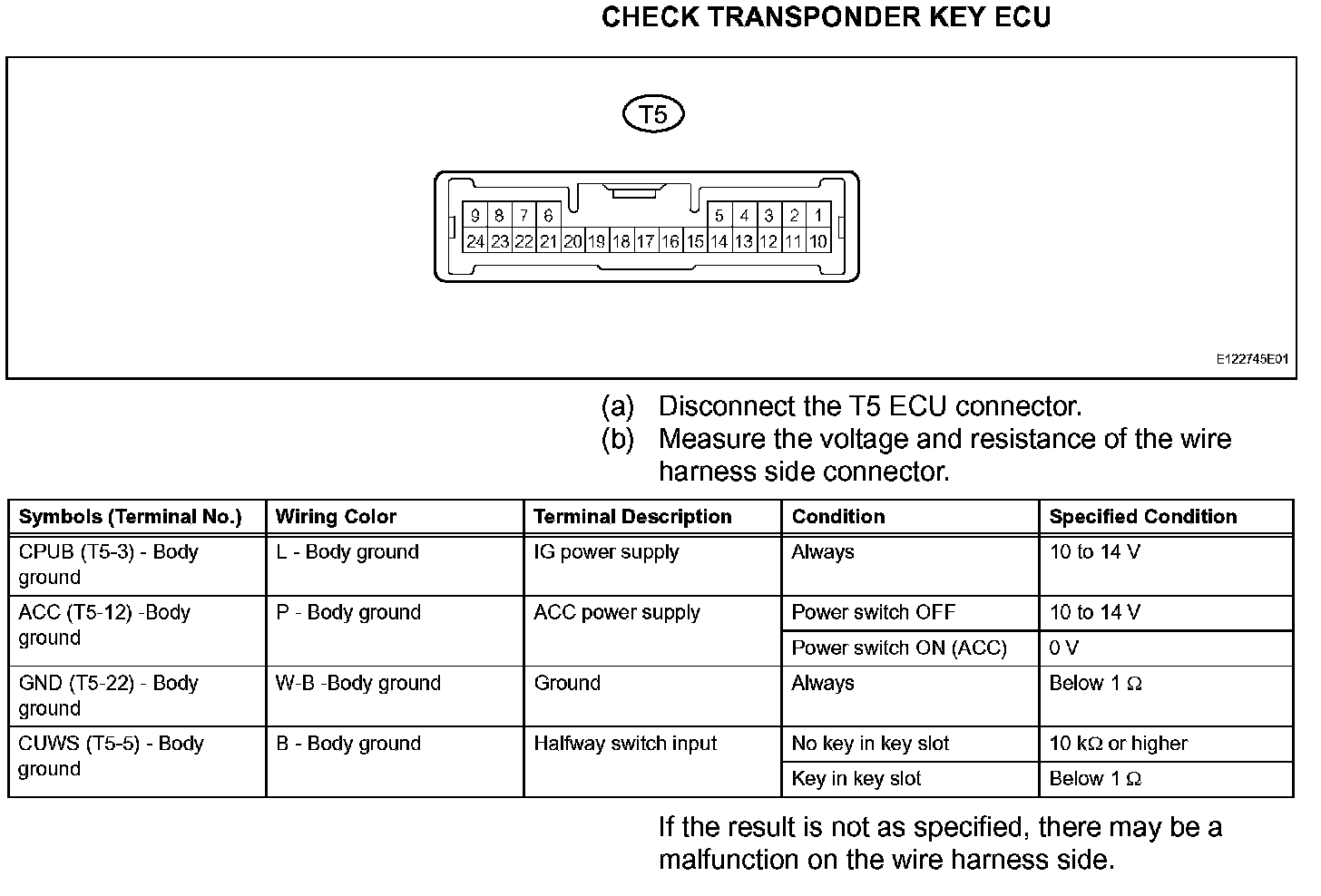

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:
