Key Cancel Switch

INSPECTION

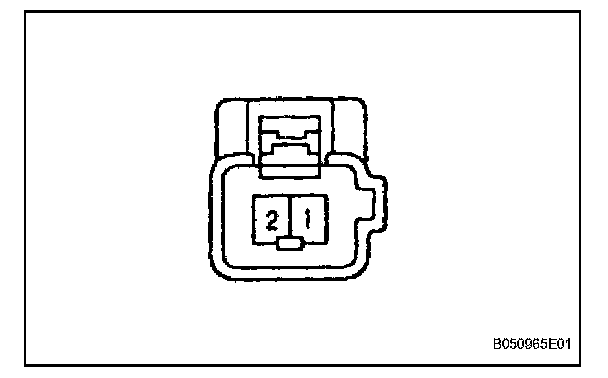

1. INSPECT KEY CANCEL SWITCH ASSEMBLY

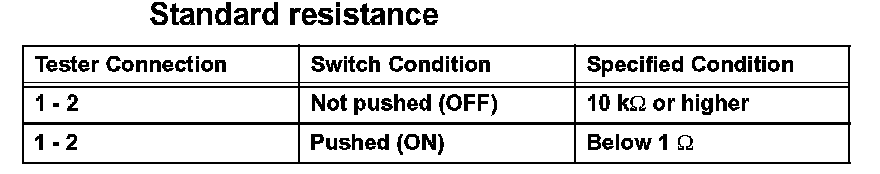

a. Measure the resistance of the switch.




If the result is not as specified, replace the switch.
