Accessory Control Display: Service and Repair

Multi-Display:

MULTI-DISPLAY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

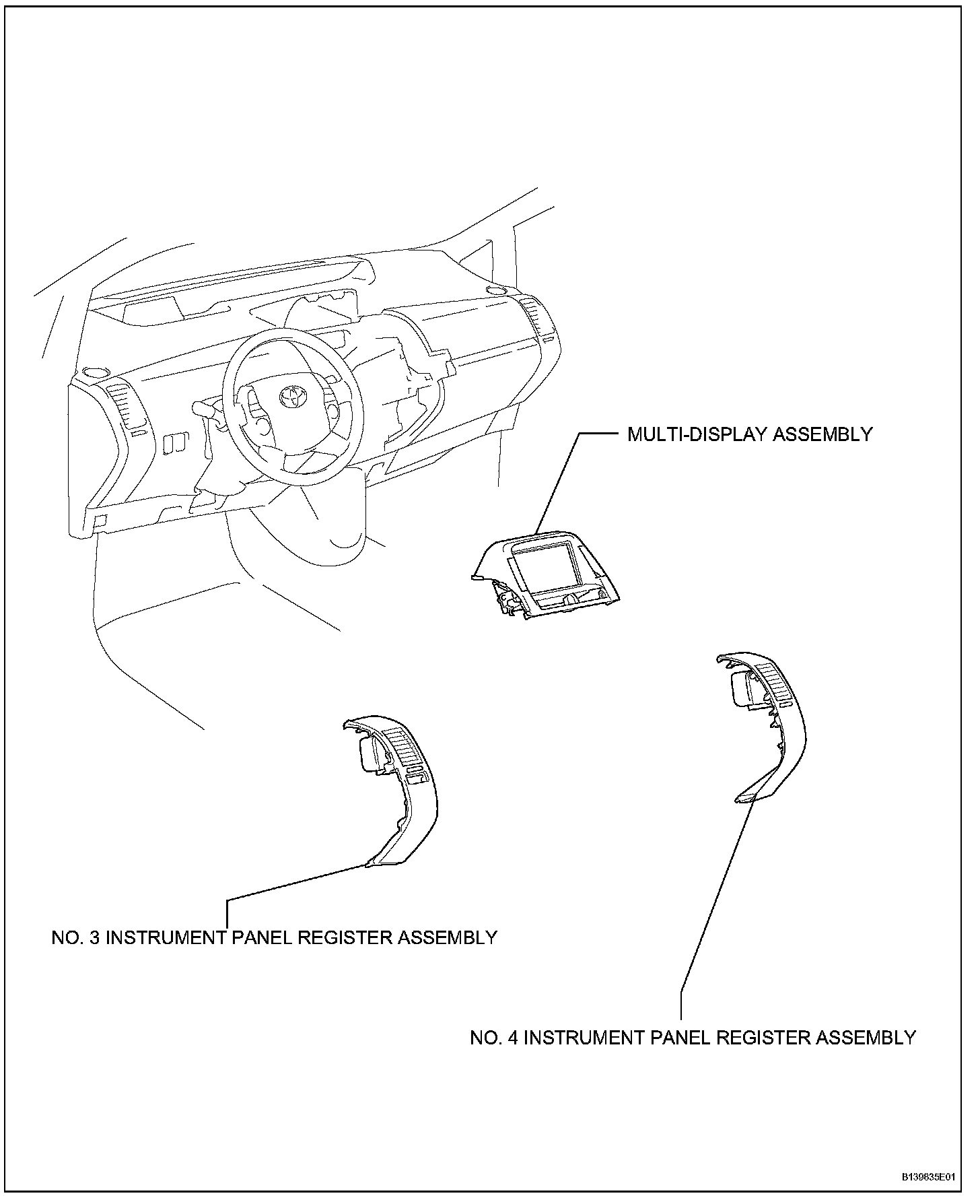

2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
3. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

4. REMOVE MULTI-DISPLAY ASSEMBLY

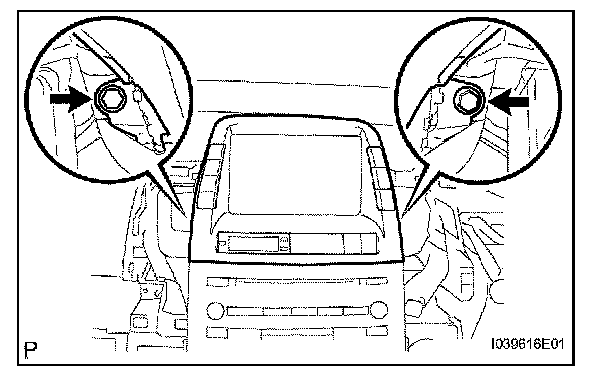

a. Remove the 2 bolts.
b. Disconnect the connector and remove the multi-display.

INSTALLATION

1. INSTALL MULTI-DISPLAY ASSEMBLY




a. Connect the connector and install the multi-display.

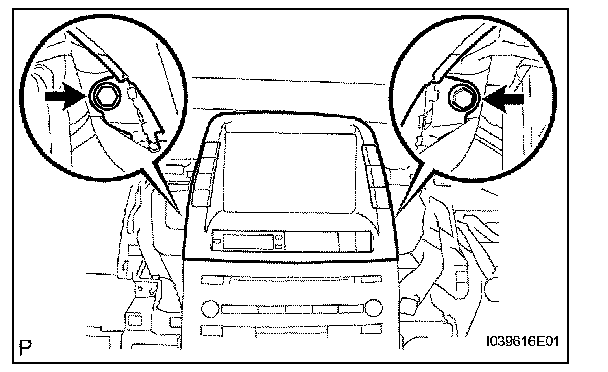

b. Install the 2 bolts.

2. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
3. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
