Occupant Classification System

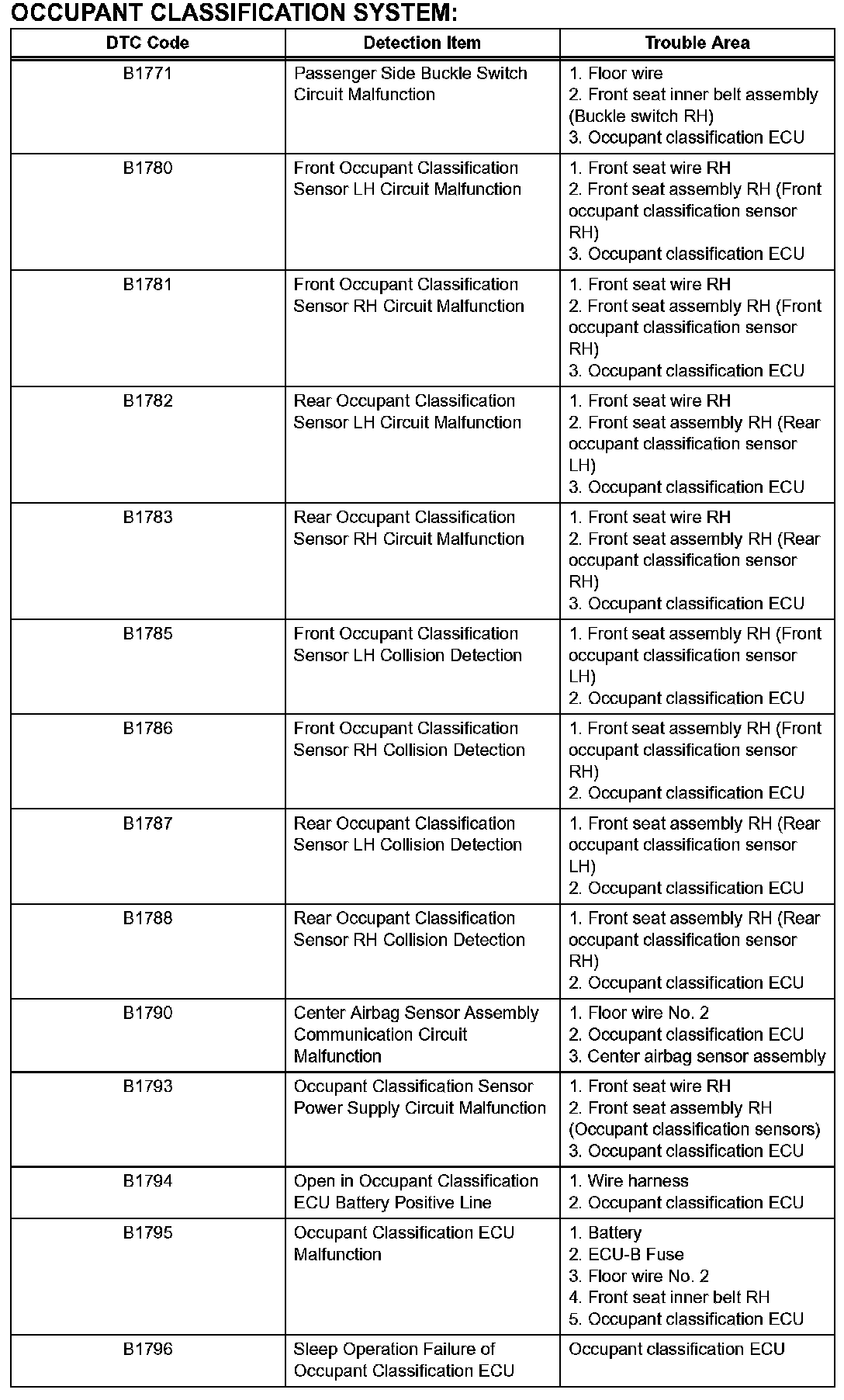

DIAGNOSTIC TROUBLE CODE CHART

B1771-B1796:

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table (proceed to the DTC Code listed for that circuit).
