C Codes

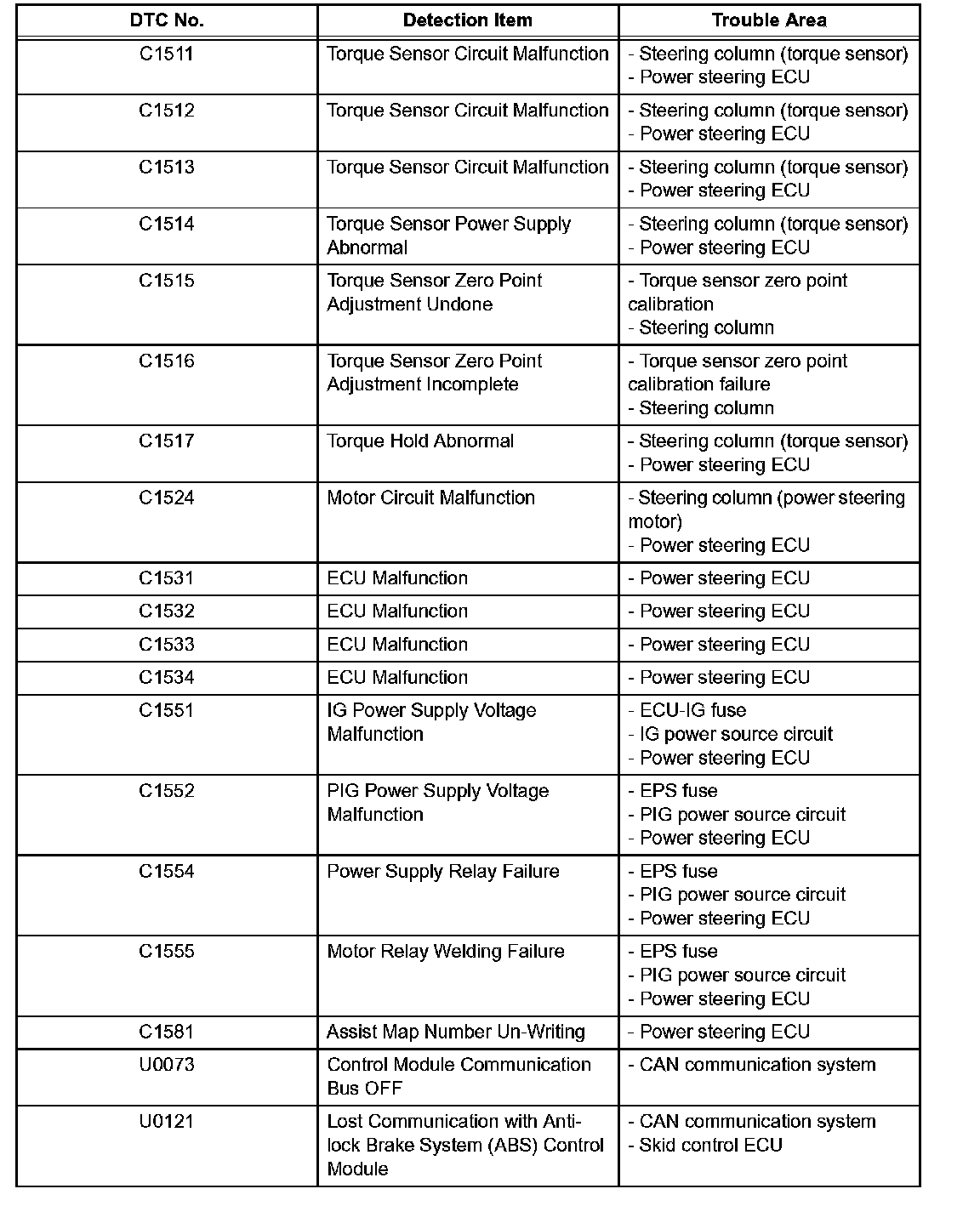

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code.

Electronic Power Steering System

C1511-U0121:
