Windshield Washer Motor: Testing and Inspection

ON-VEHICLE INSPECTION

INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

Operation Check




1. Pour the water into the washer jar with the windshield washer motor and pump assembly installed to the washer jar assembly.

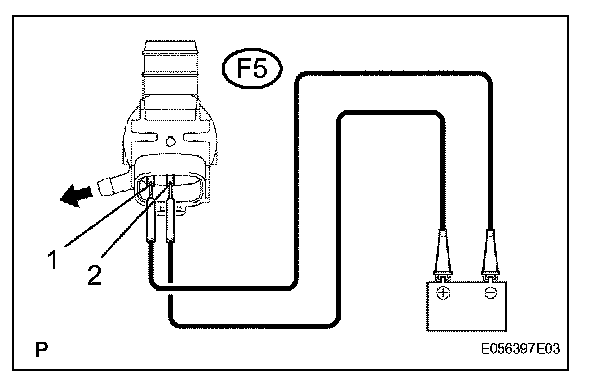

2. Connect the battery (+) to terminal 2 of the windshield washer motor and pump assembly, the battery (-) to terminal 1 of the windshield washer motor and pump assembly. Check that the water comes out from the washer jar.
