Rear Stabilizer Bar

REAR STABILIZER BAR

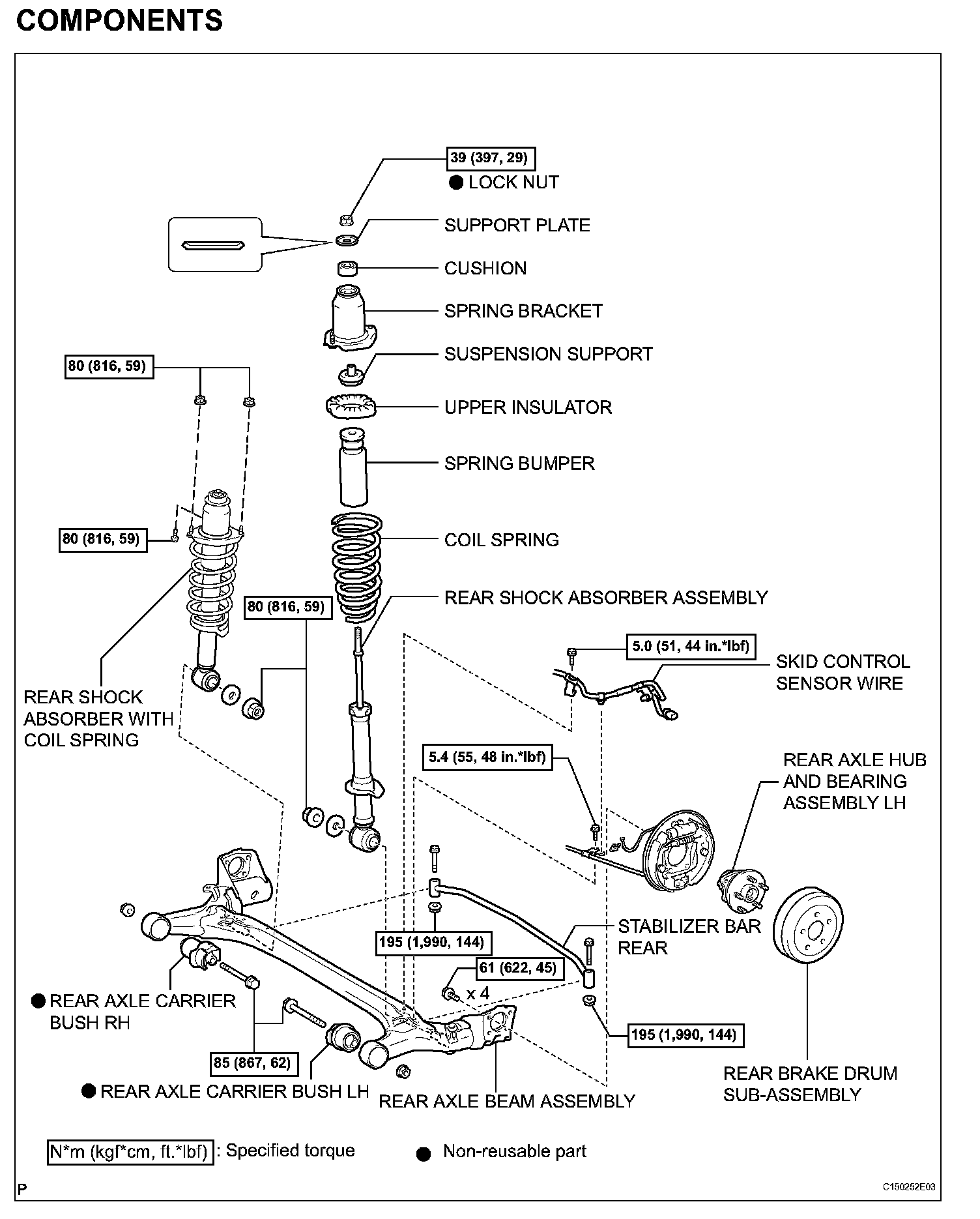

COMPONENTS:

REMOVAL





1. REMOVE STABILIZER BAR REAR

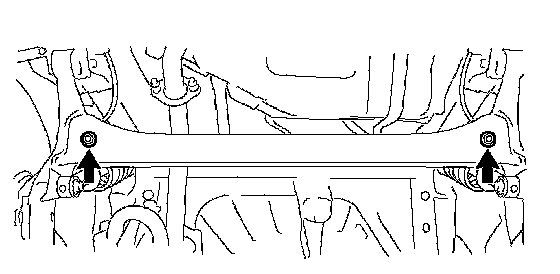

(a) Remove the 2 bolts, nuts and stabilizer bar rear.

INSTALLATION





1. INSTALL STABILIZER BAR REAR
(a) Install the 2 bolts, nuts and stabilizer bar rear.
Torque: 195 Nm (1,988 kgf-cm, 144 ft. lbs.)

HINT: Install the stabilizer bar rear so that the mark is positioned on the rear left side of the vehicle.
