Problem Symptom Index

PROBLEM SYMPTOMS TABLE

HINT: Proceed to the troubleshooting for each circuit in the given table.

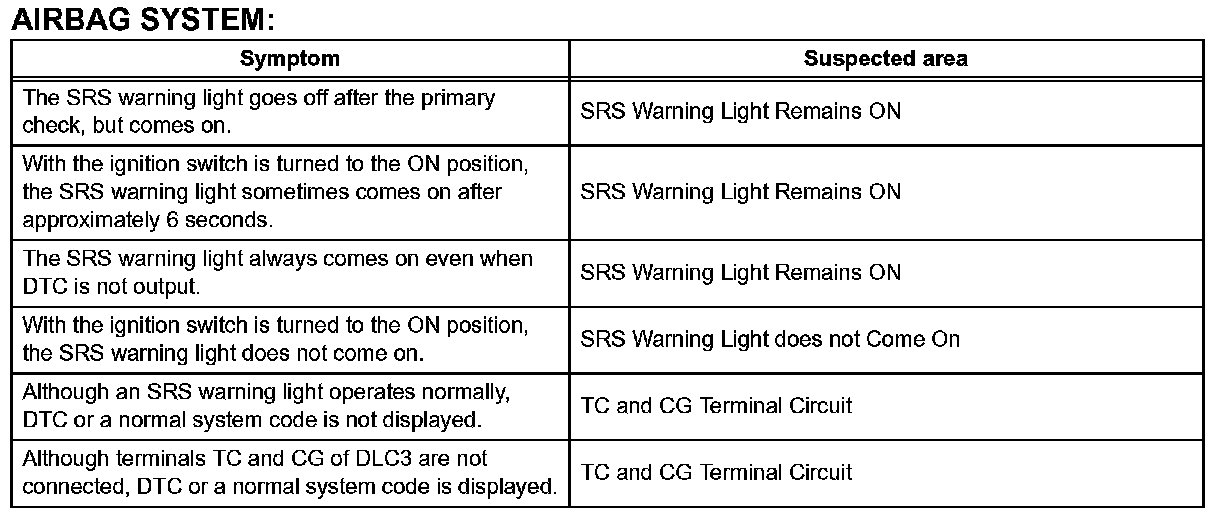

Problem Symptoms Table - Airbag System:
