Front Axle Hub Bolt

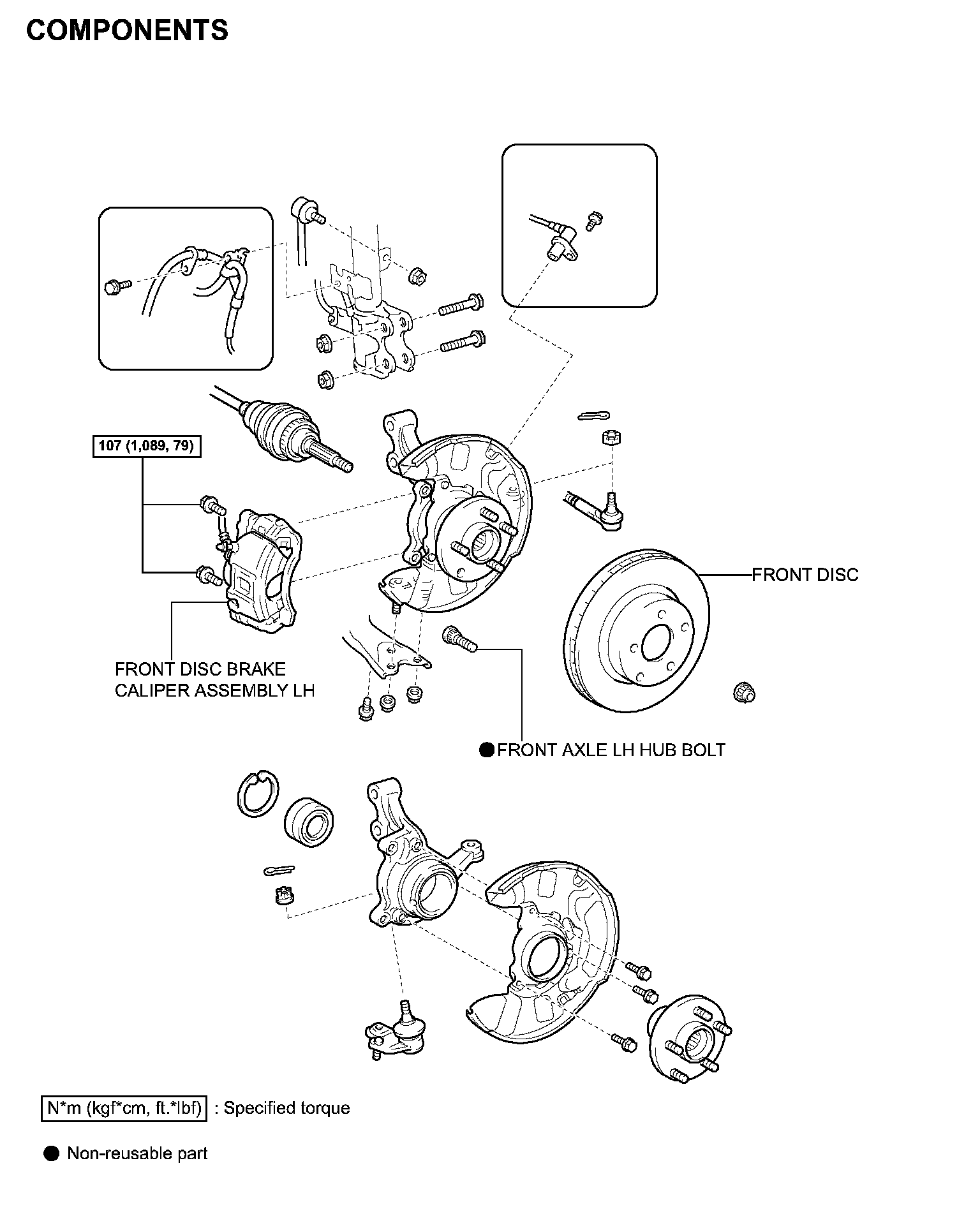

FRONT AXLE HUB BOLTCOMPONENTS:
REMOVAL
HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE LH HUB BOLT

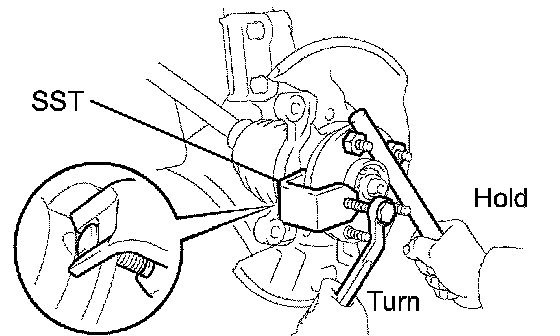

(a) Using SST and a hammer handle or an equivalent, remove the LH hub bolt.
SST 09628-10011
INSTALLATION
1. INSTALL FRONT AXLE LH HUB BOLT

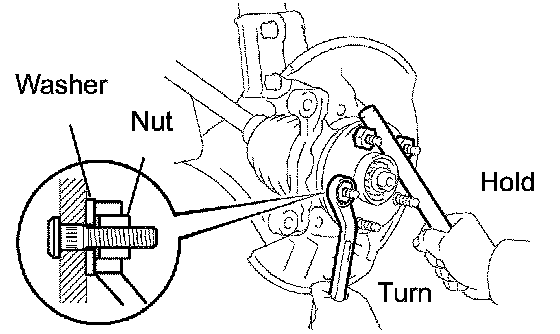

(a) Install a washer and nut to a new LH hub bolt as shown in the illustration.
(b) Using a hammer handle or an equivalent to hold the hub sub-assembly LH, install the LH hub bolt by tightening the nut.
2. INSTALL FRONT DISC
3. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
4. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
