Center Mounted Brake Lamp: Service and Repair

REMOVAL

1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Spoiler)
2. REMOVE CENTER STOP LIGHT ASSEMBLY (w/o Rear Spoiler)

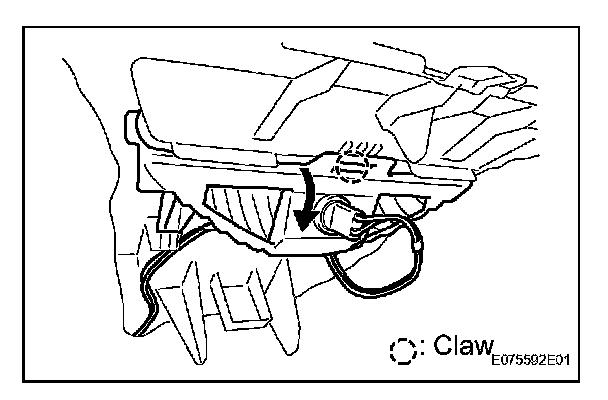

a. Remove the center stop light assembly as shown in the illustration.

3. REMOVE CENTER STOP LIGHT ASSEMBLY (w/ Rear Spoiler)

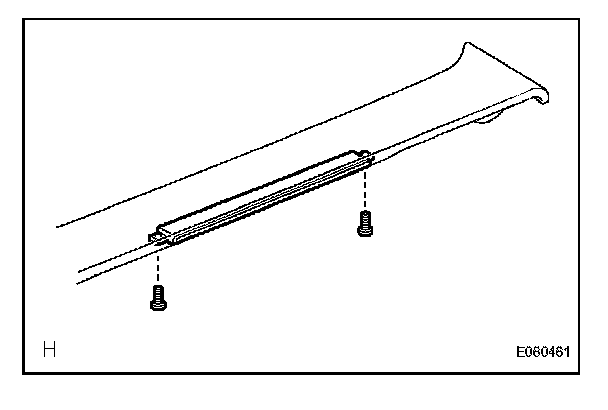

a. Remove the 2 screws.
b. Disconnect the connector and remove the center stop light assembly.

INSTALLATION

1. INSTALL CENTER STOP LIGHT ASSEMBLY (w/ Rear Spoiler)
2. REMOVE CENTER STOP LIGHT ASSEMBLY (w/o Rear Spoiler)
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Spoiler)
