Warning Buzzer Does Not Sound

Warning Buzzer does not Sound

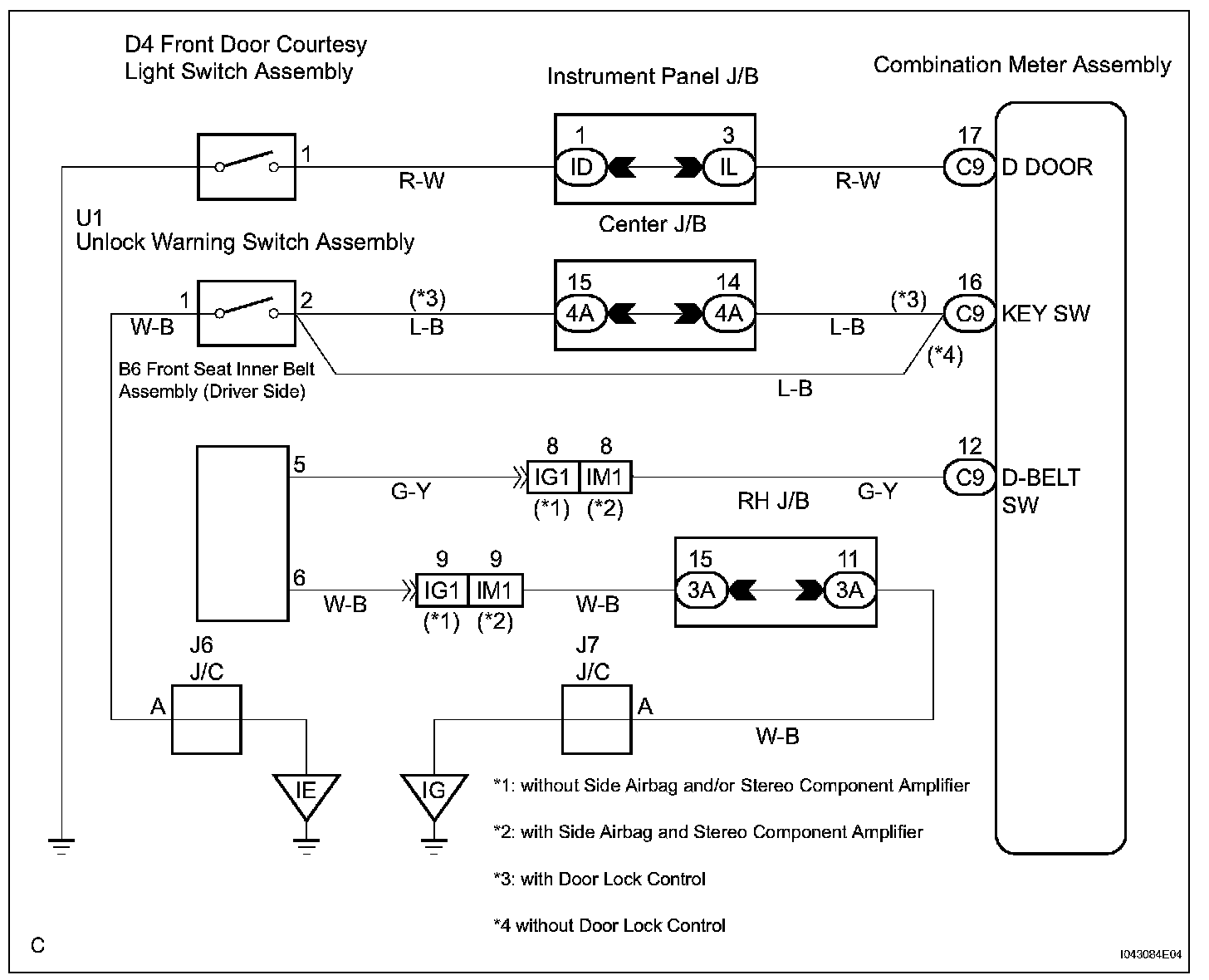

Wiring Diagram:





INSPECTION PROCEDURE

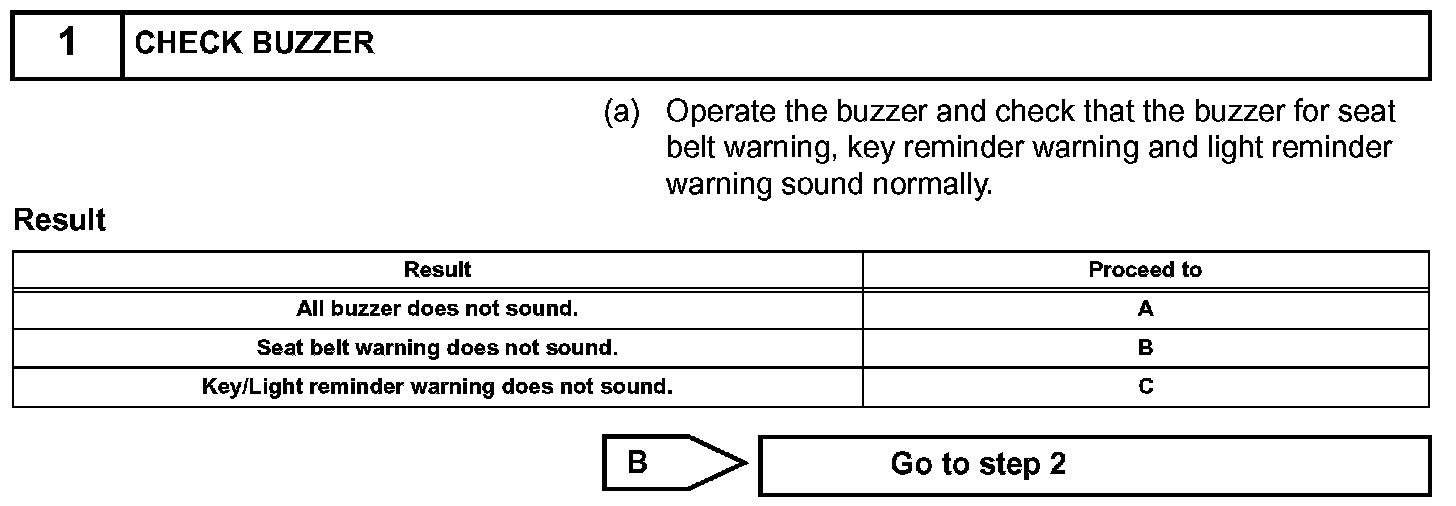

Step 1:

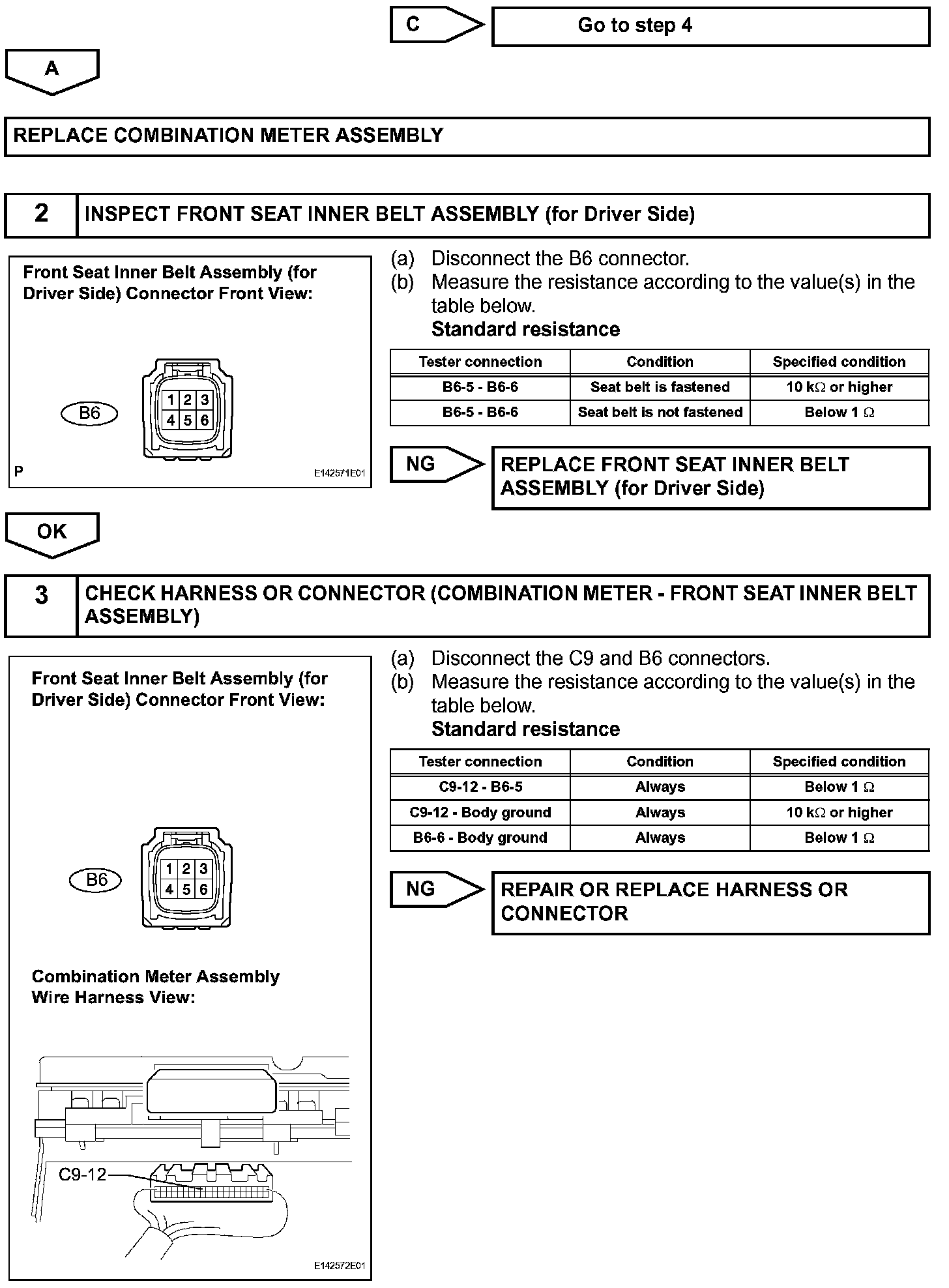

Step 1(Continued)-3:

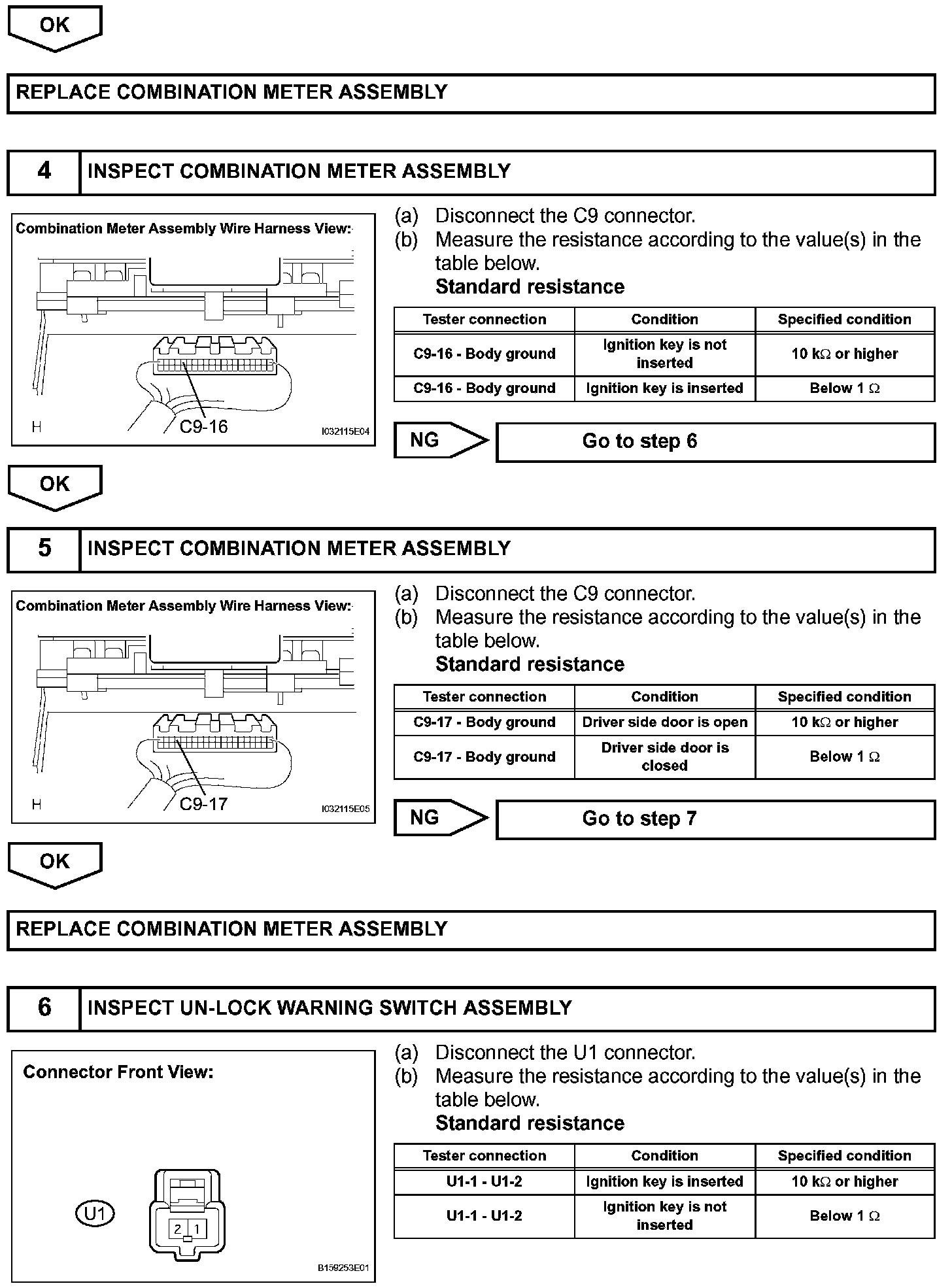

Step 3(Continued)-6:

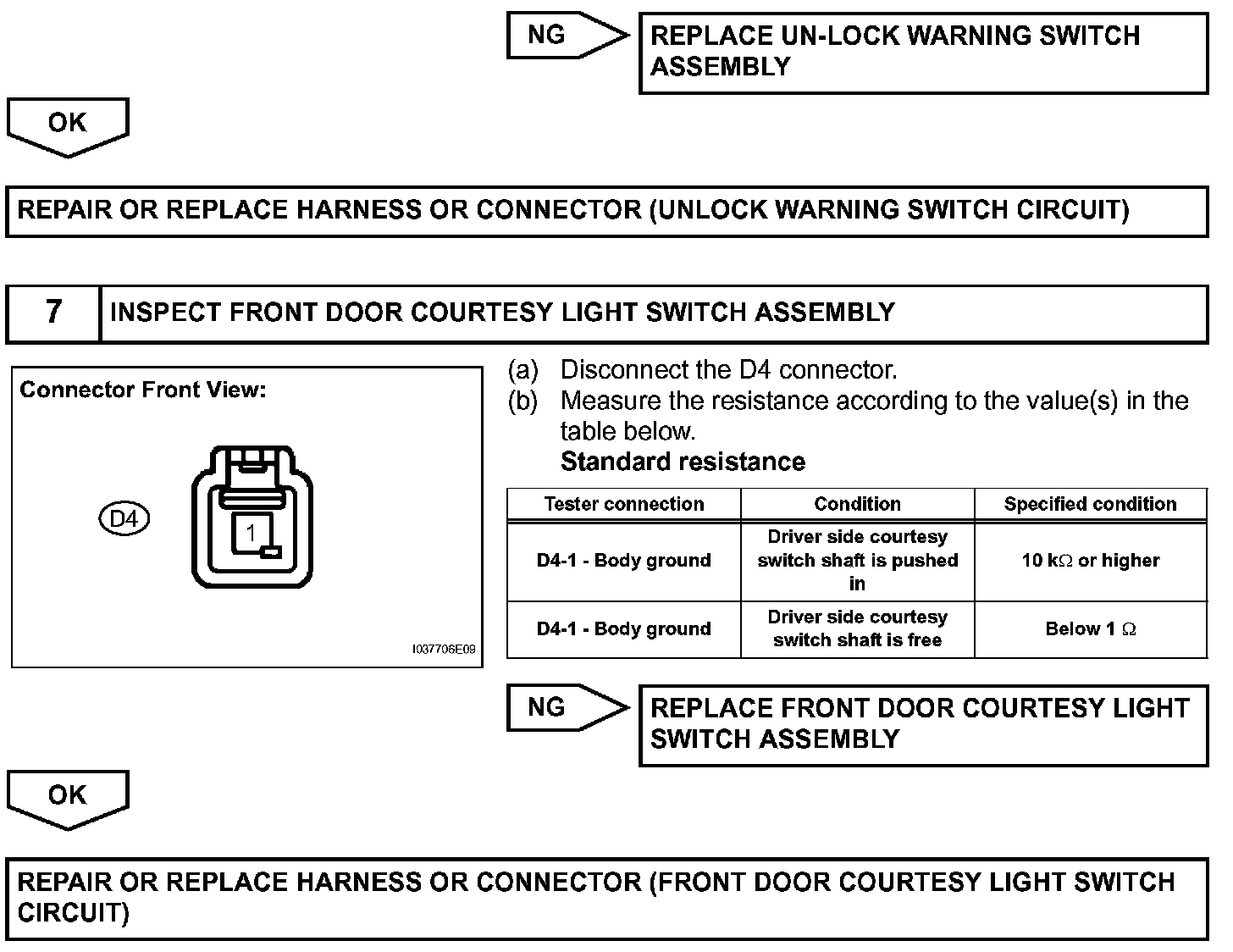

Step 6(Continued)-7:
