Driver Side Seat Belt Warning Light Does Not Operate
Driver Side Seat Belt Warning Light Does Not Operate
Driver Side Seat Belt Warning Light does not Operate

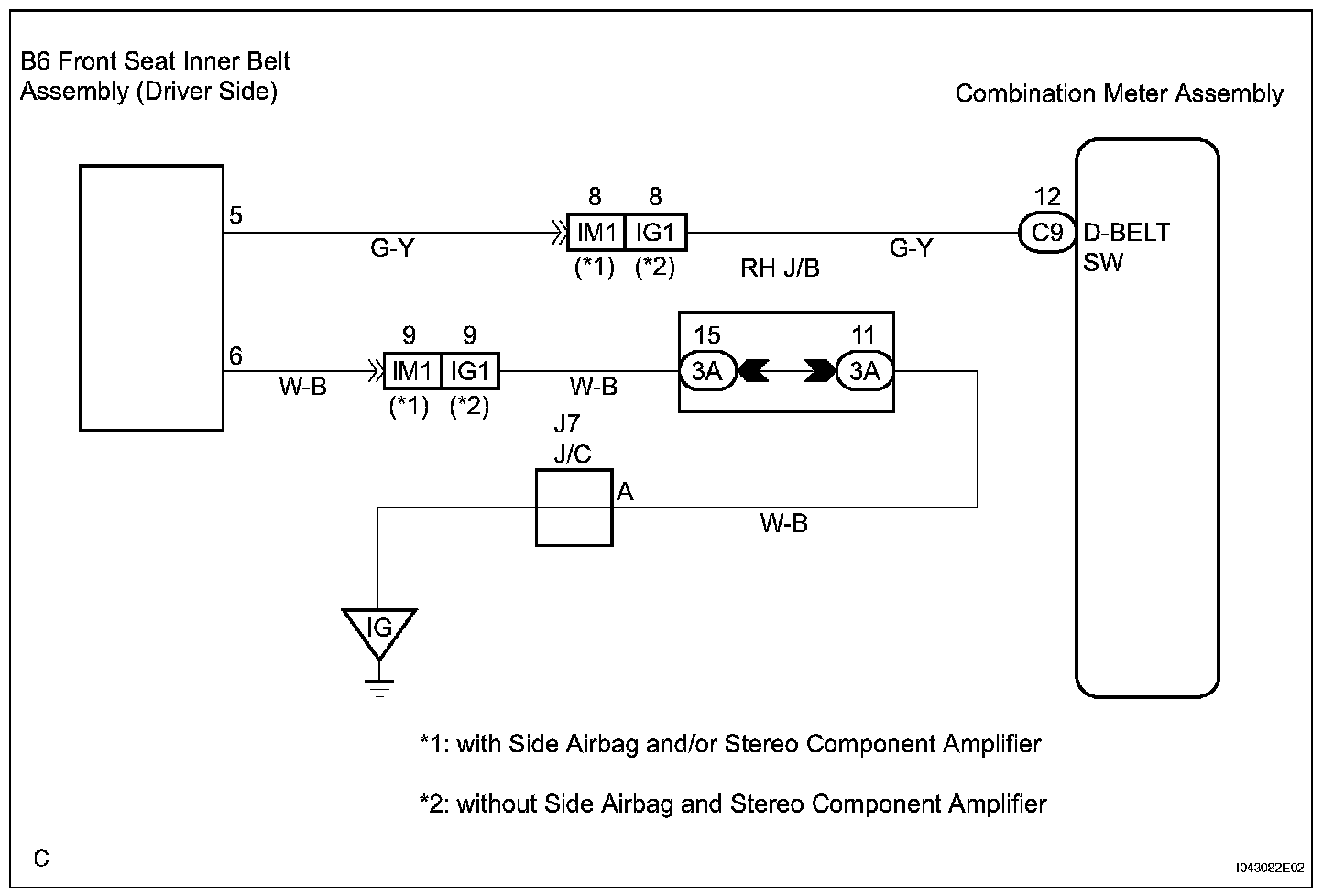

Wiring Diagram:
INSPECTION PROCEDURE

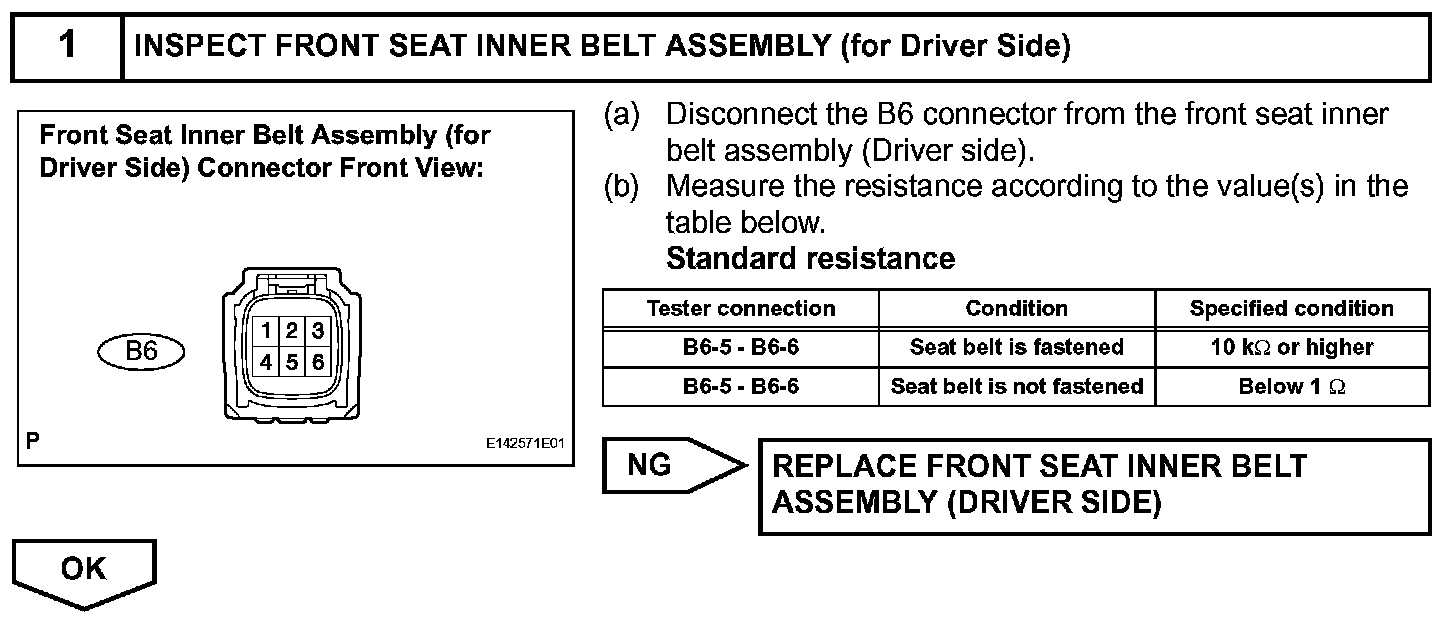

Step 1:

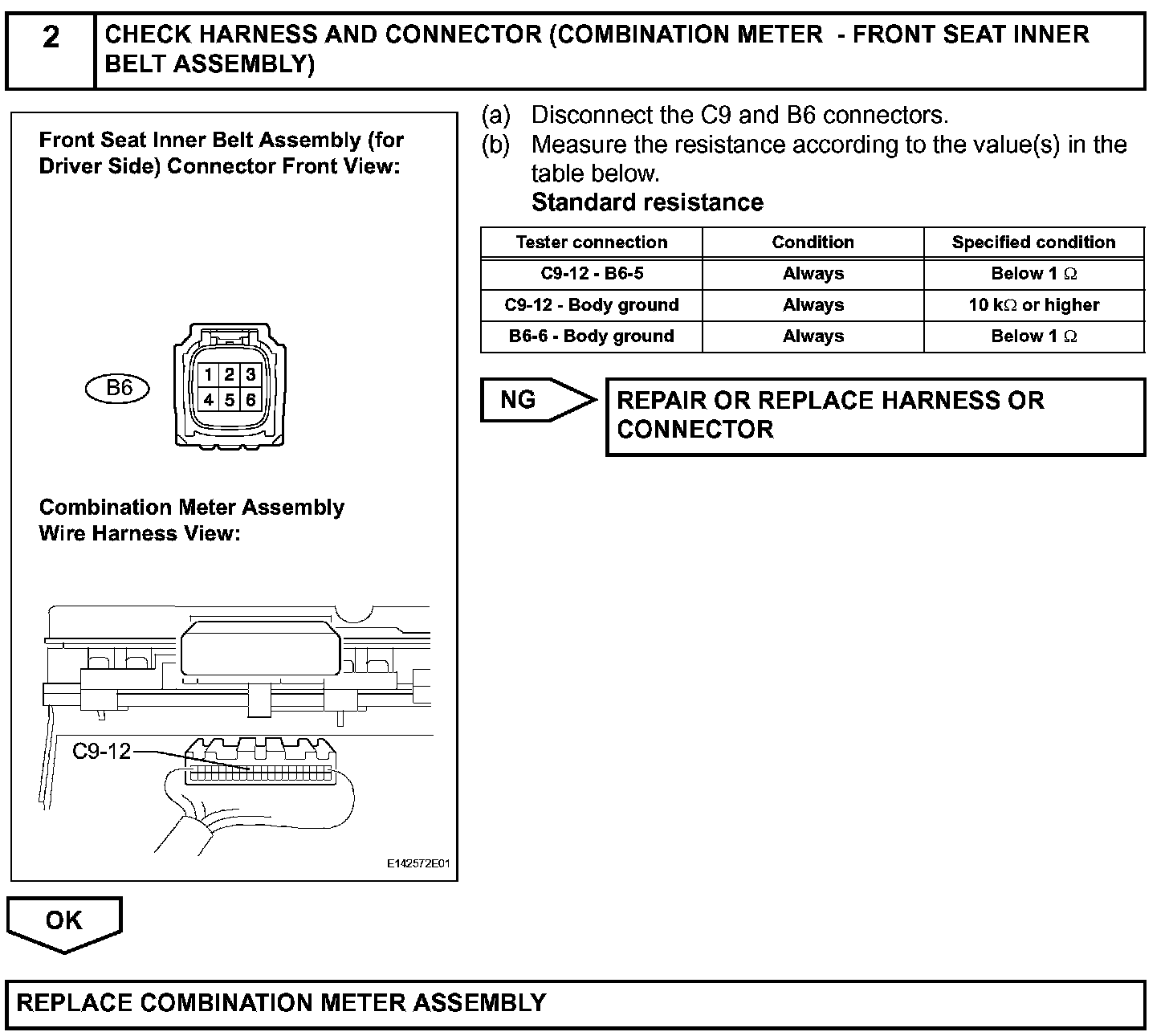

Step 2:
