Clock: Service and Repair

Clock:

CLOCK

REMOVAL

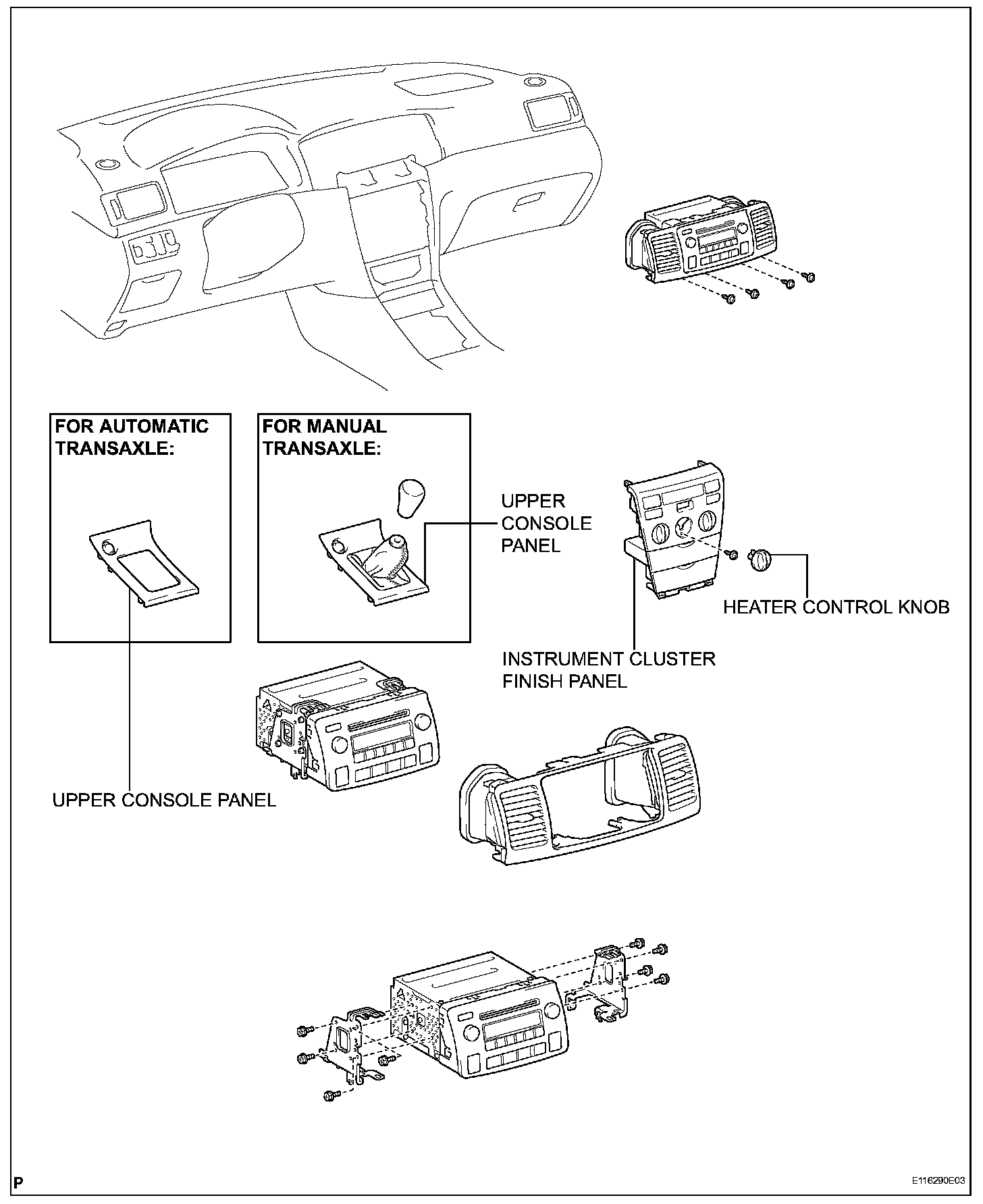

1. REMOVE FRONT ASH RECEPTACLE ASSEMBLY
2. REMOVE UPPER CONSOLE PANEL
3. REMOVE HEATER CONTROL KNOB
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL
5. REMOVE CLOCK ASSEMBLY




a. Using a screwdriver, disengage the 4 claws, remove the clock assembly as shown in the illustration.

HINT: Tape the screwdriver tip before use.

INSTALLATION

1. INSTALL CLOCK ASSEMBLY
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL
3. INSTALL HEATER CONTROL KNOB
4. INSTALL UPPER CONSOLE PANEL
5. INSTALL FRONT ASH RECEPTACLE ASSEMBLY
