Cigarette Lighter: Service and Repair

Cigarette Lighter Assembly:

Cigarette Lighter Assembly:

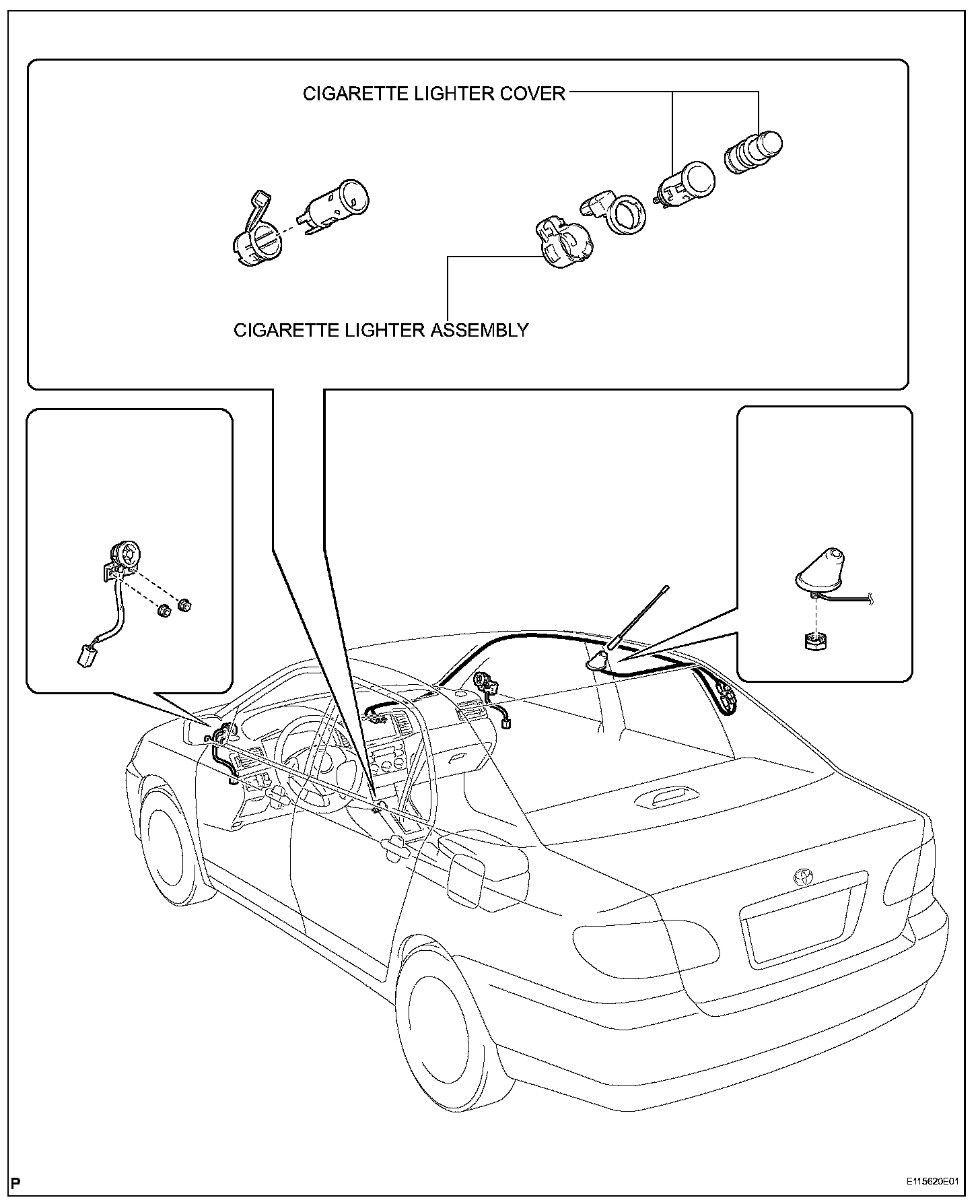

CIGARETTE LIGHTER ASSEMBLY

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
2. REMOVE UPPER CONSOLE PANEL
3. REMOVE CIGARETTE LIGHTER COVER




a. Disengage the 2 claws and remove the cigarette lighter cover.

4. REMOVE CIGARETTE LIGHTER ASSEMBLY

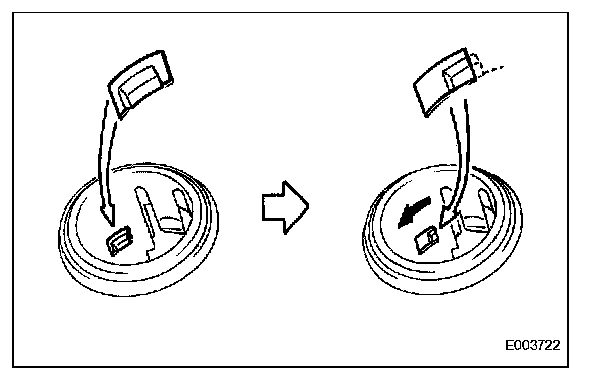

a. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket to the room side.
b. Align the socket with the notch on the cigarette lighter bezel stay, remove the cigarette lighter assembly to the room side.

INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Align the socket with the notch on the cigarette lighter bezel stay, push the cigarette lighter assembly into as hard as possible and install it.

2. INSTALL CIGARETTE LIGHTER COVER
3. INSTALL UPPER CONSOLE PANEL
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
