Evaporator Temperature Sensor / Switch: Testing and Inspection

INSPECTION

INSPECT COOLER THERMISTOR NO. 1




a. Inspect the cooler thermistor No. 1.

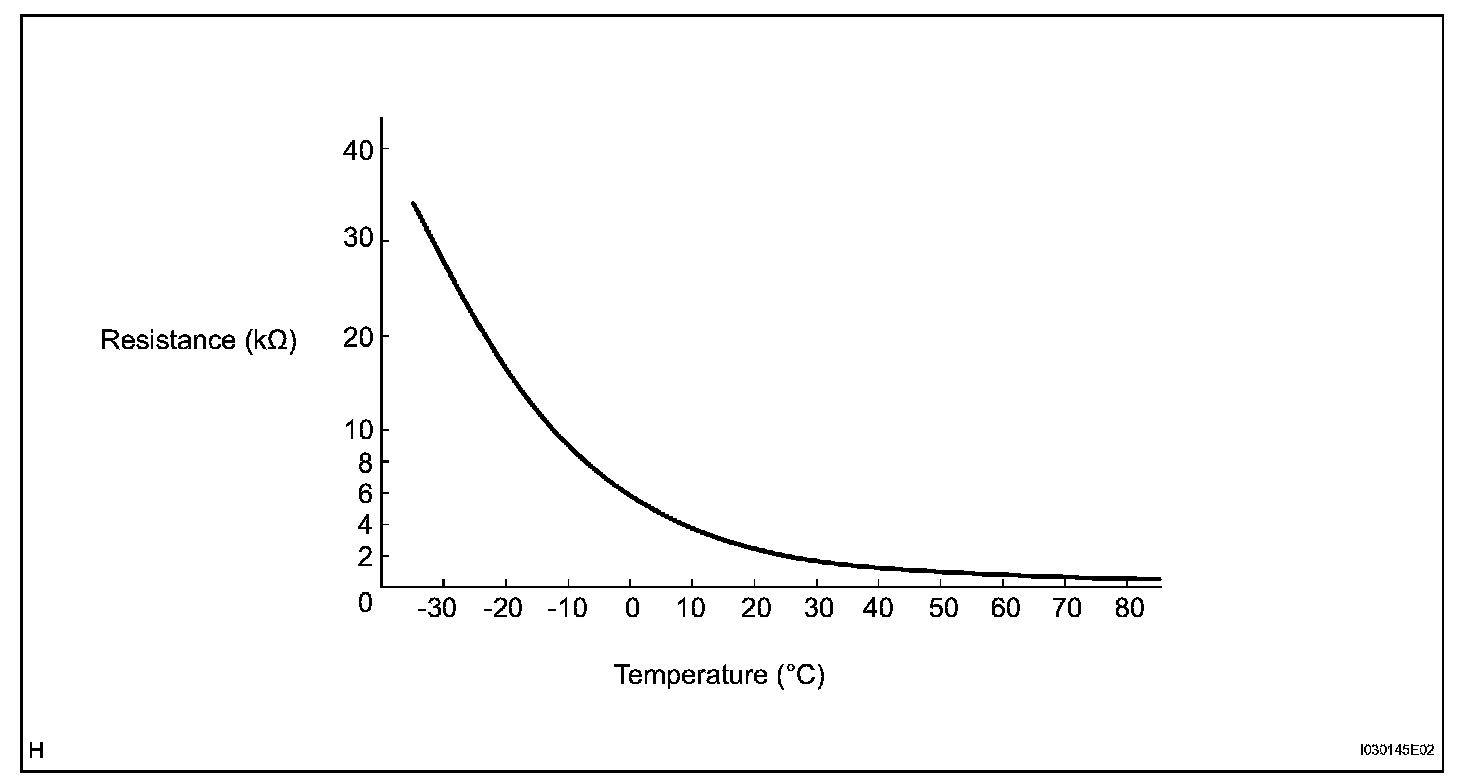

b. Check the resistance between terminals 1 and 2 of the cooler thermistor No. 1 at each temperature, as shown in the chart.

If the resistance value is not as specified, replace the sensor.
