Parking Brake Lever: Service and Repair

PARKING BRAKE LEVER

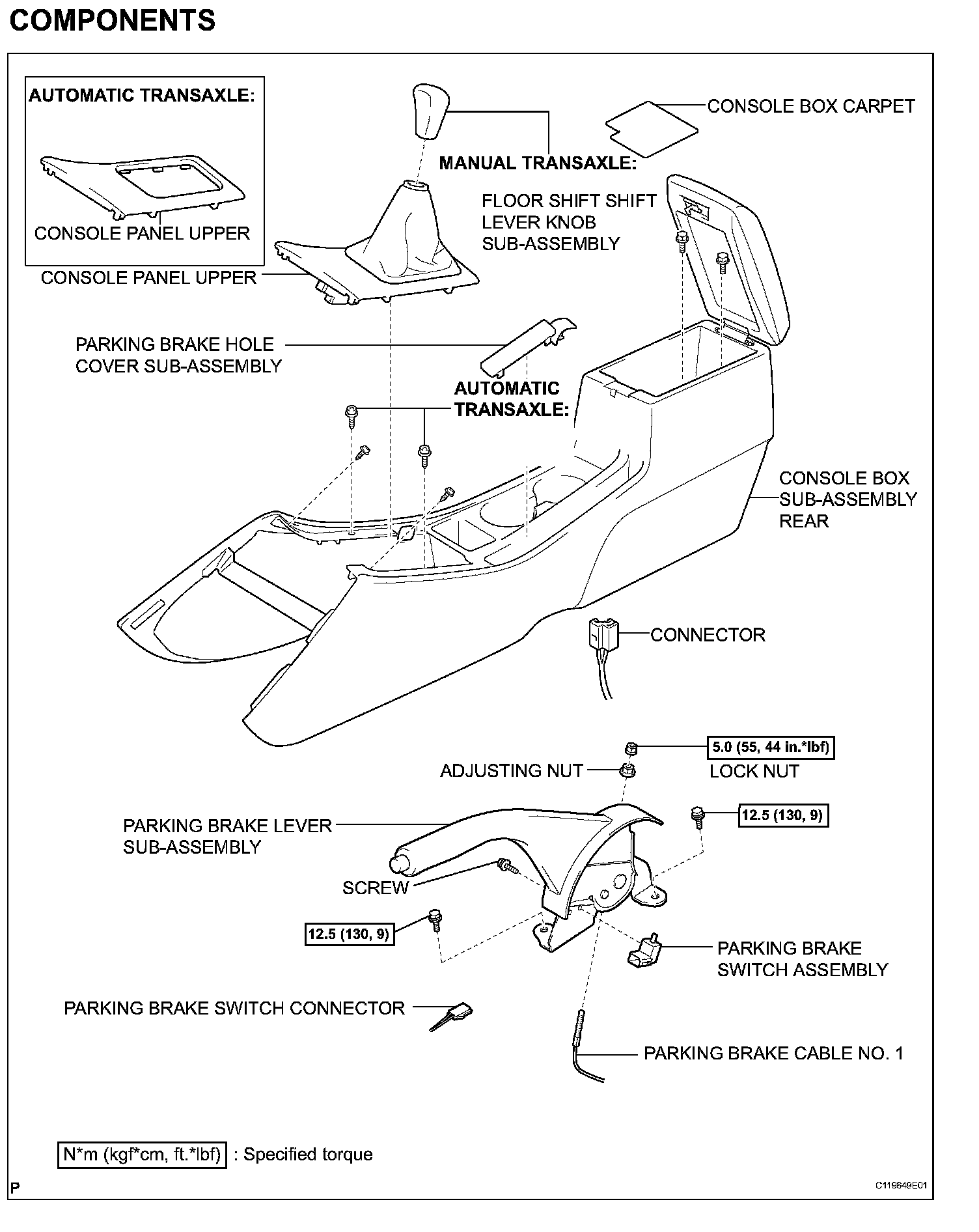

COMPONENTS:

REMOVAL
1. REMOVE CONSOLE BOX SUB-ASSEMBLY REAR





2. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Disconnect the parking brake switch connector from the parking brake switch.
(b) Remove the lock nut and adjusting nut from the parking brake cable assembly No. 1.

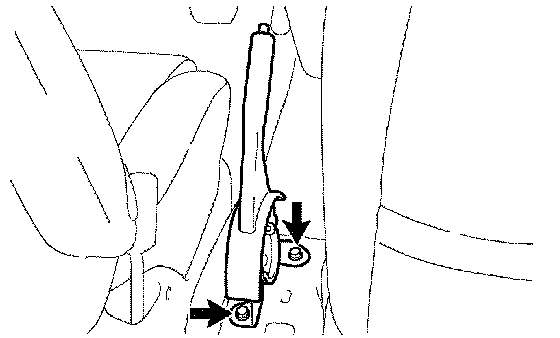

(c) Remove the 2 bolts.

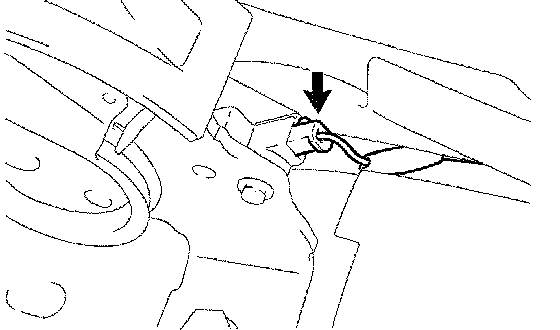

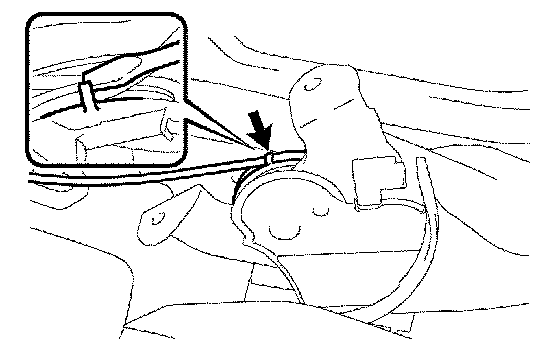

(d) Using a screwdriver, raise the pick on the parking brake lever, and remove the parking brake cable assembly No. 1 from the parking brake lever.
(e) Remove the parking brake lever from the body.





3. REMOVE PARKING BRAKE SWITCH ASSEMBLY

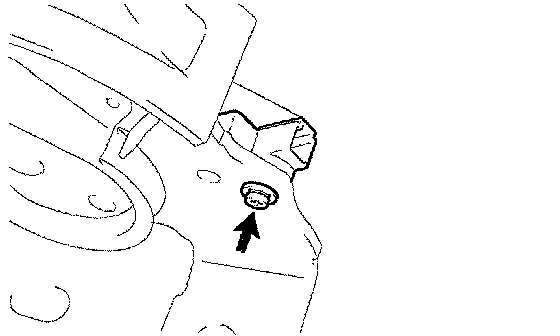

(a) Remove the screw and parking brake switch assembly.

INSTALLATION





1. INSTALL PARKING BRAKE SWITCH ASSEMBLY

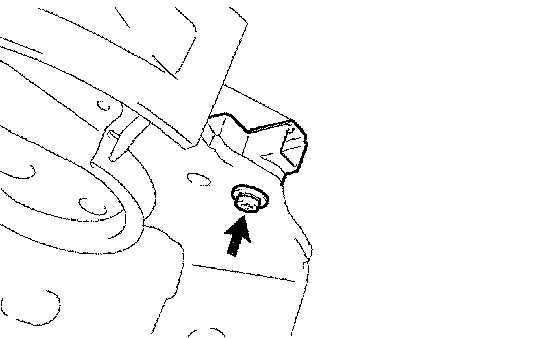

(a) Install the parking brake switch to the parking brake lever sub-assembly with the screw.





2. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Install the parking brake cable assembly No. 1 to the parking brake lever, temporarily tighten the adjusting nut and lock nut.

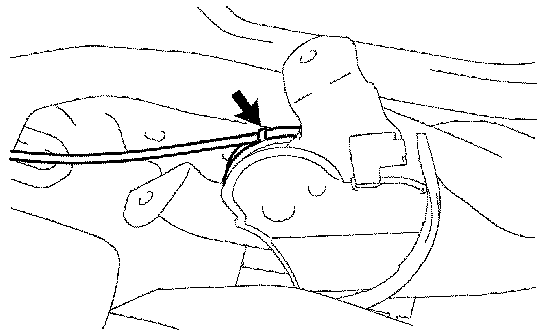

(b) Using a screwdriver, fix the parking brake cable No. 1 to the pick.

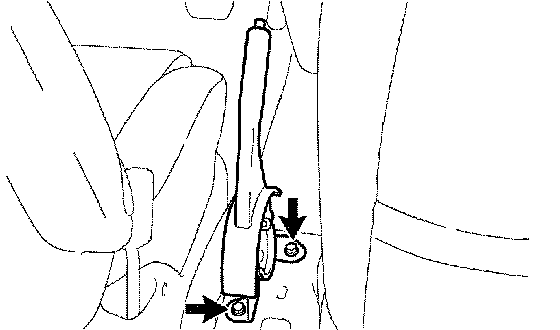

(c) Install the parking brake lever with the 2 bolts.
Torque: 12.5 Nm (130 kgf-cm, 9 ft. lbs.)





(d) Connect the parking brake switch connector to the parking brake switch.
3. INSPECT PARKING BRAKE LEVER TRAVEL
4. ADJUST PARKING BRAKE LEVER TRAVEL
5. INSTALL CONSOLE BOX SUB-ASSEMBLY REAR
