ABS Warning Light Does Not Come ON
ABS Warning Light does not Come ON

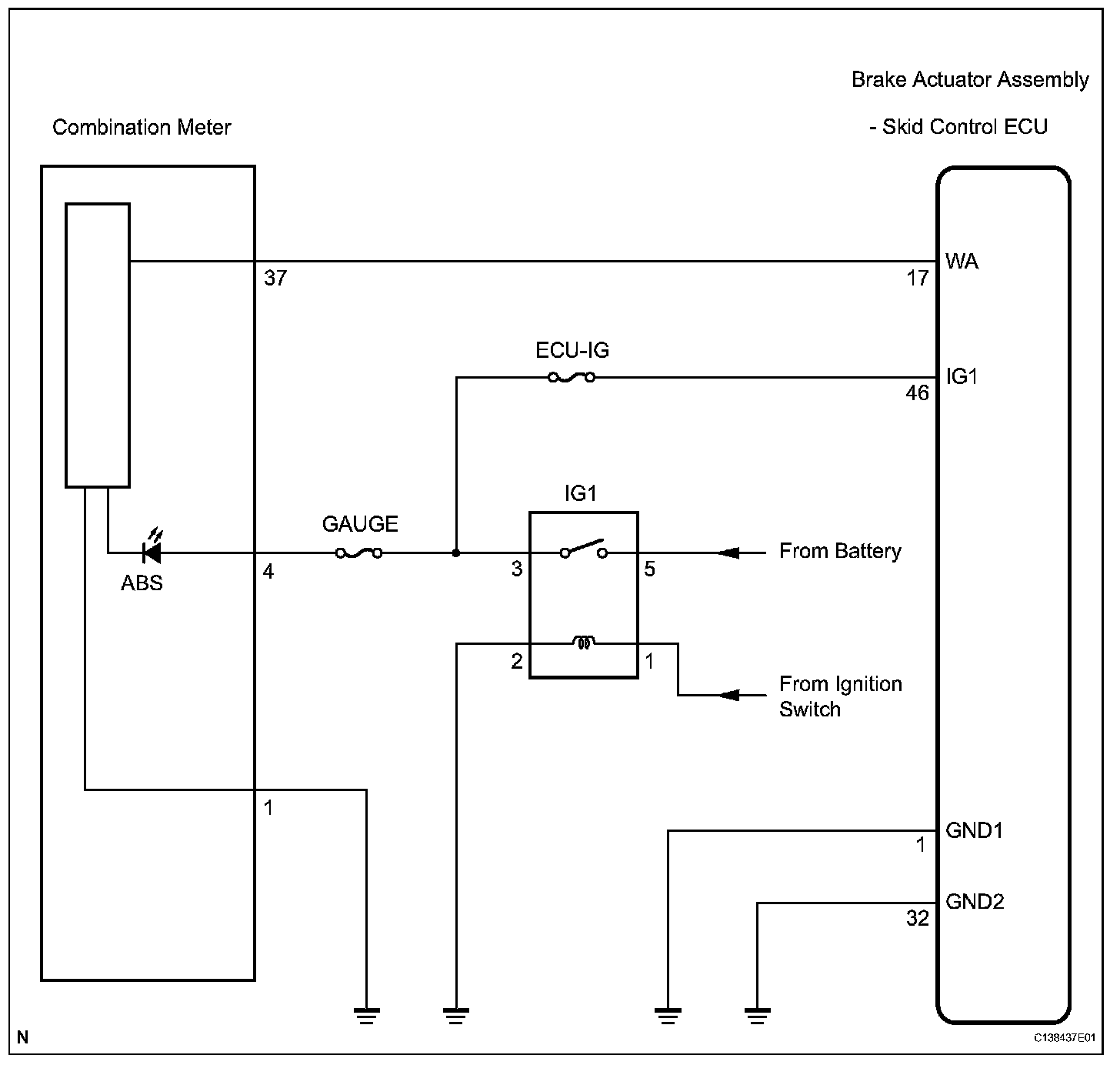

Wiring Diagram:

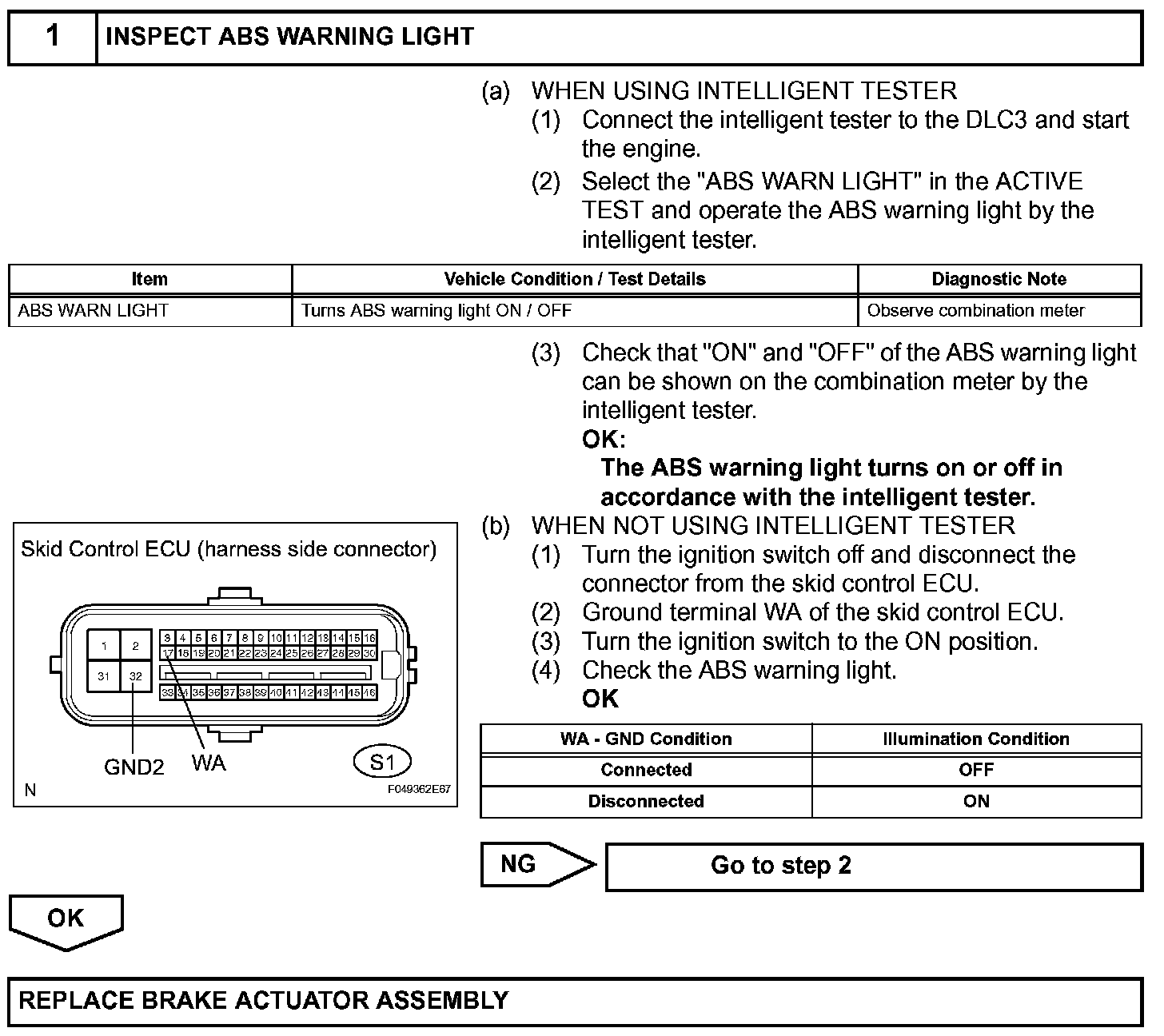

Step 1:

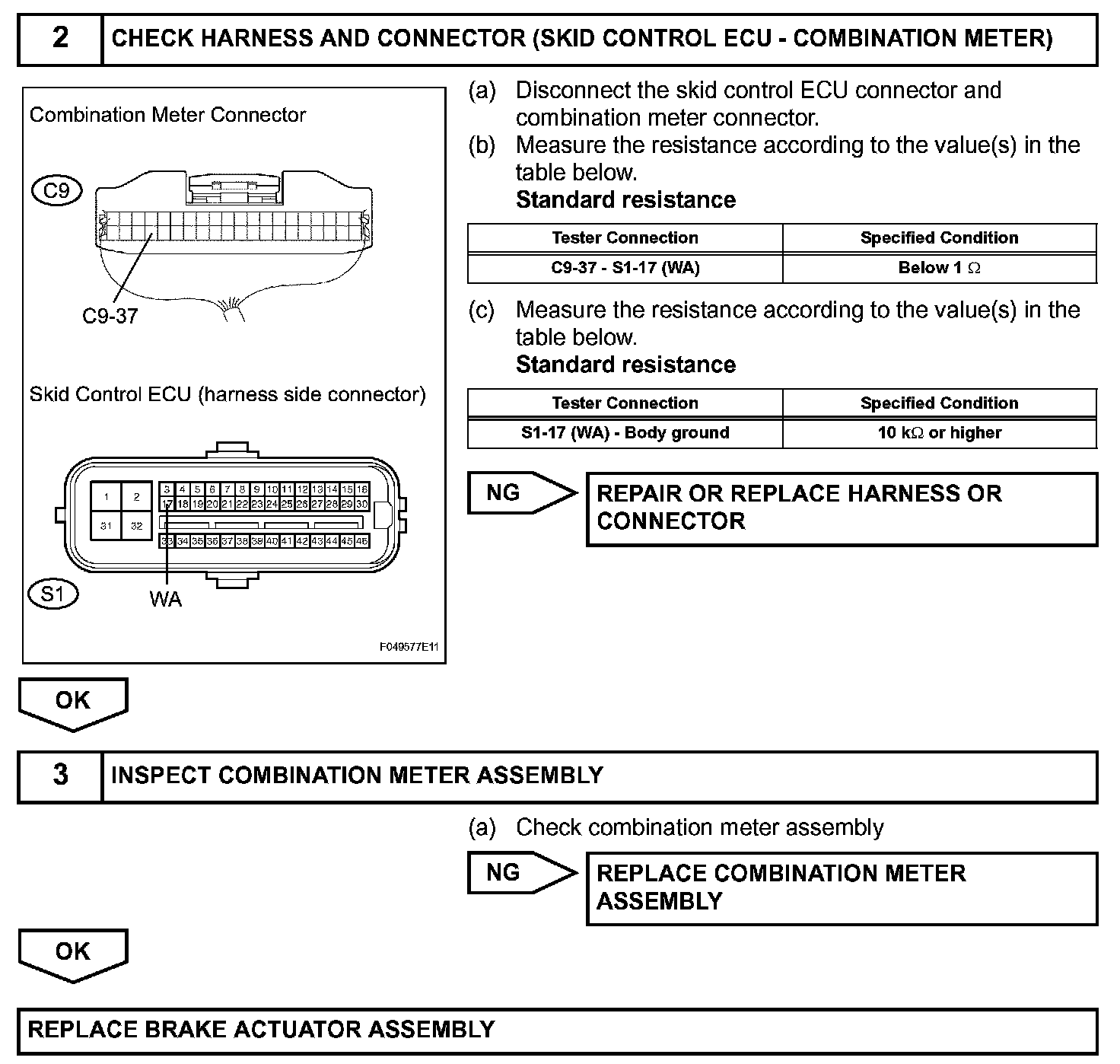

Step 2-3:
INSPECTION PROCEDURE
