ABS and Traction Actuator
REMOVAL1. DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
2. REMOVE FRONT WHEEL RH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
5. REMOVE FRONT BUMPER COVER
6. REMOVE LH HEADLIGHT ASSEMBLY
7. REMOVE WINDSHIELD WASHER JAR ASSEMBLY
8. REMOVE BRAKE ACTUATOR WITH BRACKET
a. Disconnect the actuator connector.

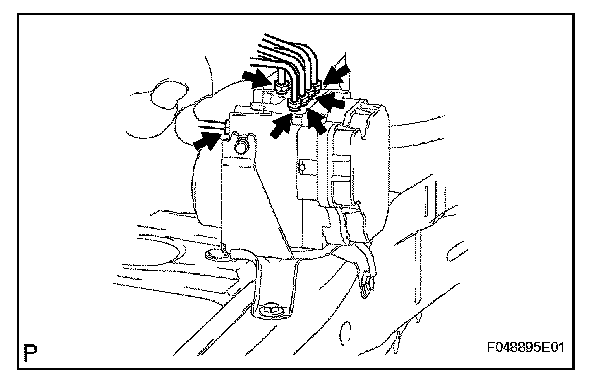

b. Using SST, disconnect the 6 brake tubes from the actuator with bracket.
SST 09023-00101
c. Use tags or make a memo to identify the places to reconnect.

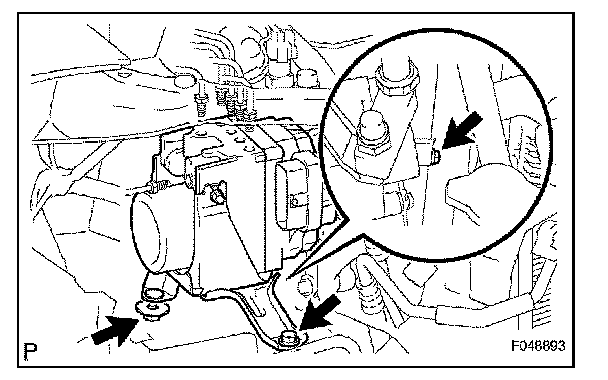

d. Remove the 2 bolts, nut and the actuator with bracket.
NOTE: Be careful not to damage the brake tubes and wire harness.
9. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY
a. Remove the 2 nuts and ABS and traction actuator assembly from the bracket.
INSTALLATION
1. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY
a. Install the ABS and traction actuator assembly with the 2 nuts to the bracket.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)
2. INSTALL BRAKE ACTUATOR WITH BRACKET
a. Install the actuator with bracket with the 2 bolts and nut.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
NOTE:
- Be careful not to damage the brake tubes and wire harness.

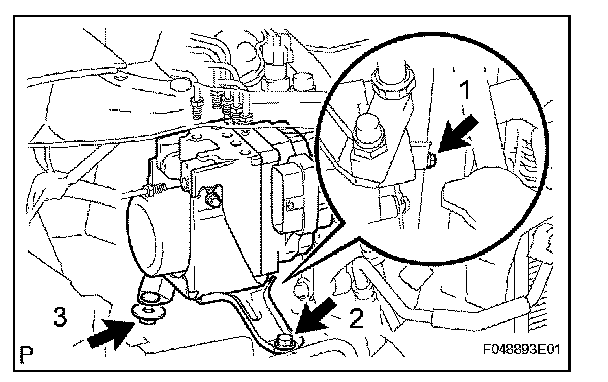

- Tighten the bolts in order from 1 to 3.
b. Connect the actuator connector.
NOTE: Make sure that the lever is locked securely.

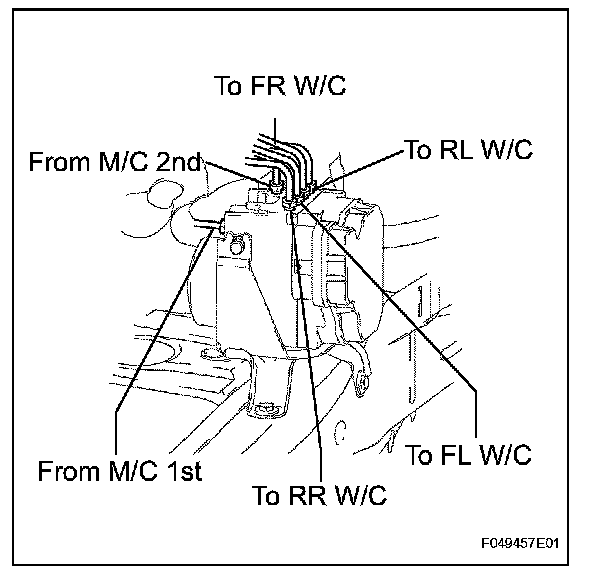

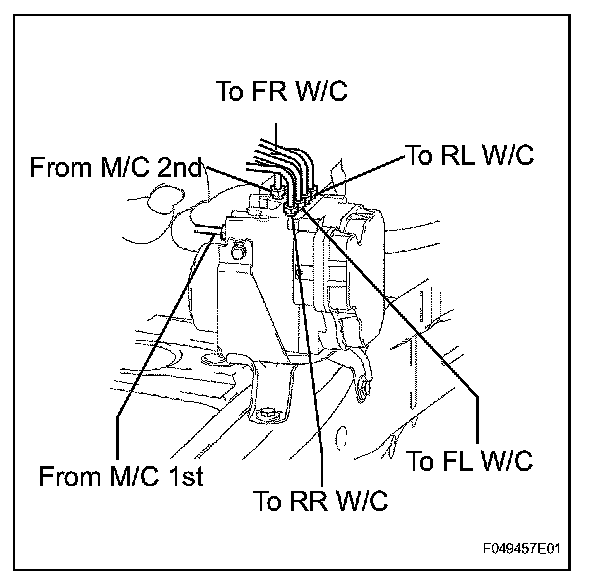

c. Using SST, connect each brake tube to correct positions of the actuator with bracket, as shown in the illustration.
SST 09023-00101
Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
3. INSTALL WINDSHIELD WASHER JAR ASSEMBLY
4. INSTALL LH HEADLIGHT ASSEMBLY
5. INSTALL FRONT BUMPER COVER
6. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
7. INSTALL FRONT FENDER LINER RH
8. INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
9. FILL RESERVOIR WITH BRAKE FLUID
10. BLEED MASTER CYLINDER
11. BLEED BRAKE LINE
12. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY
13. CHECK FLUID LEVEL IN RESERVOIR
14. CHECK FOR BRAKE FLUID LEAKAGE
15. CHECK ACTUATOR WITH INTELLIGENT TESTER
16. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
17. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT
18. PREPARE FOR FOG LIGHT AIMING
19. INSPECT FOG LIGHT AIMING
20. ADJUST FOG LIGHT AIMING
21. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT
22. PREPARE FOR HEADLIGHT AIMING (for Using a Tester)
23. PREPARE FOR HEADLIGHT AIMING (for Using a Screen)
24. INSPECT HEADLIGHT AIMING
25. ADJUST HEADLIGHT AIMING
