Radio Receiver Communication Error

Radio Receiver Communication Error

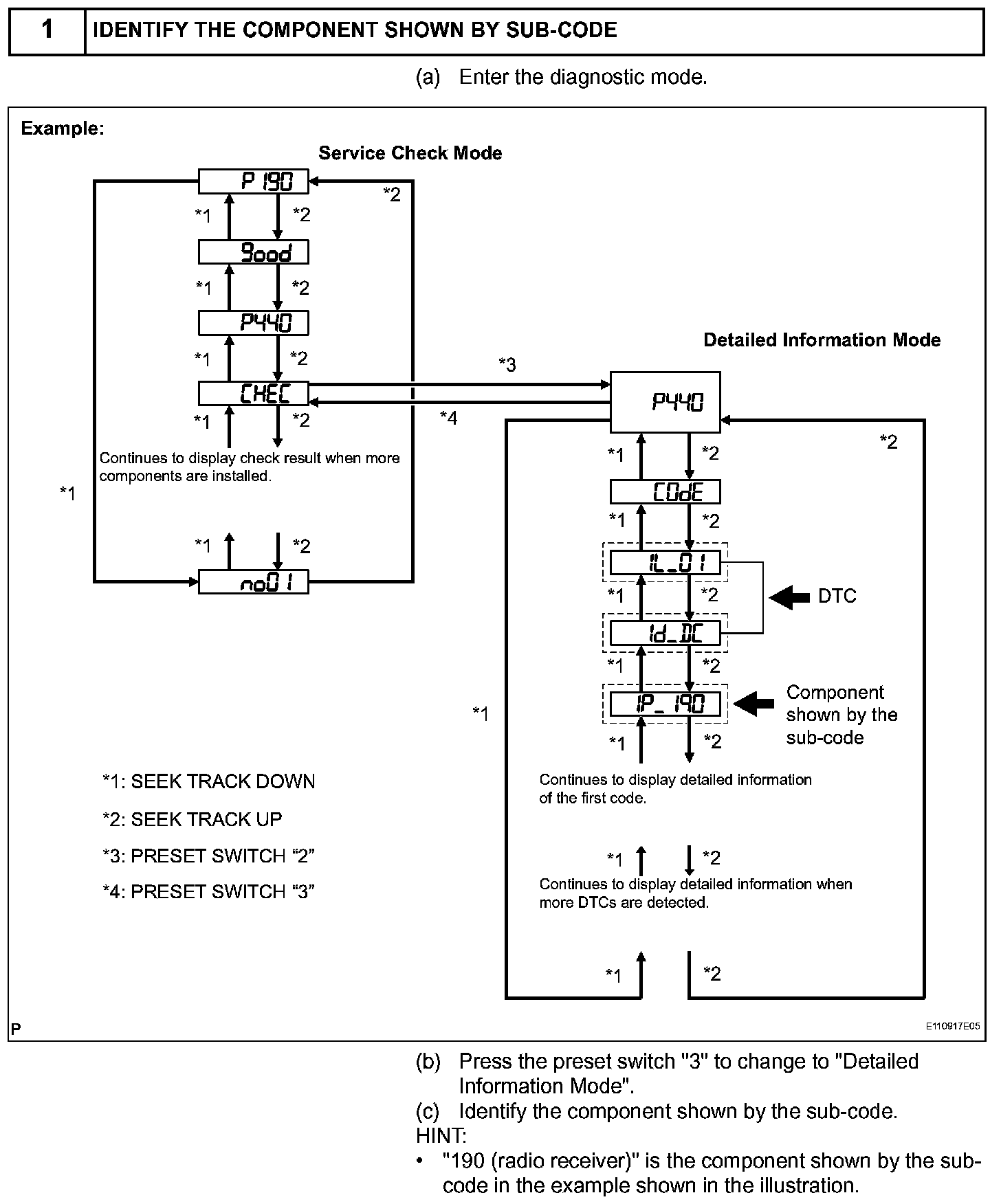

Step 1:

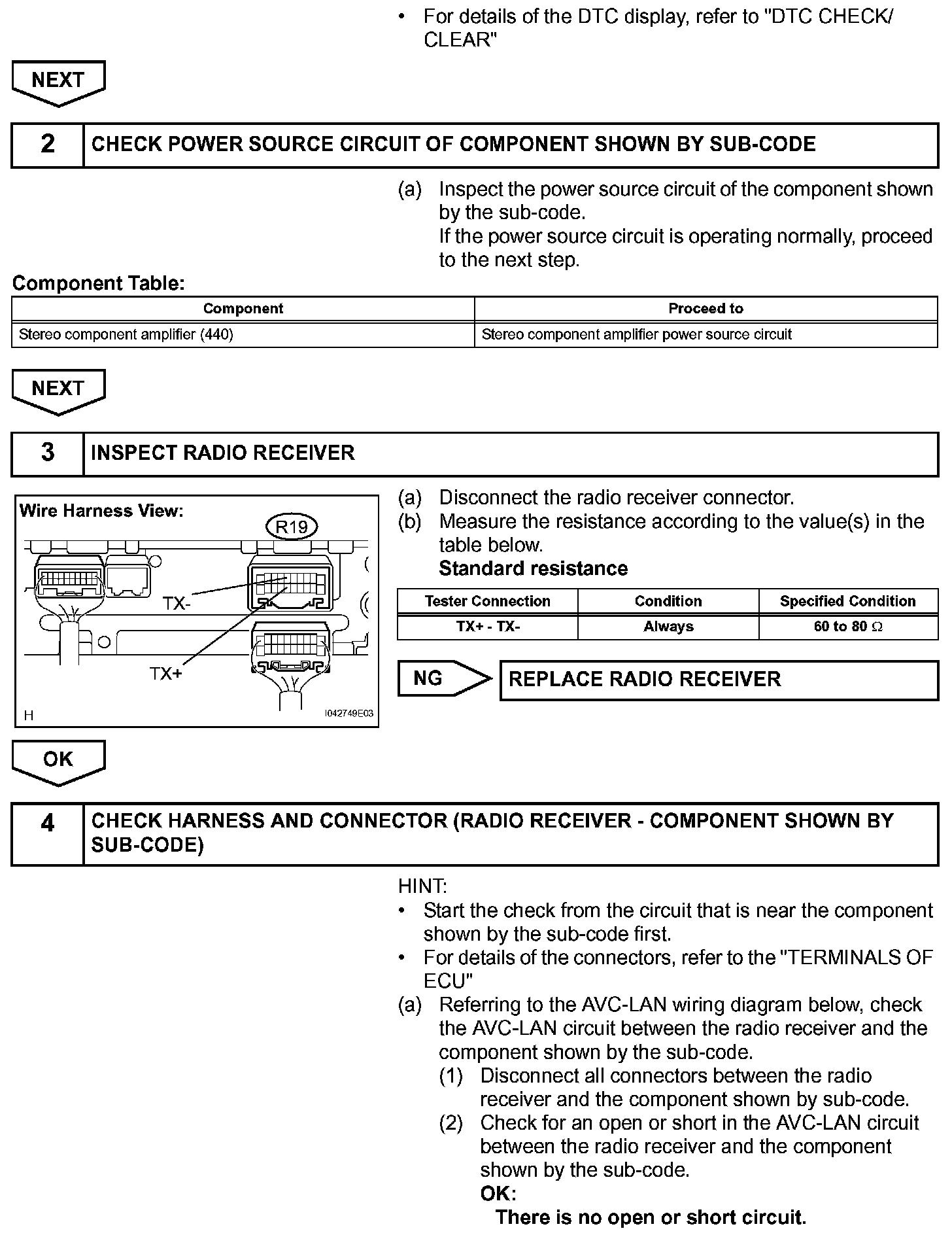

Step 1(Continued)-4:

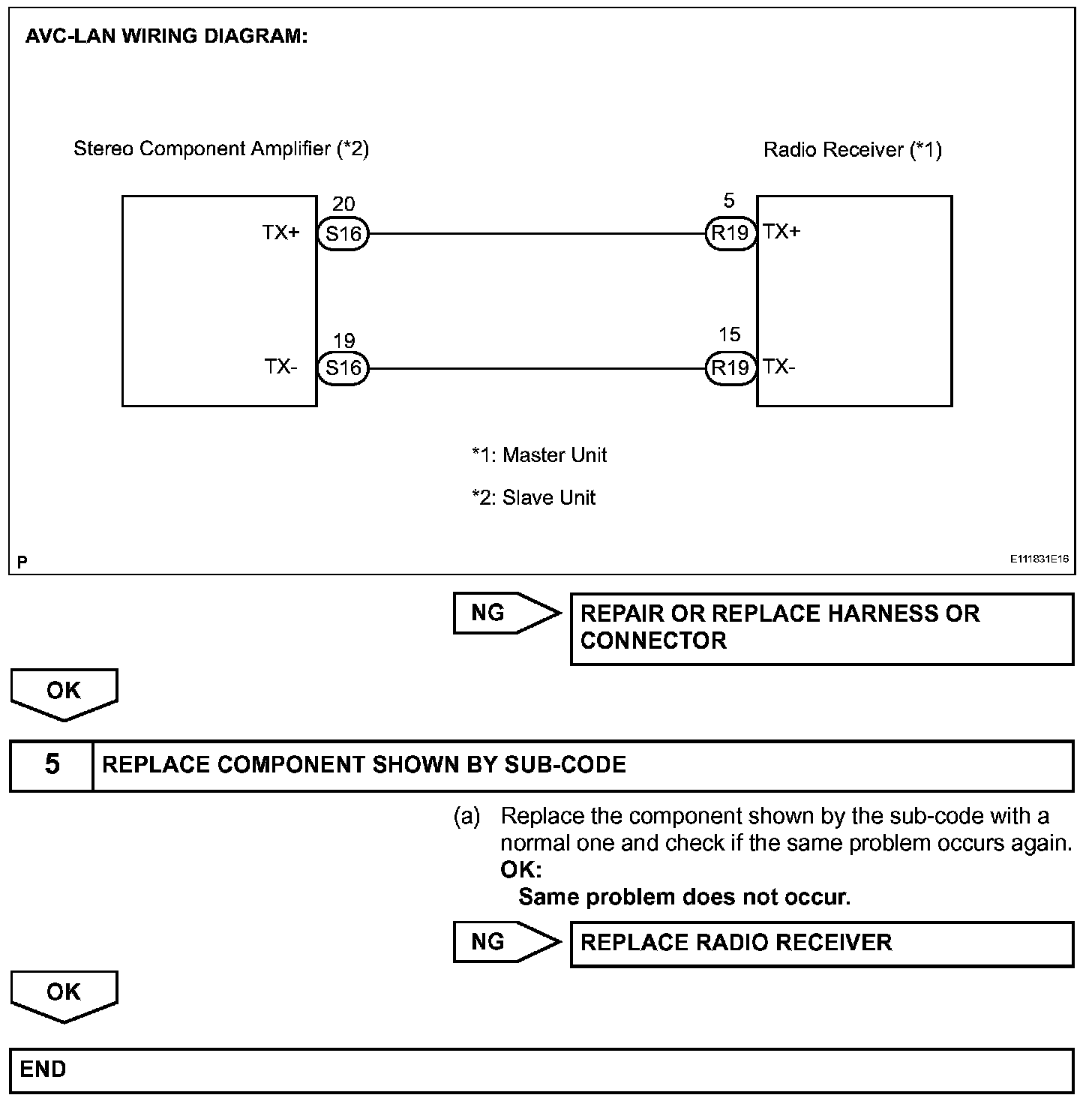

Step 4(Continued)-5:




INSPECTION PROCEDURE
