Amplifier: Service and Repair

Stereo Component Amplifier:

STEREO COMPONENT AMPLIFIER

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL

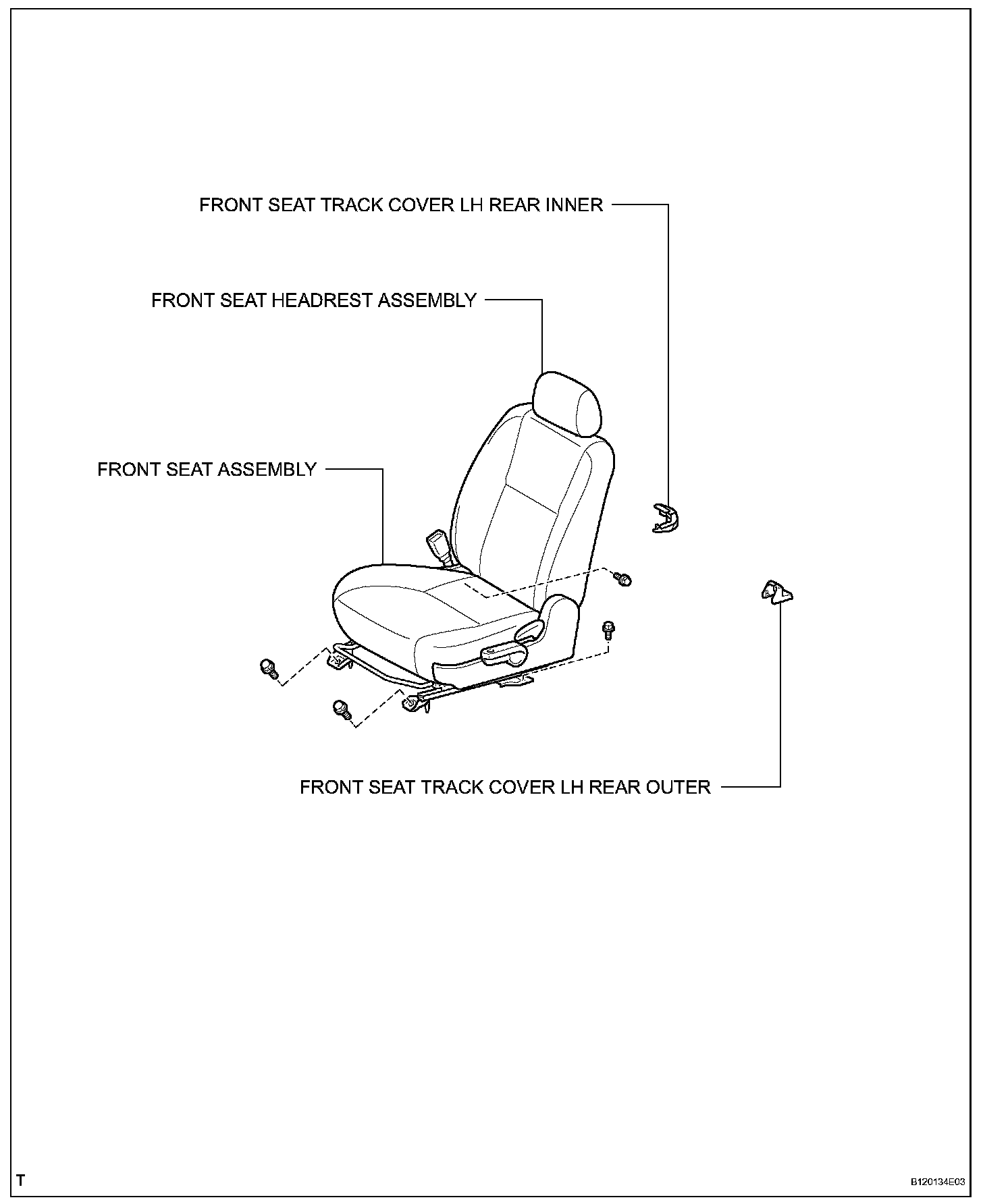

2. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER
3. REMOVE FRONT SEAT TRACK COVER LH REAR INNER
4. REMOVE FRONT SEAT HEADREST ASSEMBLY
5. REMOVE FRONT SEAT ASSEMBLY
a. Lift up the seat track adjusting handle and move the seat to the rear most position.
b. Remove the 2 bolts on the front side of the seat.
c. Lift up the seat track adjusting handle and move the seat to the front most position.
d. Remove the 2 bolts on the rear side of the seat.
e. Disconnect the connectors under the seat. Then remove the front seat.

NOTE: Be careful not to damage the vehicle body.

6. REMOVE STEREO COMPONENT AMPLIFIER

a. Disconnect each connectors.
b. Remove the 3 bolts and stereo component amplifier.

INSTALLATION

1. INSTALL STEREO COMPONENT AMPLIFIER
2. INSTALL FRONT SEAT ASSEMBLY
3. INSTALL FRONT SEAT HEADREST ASSEMBLY
4. INSTALL FRONT SEAT TRACK COVER LH REAR INNER
5. INSTALL FRONT SEAT TRACK COVER LH REAR OUTER
6. CHECK SEAT SLIDE ADJUSTER LOCKS
7. CONNECT BATTERY NEGATIVE TERMINAL
8. CHECK SRS WARNING LIGHT
