Diagnosis Circuit
Diagnosis CircuitDESCRIPTION
This circuit is used to read the DTCs that are output from the transponder key ECU assembly with the intelligent tester.

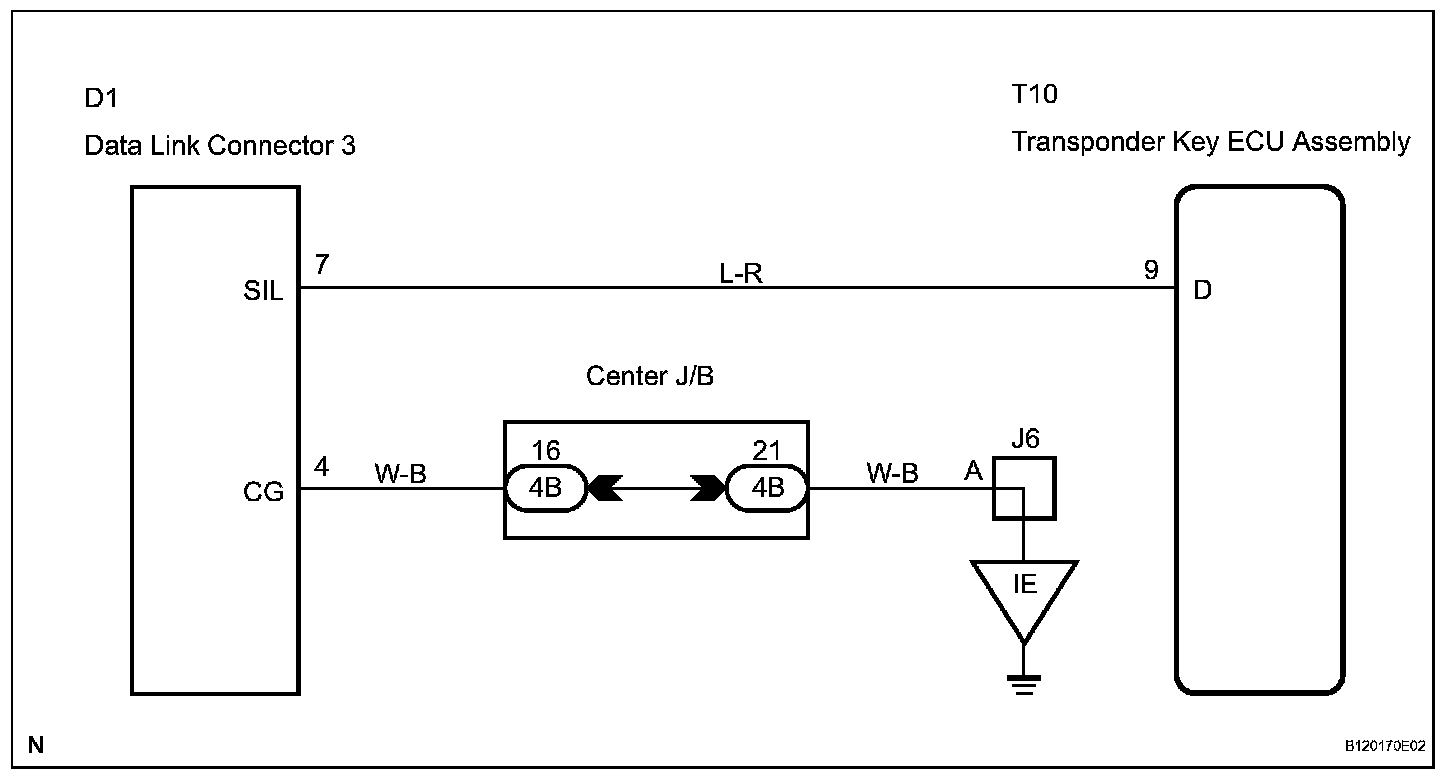

Wiring Diagram:

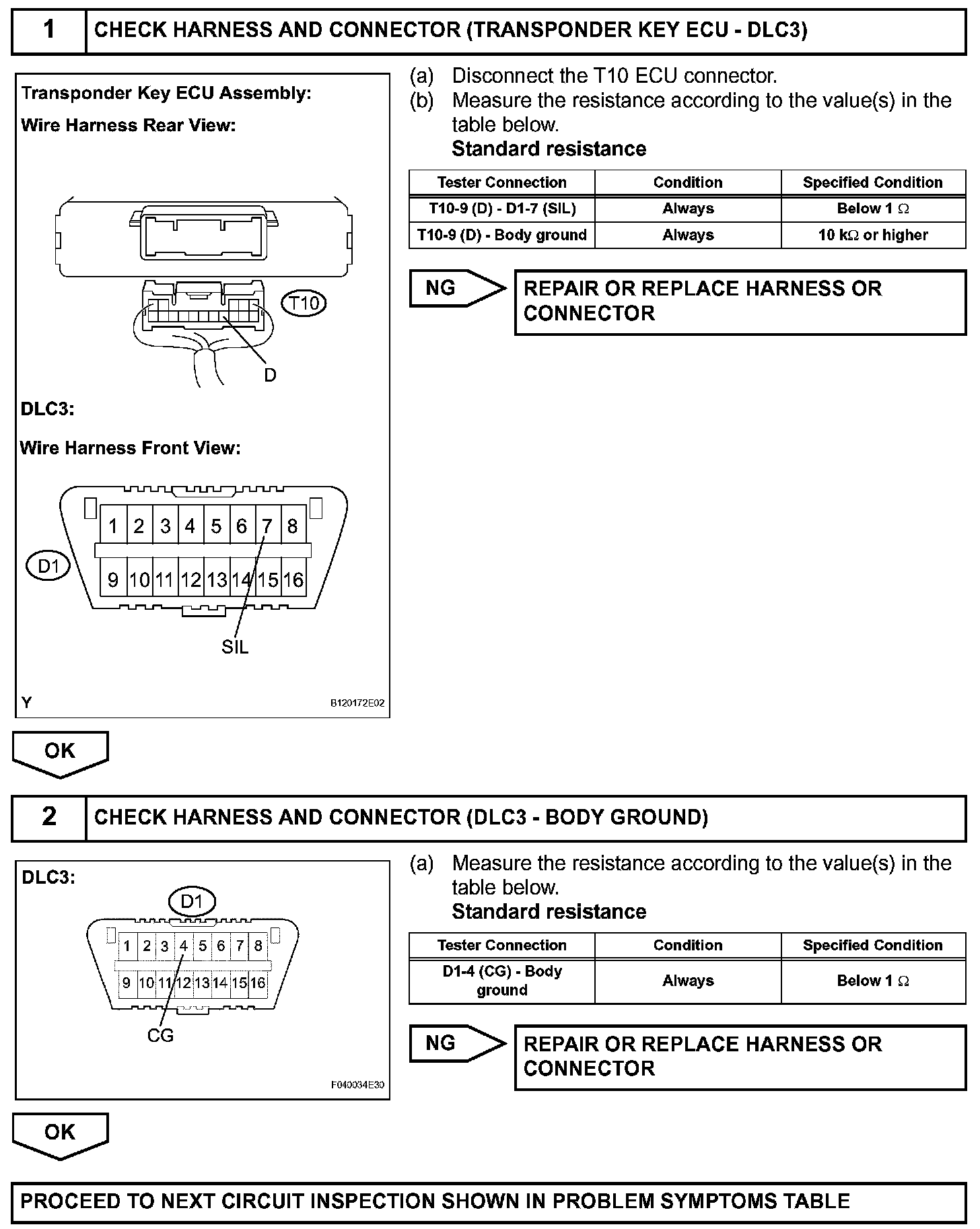

Step 1-2:
INSPECTION PROCEDURE
DESCRIPTION
This circuit is used to read the DTCs that are output from the transponder key ECU assembly with the intelligent tester.
INSPECTION PROCEDURE
