Wiring Harness: Service and Repair

TRANSMISSION WIRE

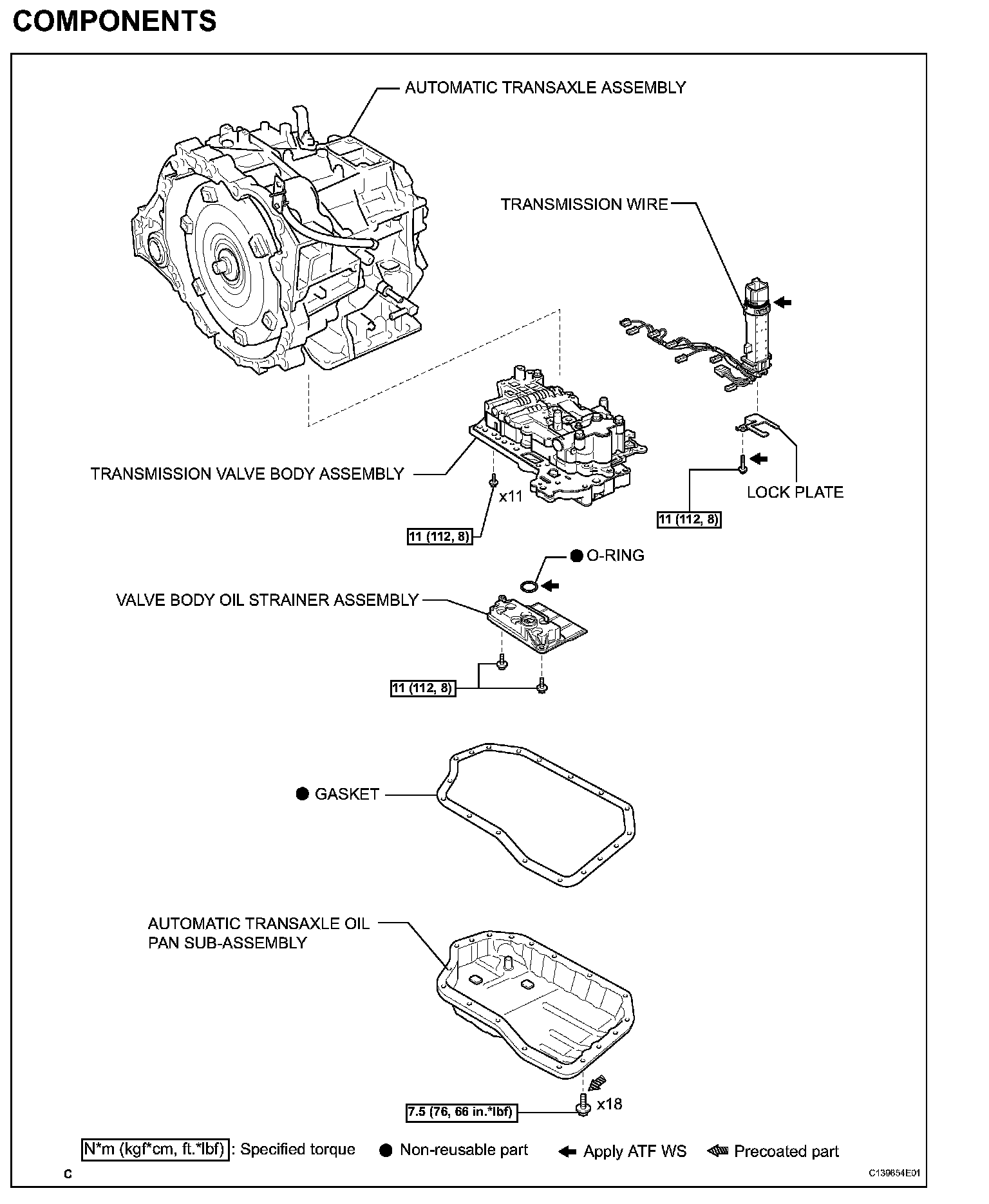

COMPONENTS:

REMOVAL
1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
2. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
3. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
4. REMOVE TRANSMISSION VALVE BODY ASSEMBLY





5. REMOVE TRANSMISSION WIRE

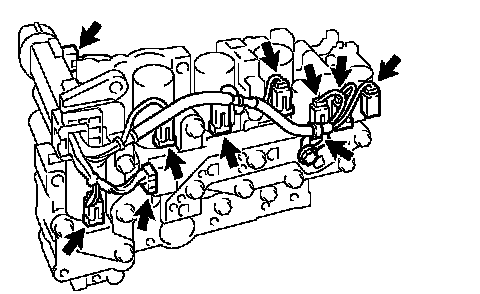

(a) Disconnect the 9 connectors.
(b) Remove the transmission wire from the clamp.

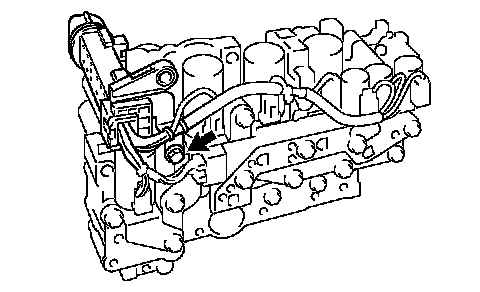

(c) Remove the bolt, lock plate and transmission wire from the valve body.

INSTALLATION





1. INSTALL TRANSMISSION WIRE
(a) Coat the O-ring with ATF.
(b) Coat the bolt with ATF.

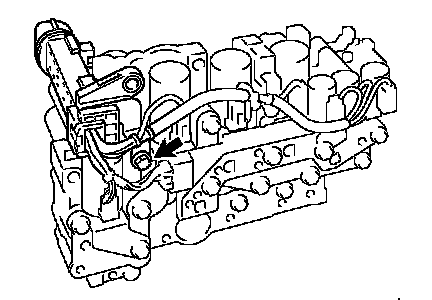

(c) Install the transmission wire and lock plate to the valve body with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft. lbs.)





(d) Install the transmission wire to the clamp.

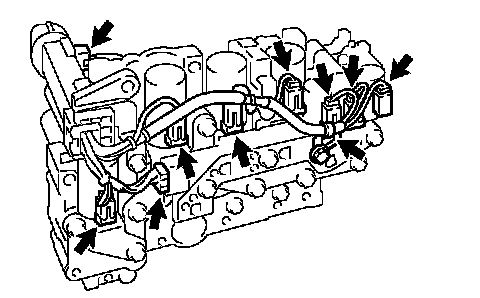

(e) Connect the 9 connectors.

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
5. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
