Child Restraint Seat Anchor Bracket
REMOVAL1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Seat Type)
4. REMOVE REAR SEAT BACK ASSEMBLY (for Fixed Seat Type)
5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Fold Down Seat Type)
6. REMOVE REAR SEAT BACK COVER (for Reclining Seat Type)
7. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Reclining Seat Type)
8. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

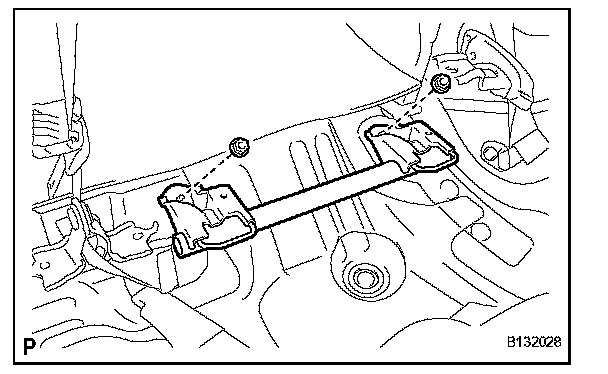

a. Remove the 2 nuts and child restraint seat anchor bracket sub-assembly.
INSTALLATION
1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

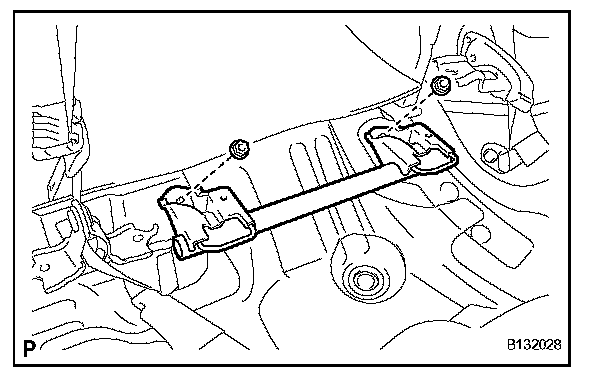

a. Install the child restraint seat anchor bracket subassembly with the 2 nuts.
Torque: 18 N.m (184 kgf. cm, 13 ft.lbf)
2. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Reclining Seat Type)
3. INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)
4. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Fold Down Seat Type)
5. INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Seat Type)
6. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Seat Type)
7. INSTALL REAR SEAT HEADREST ASSEMBLY
8. INSTALL REAR SEAT CUSHION ASSEMBLY
