Theft Deterrent System (W/O Smart Key System)

ECU Power Source Circuit

DESCRIPTION
This circuit provides power for main body ECU operation.

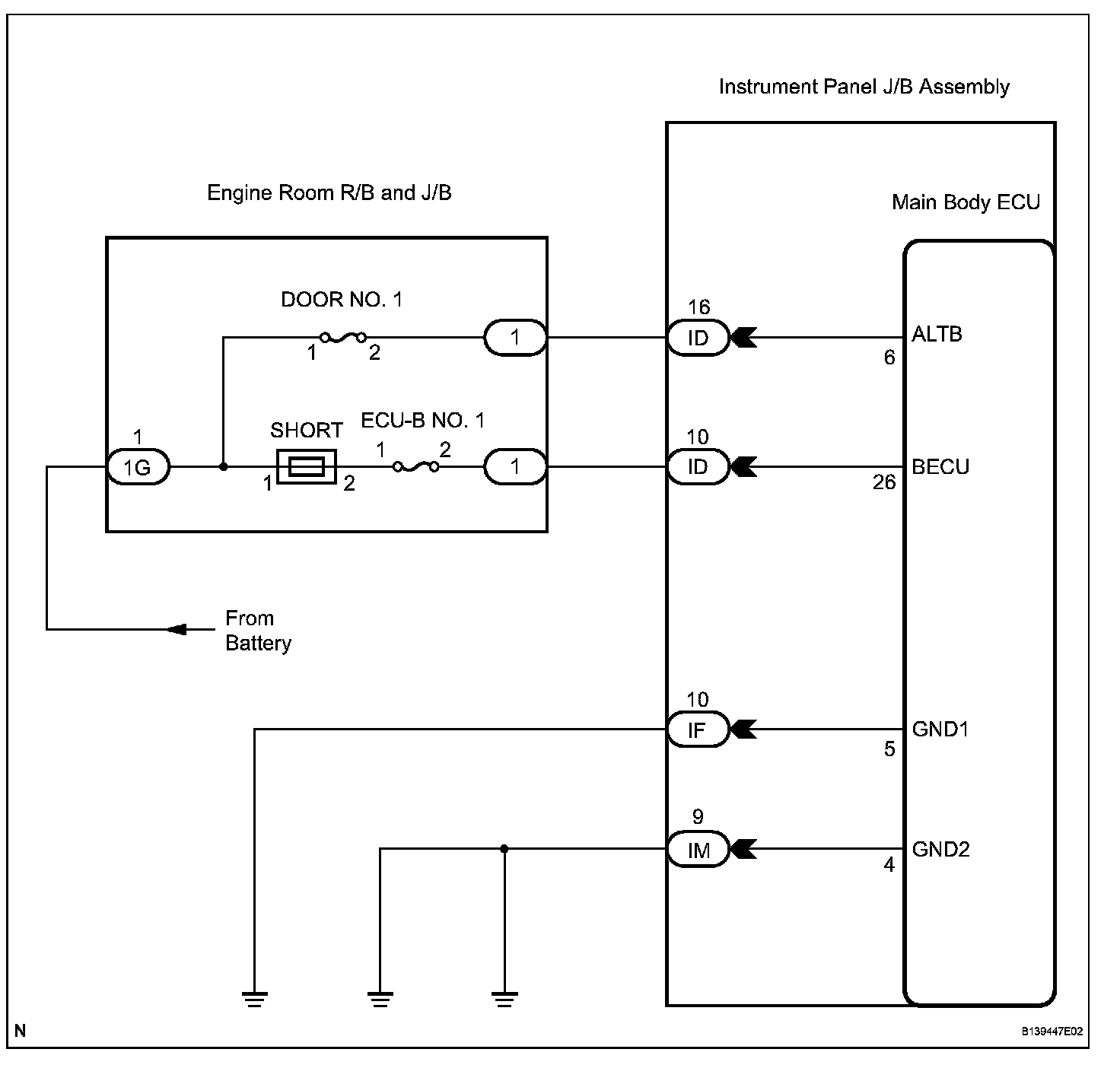

Wiring Diagram:

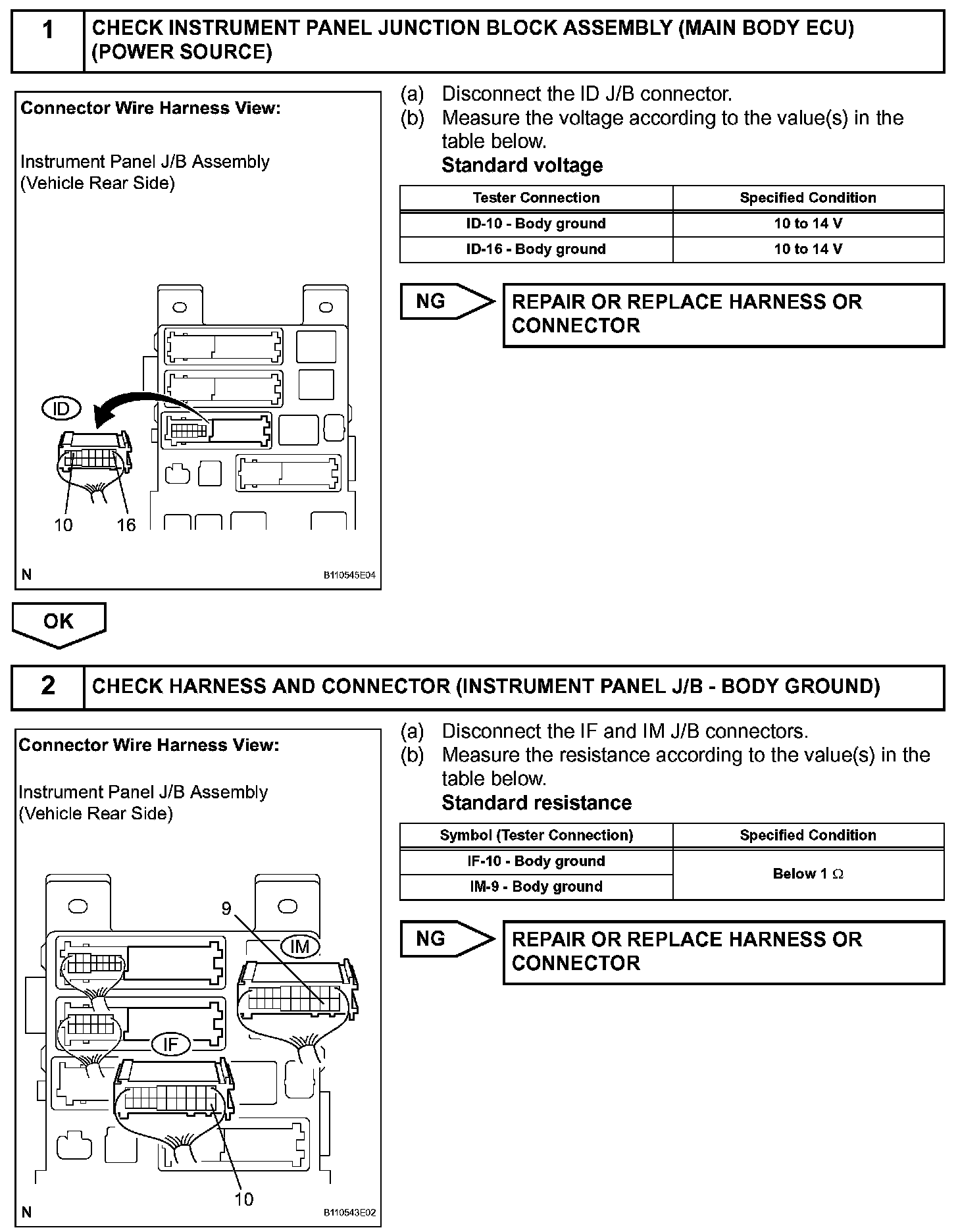

Step 1-2:

Step 2(continued):

INSPECTION PROCEDURE
