Transmission Control Switch Circuit

Transmission Control Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (first range) and "6" (sixth range).
Shifting up "+" once raises one shift range position, and shifting down "2 lowers one shift range position.

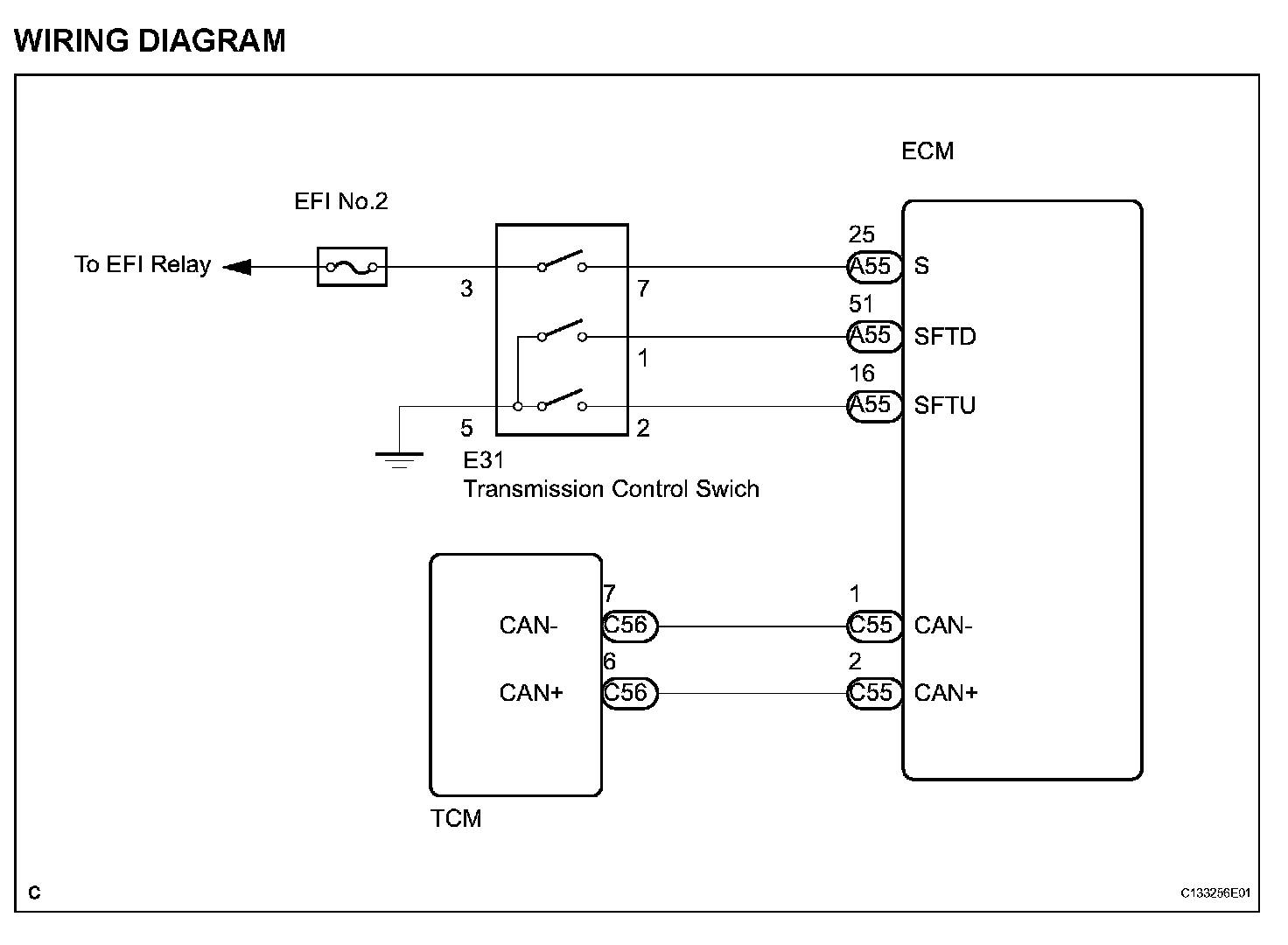

WIRING DIAGRAM:

INSPECTION PROCEDURE

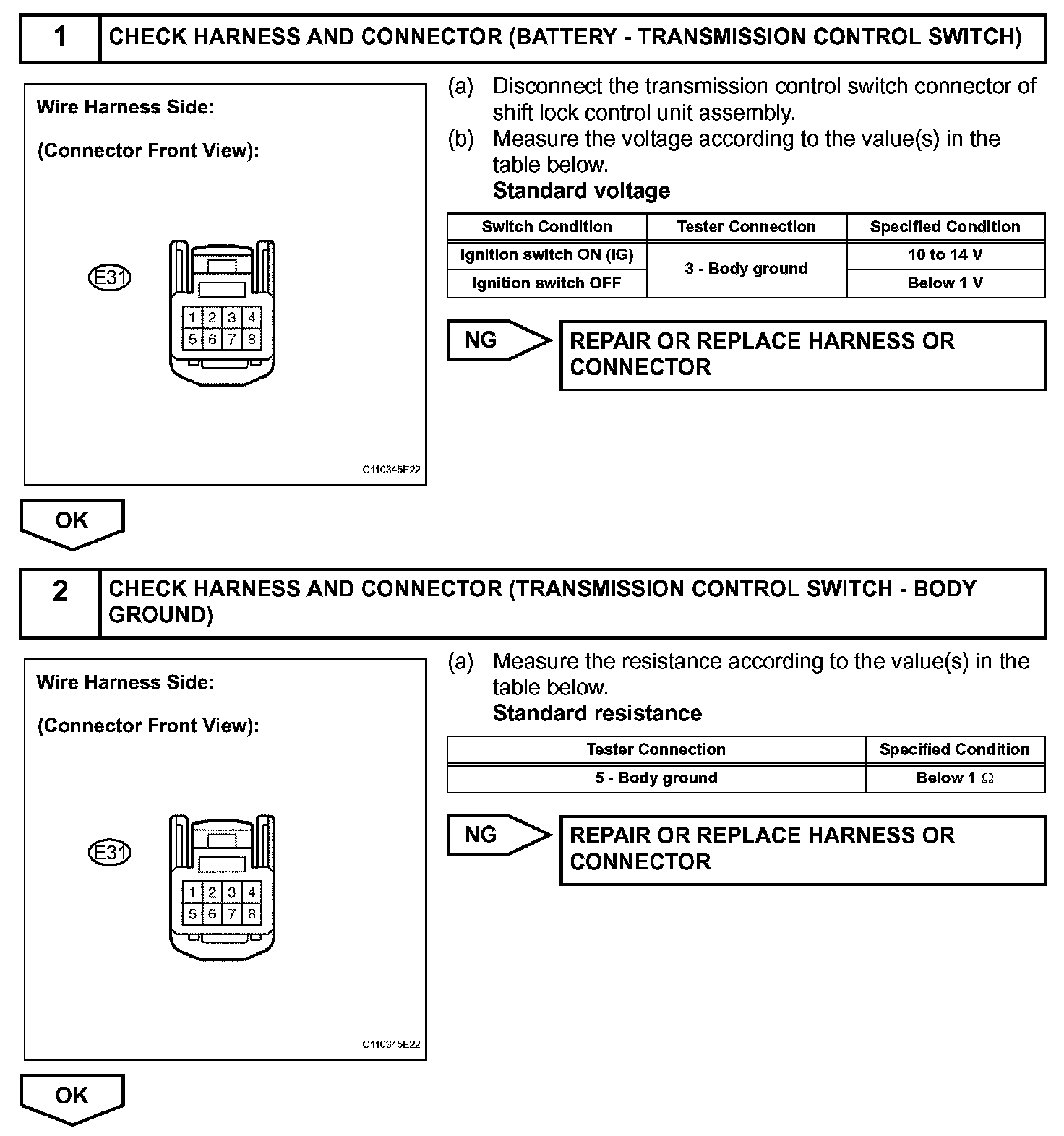

Step 1-2:

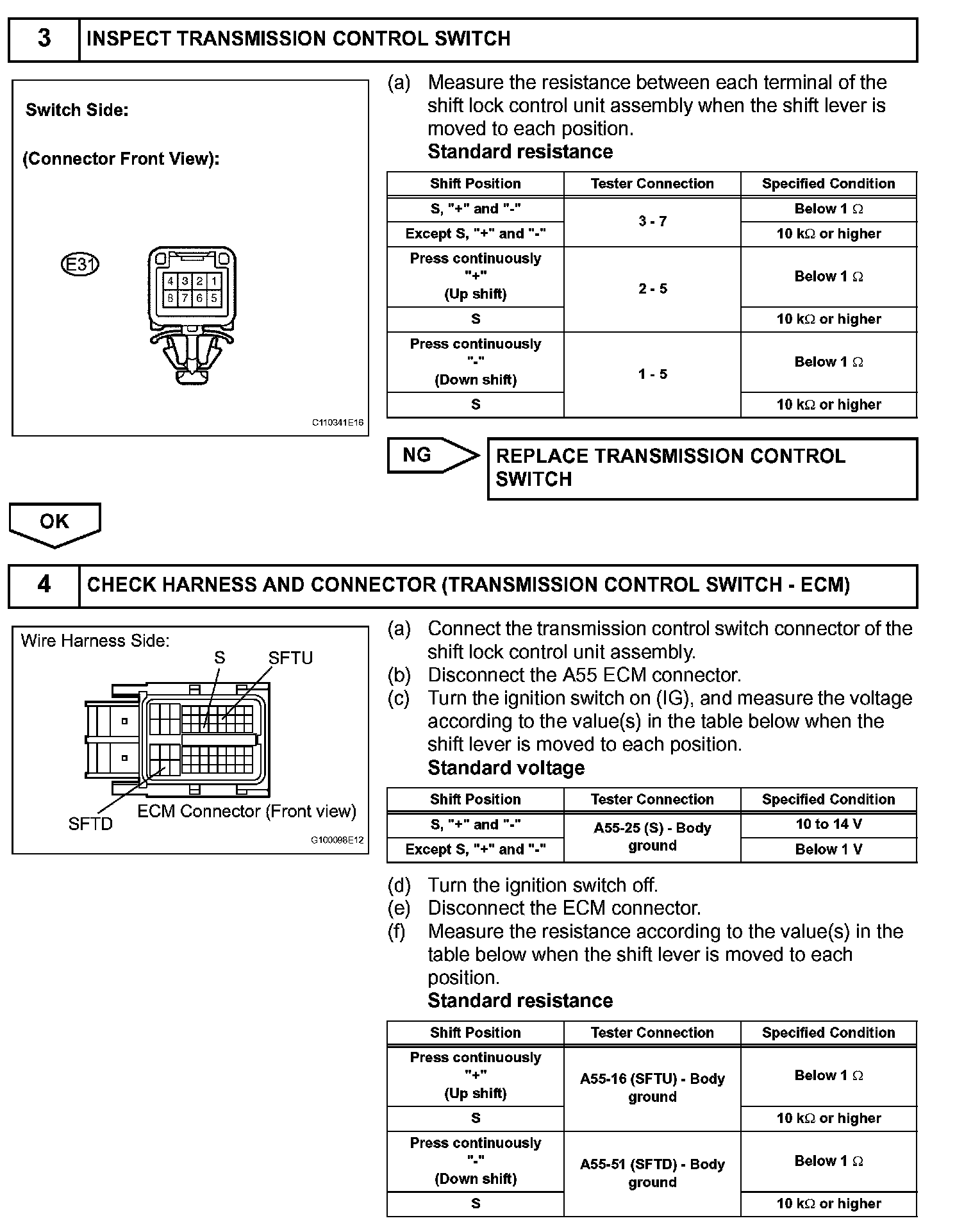

Step 3-4:

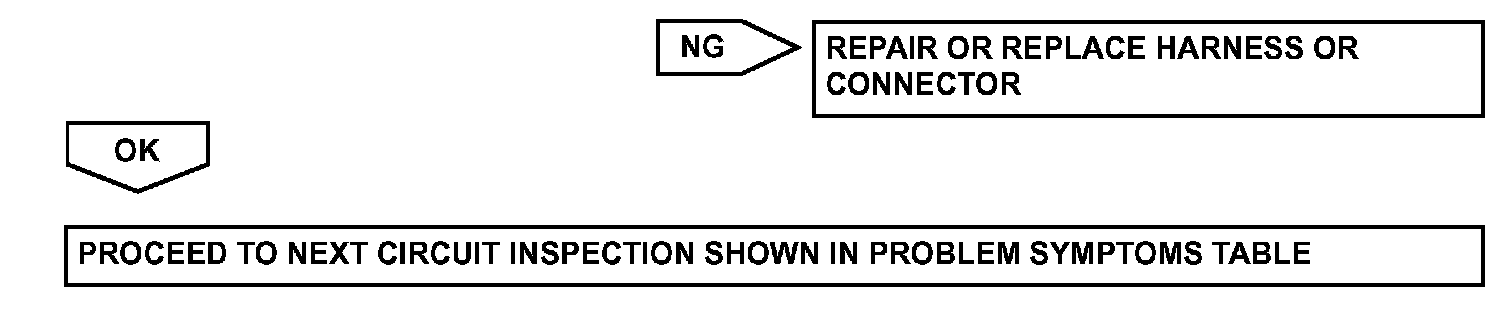

Step 4:
