Canada - A/T - U660E Solenoid Idnetification

Bulletin
2569

Issue Date
July 18, 2006

Market
Canada

Title:
U660E TRANSMISSION SOLENOID IDENTIFICATION

Component
AUTOMATIC TRANSMISSION

Models
'07 Camry (V6)

INTRODUCTION:
This service bulletin provides information on the proper identification of the 7 solenoids used in the U660E transmission.

APPLICABLE VEHICLES:
- 2007 model year Camry vehicles equipped with V6 engine.

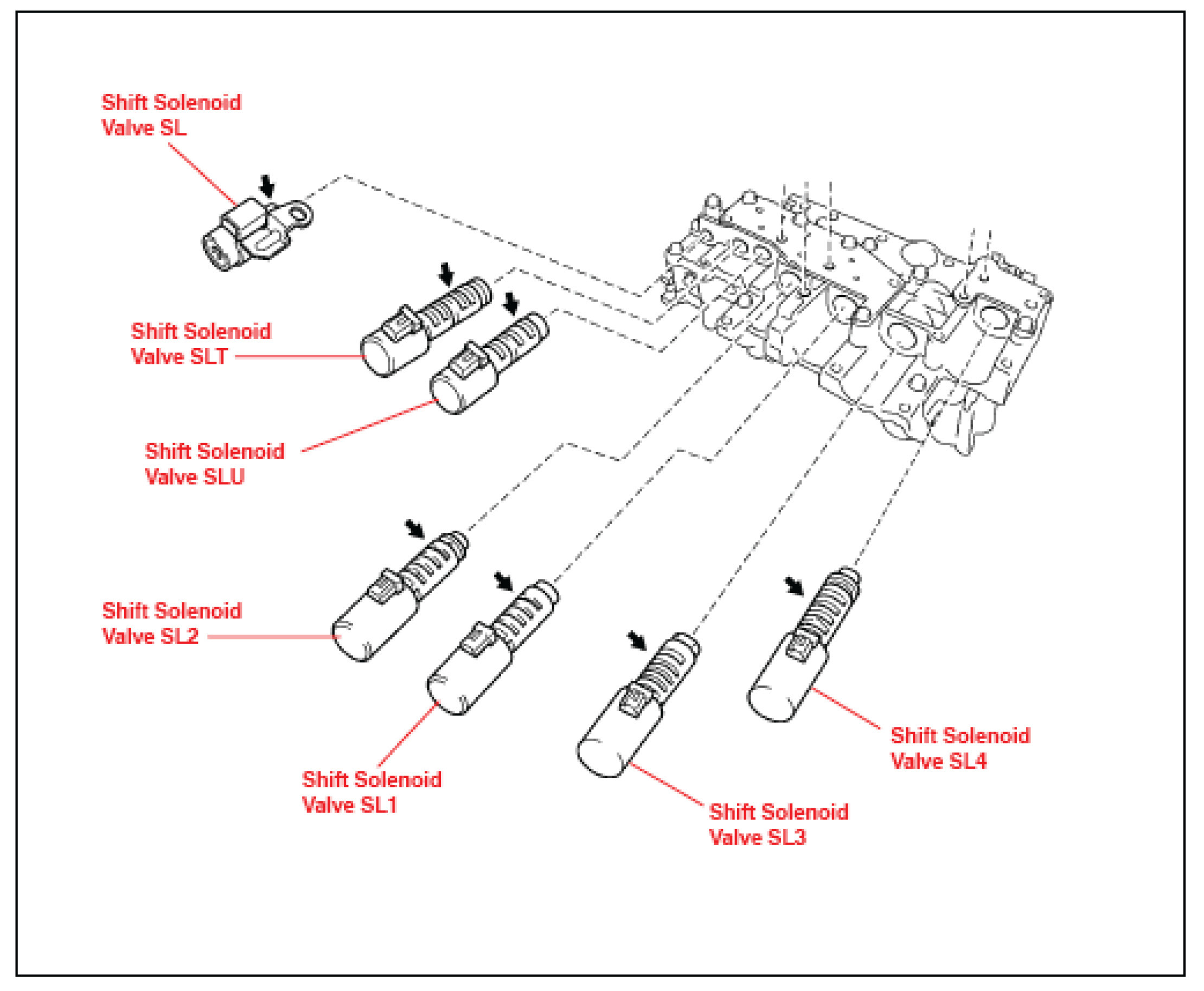

TRANSMISSION SOLENOID IDENTIFICATION:

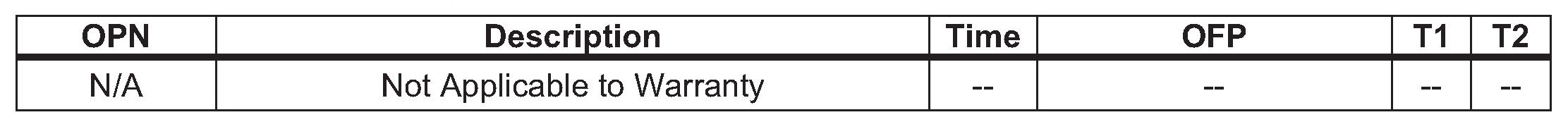

WARRANTY INFORMATION:

PARTS INFORMATION:

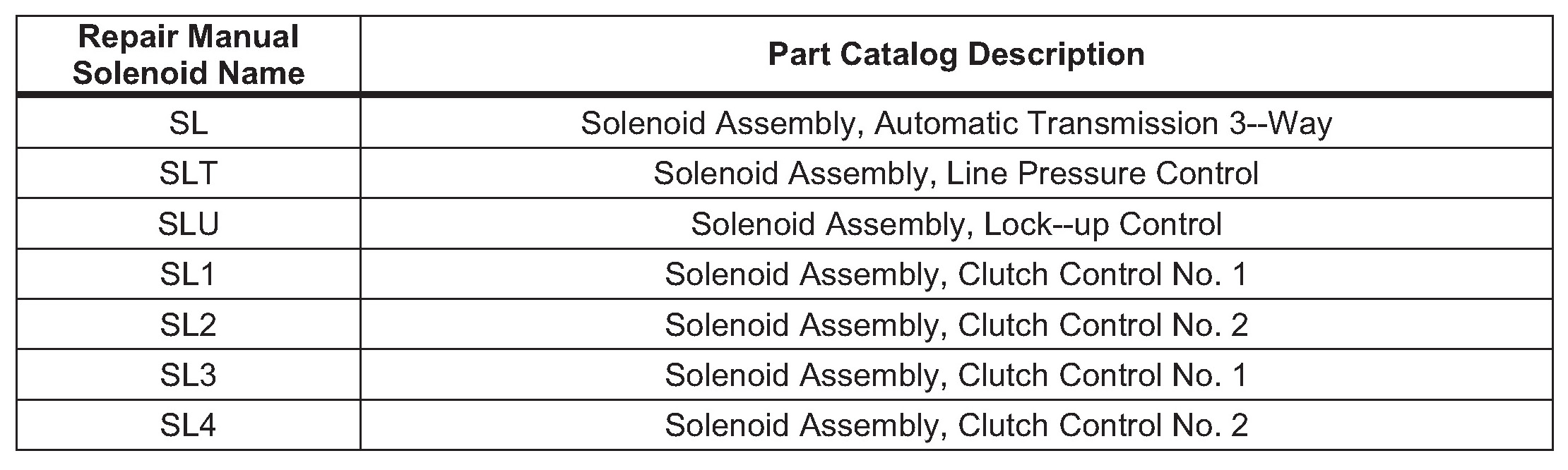

Provided is a chart listing the Repair Manual name of each solenoid used in the U660E transmission as well as the part name description provided in the electronic parts catalog.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
