A/T - U660E Solenoid Identification
TRANSMISSION & CLUTCHTC009-06
Title:
U660E TRANSMISSION SOLENOID
IDENTIFICATION
Models:
'07 Camry (V6 Only)
August 8, 2006
Introduction
This service bulletin provides information on the proper identification of the 7 solenoids used in the U660E transmission.
Applicable Vehicles
^ 2007 model year Camry vehicles equipped with the V6 engine.

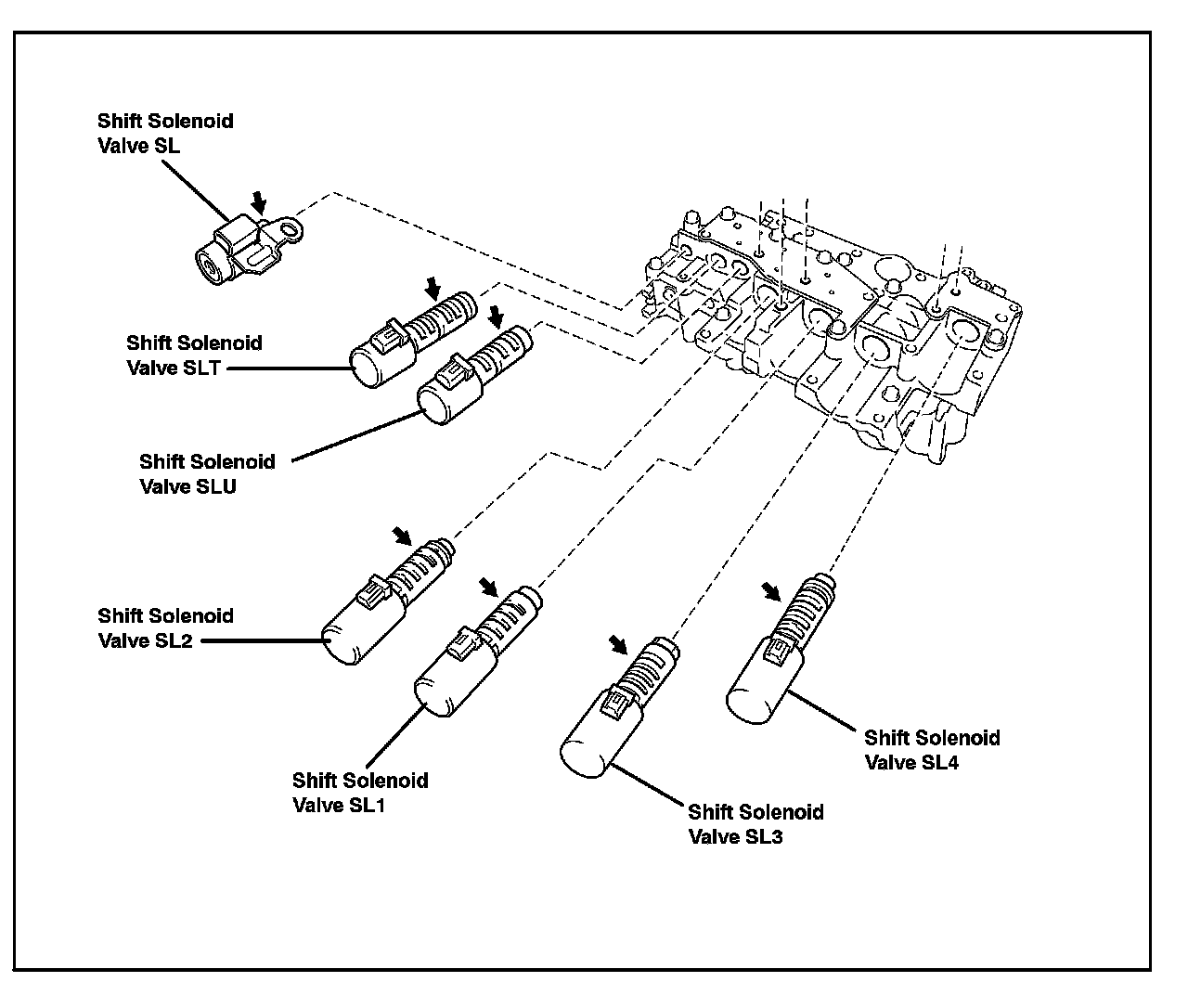

Transmission Solenoid Identification
Warranty Information
Parts Information

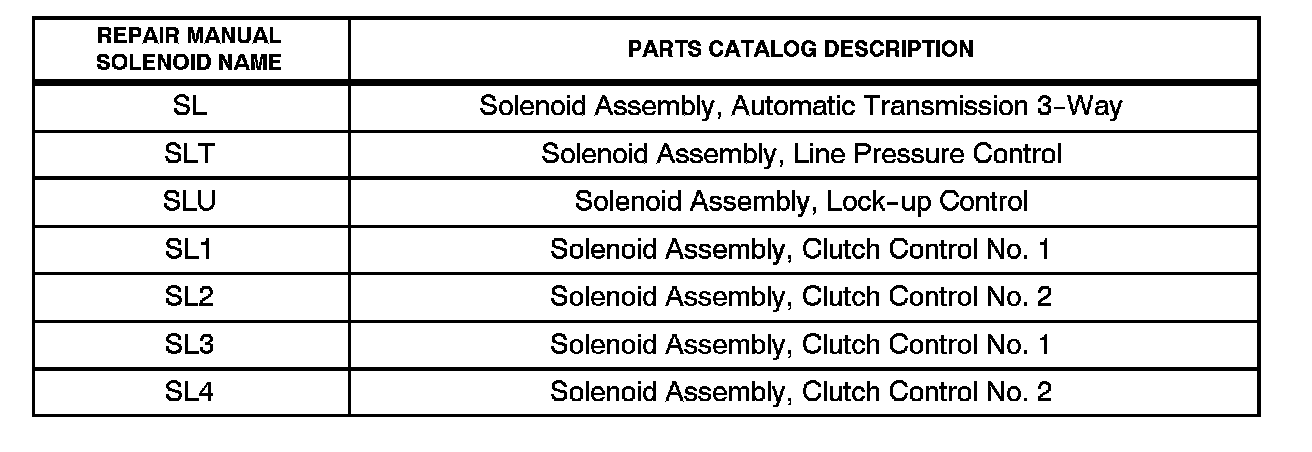

Provided below is a chart listing the Repair Manual name of each solenoid used in the U660E transmission as well as the part name description provided in the electronic parts catalog.
