Fuel Pressure Pulsation Damper: Service and Repair
REMOVAL1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. DRAIN ENGINE COOLANT
4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
6. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
7. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
8. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY
9. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
10. REMOVE COWL TOP PANEL OUTER SUBASSEMBLY
11. REMOVE V-BANK COVER SUB-ASSEMBLY
12. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
13. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

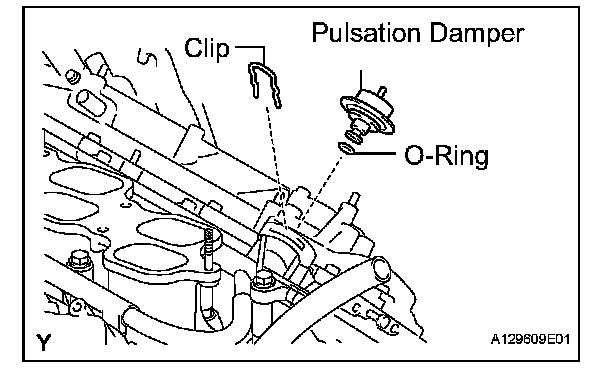

14. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY
a. Remove the clip.
b. Pull out the fuel pressure pulsation damper from the fuel delivery pipe.
c. Remove the O-ring from the fuel pressure pulsation damper.
INSTALLATION
1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
a. Apply a light coat of spindle oil or gasoline to a new O-ring and install it to the fuel pressure pulsation damper.
b. Install the fuel pressure pulsation damper to the fuel delivery pipe.
c. Install the clip.
2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
4. ADD ENGINE COOLANT
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK FOR ENGINE COOLANT LEAKS
7. CHECK FOR FUEL LEAKS
8. INSTALL COWL TOP PANEL OUTER SUBASSEMBLY
9. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
10. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
11. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
12. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
13. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
14. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
15. INSTALL V-BANK COVER SUB-ASSEMBLY
