Removal and Installation
REMOVAL1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
2. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY (w/ Smart Key System)
3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
4. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
5. REMOVE LICENSE PLATE LIGHT ASSEMBLY
a. Disconnect the connector.

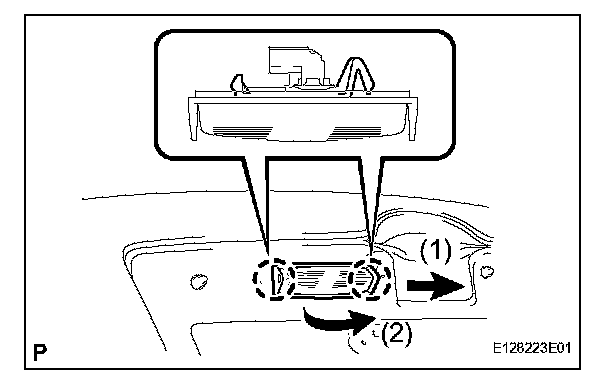

b. Disengage the 2 claws and remove the license plate light assembly as shown in the illustration.
INSTALLATION
1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

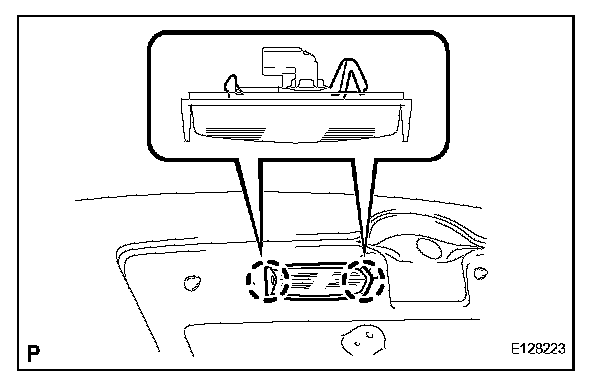

a. Engage the 2 claws to install the license plate light assembly.
b. Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
3. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
4. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY (w/ Smart Key System)
5. INSTALL LUGGAGE COMPARTMENT DOOR COVER
