Disassembly and Reassembly

DISASSEMBLY

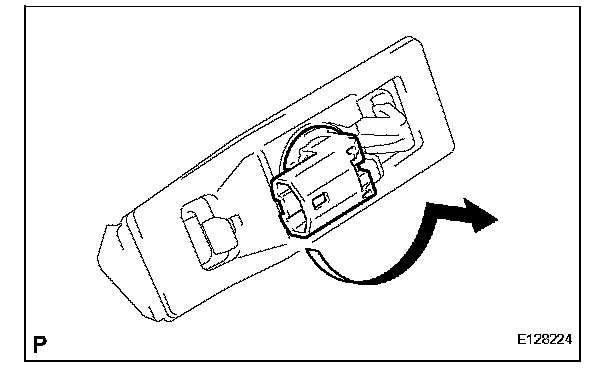

1. REMOVE LICENSE PLATE LIGHT BULB
a. Turn the license plate light bulb and the license plate light socket in the direction indicated by the arrow and remove them as a unit.
b. Remove the license plate light bulb from the license plate light socket.

REASSEMBLY

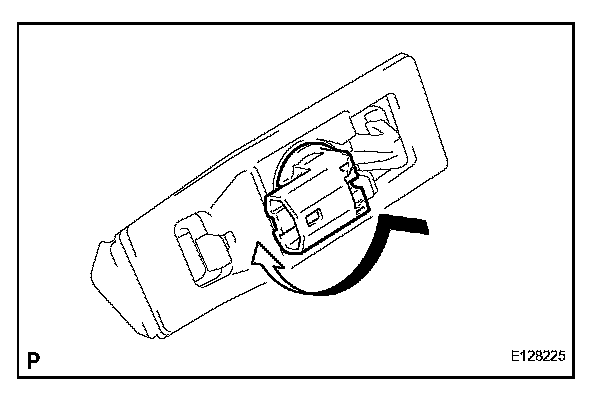

1. INSTALL LICENSE PLATE LIGHT BULB
a. Install the license plate light bulb to the license plate light socket.




b. Turn the license plate light bulb and the license plate light socket in the direction indicated by the arrow and install them as a unit.
