Variable Valve Timing Actuator Position Sensor
Variable Valve Timing Actuator Position Sensor

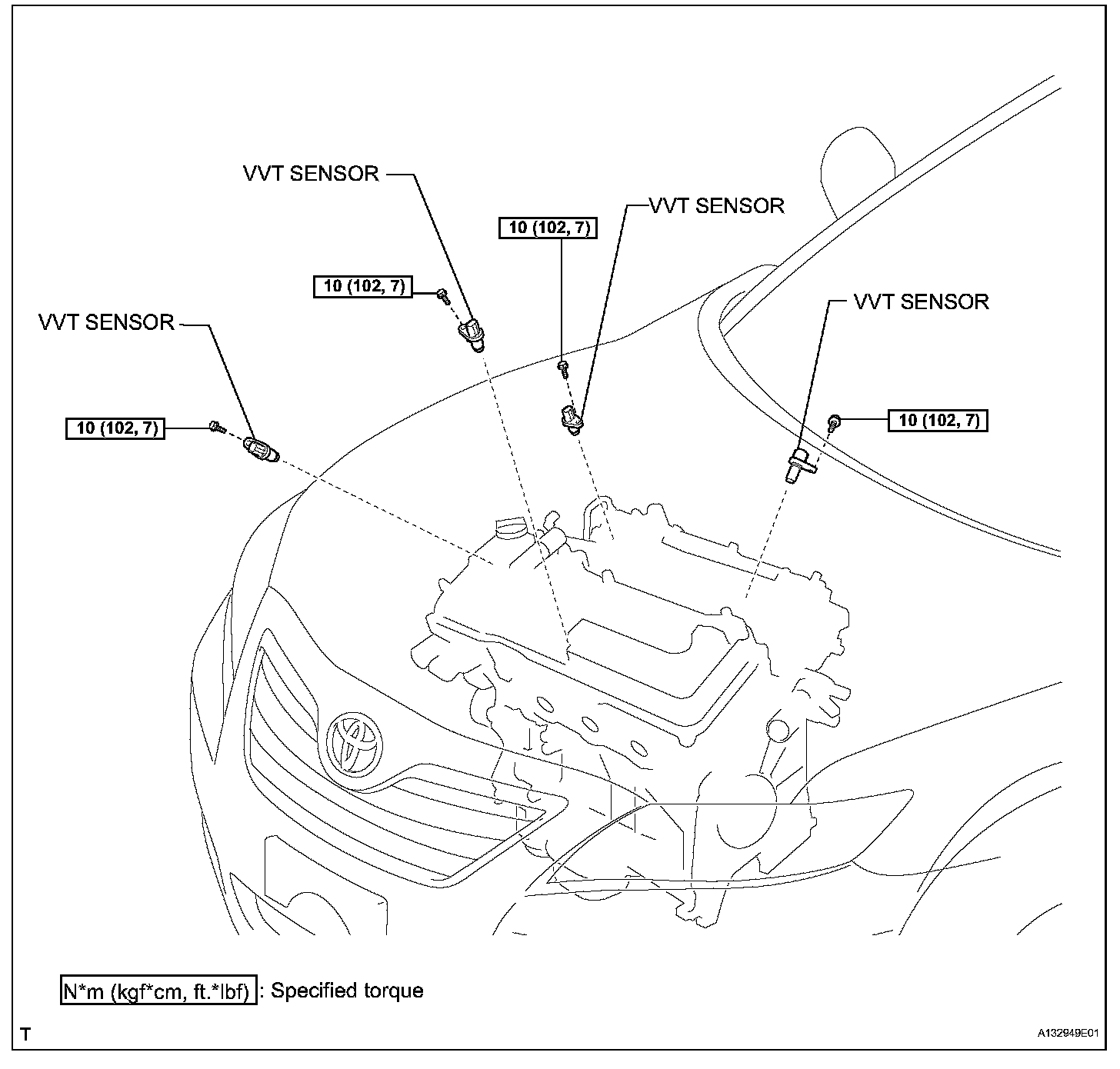

VVT Sensor:
VVT Sensor:
VVT Sensor:
