Home >> Toyota >> 2007 >> Camry V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> Housing Assembly HVAC >> Blower Unit

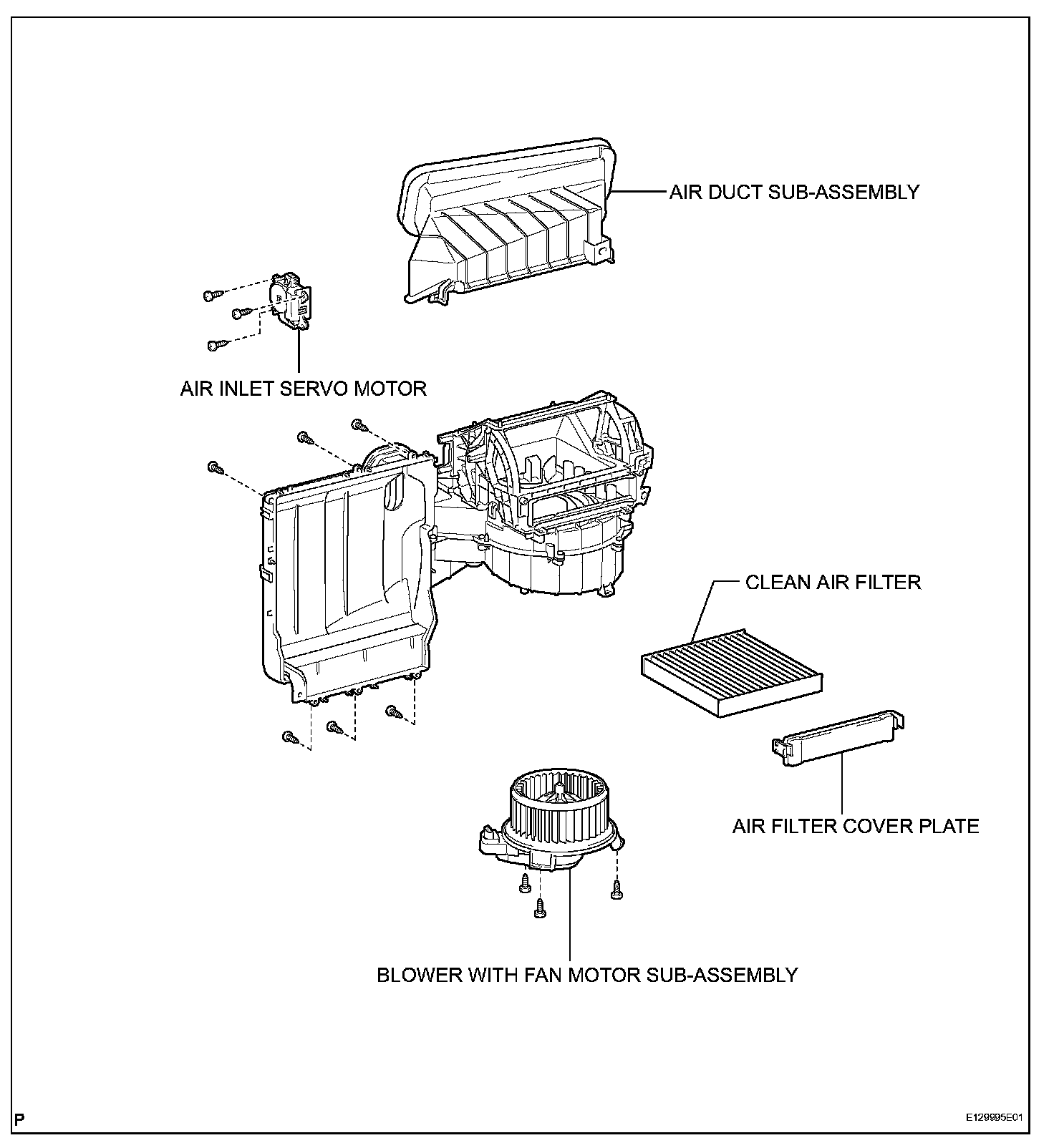

Blower Unit

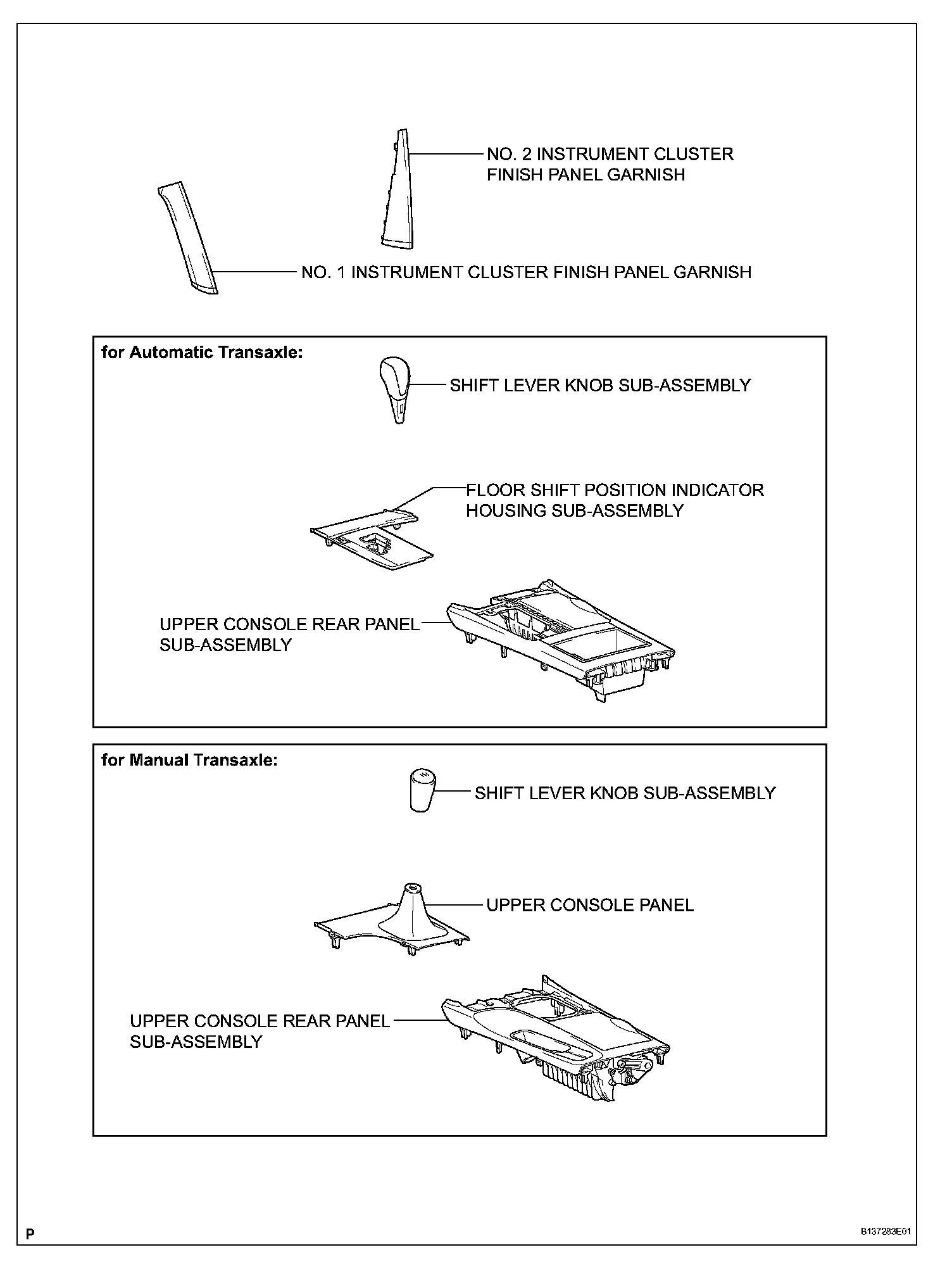

Blower Unit:

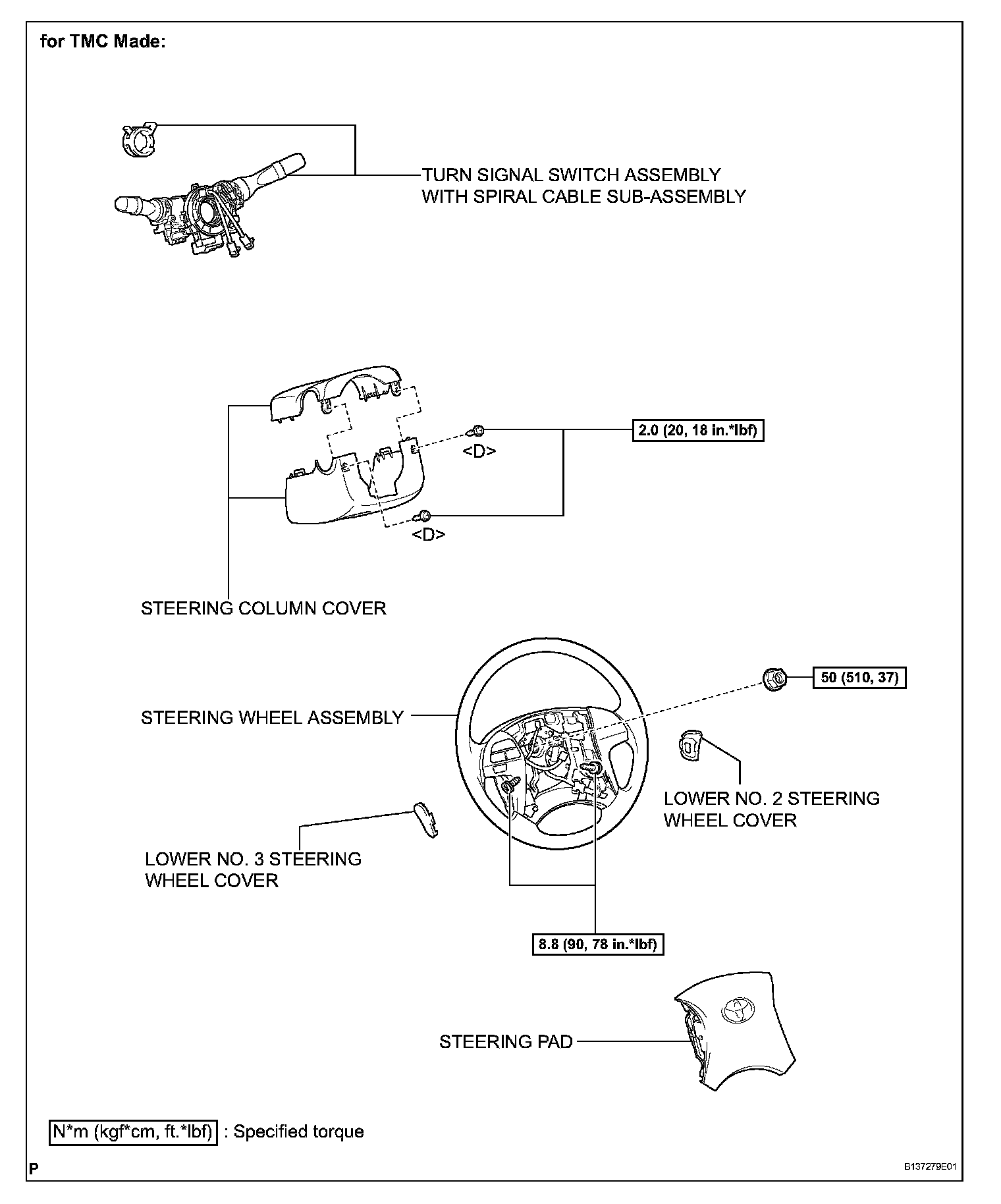

Blower Unit:

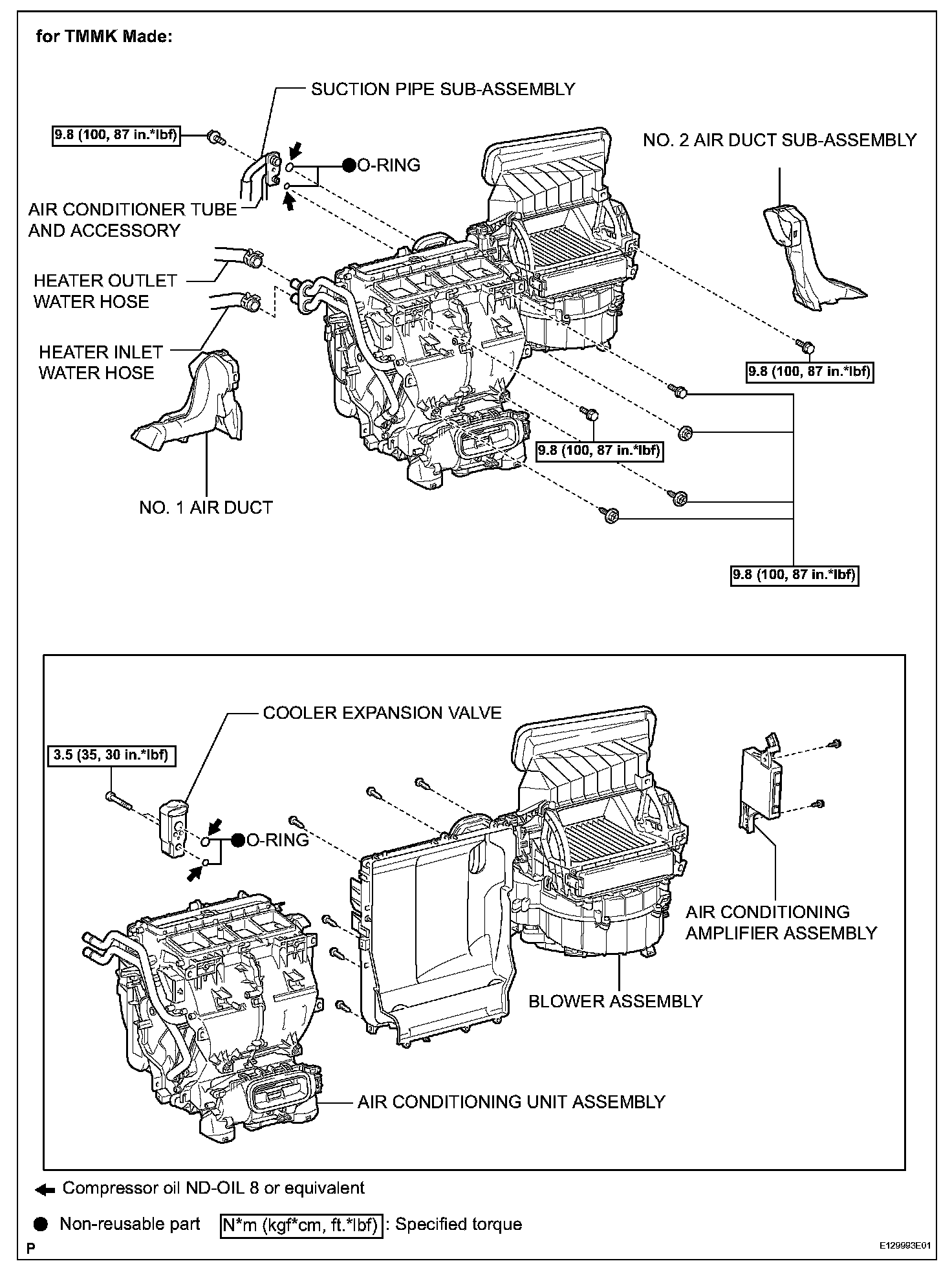

Blower Unit:

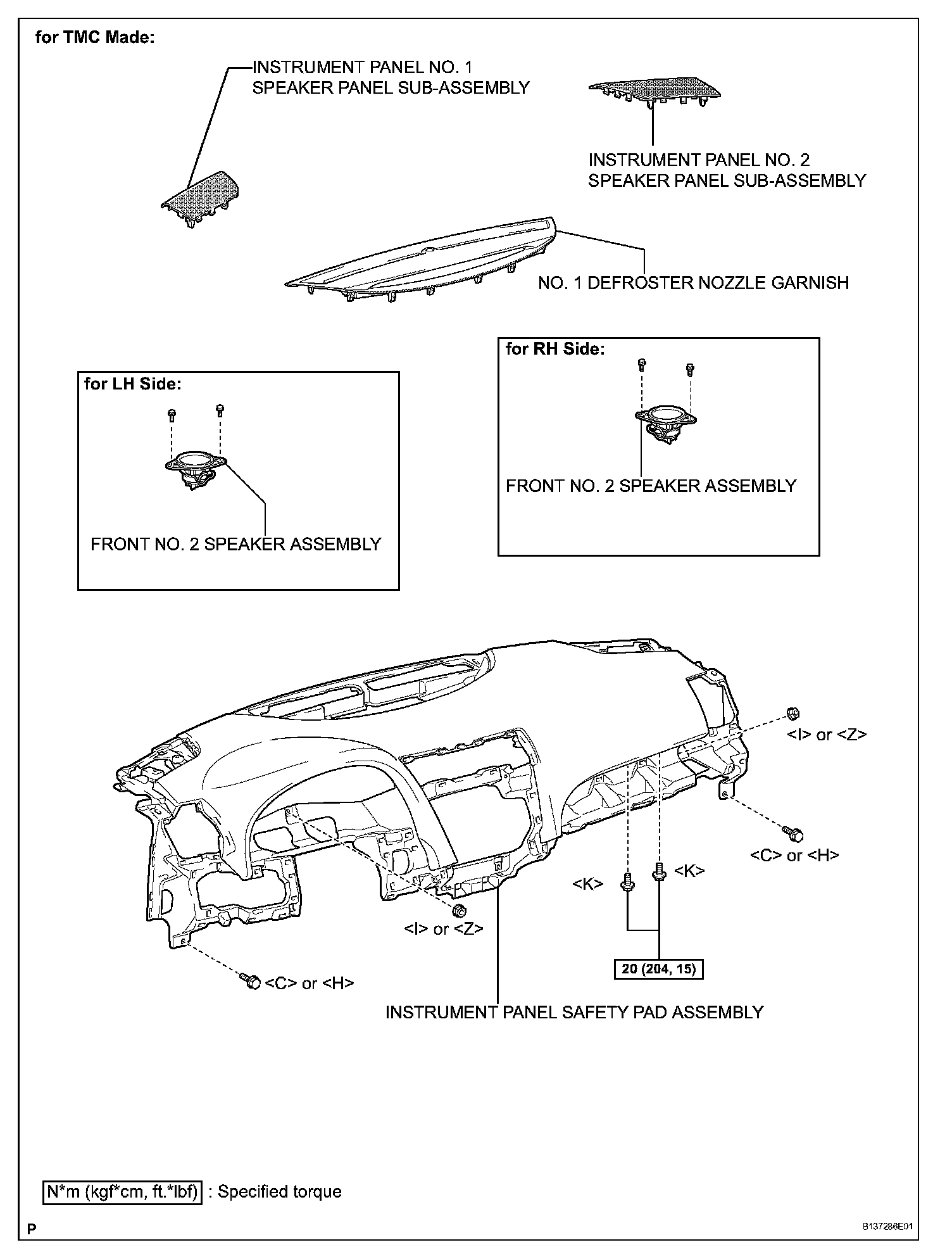

Blower Unit:

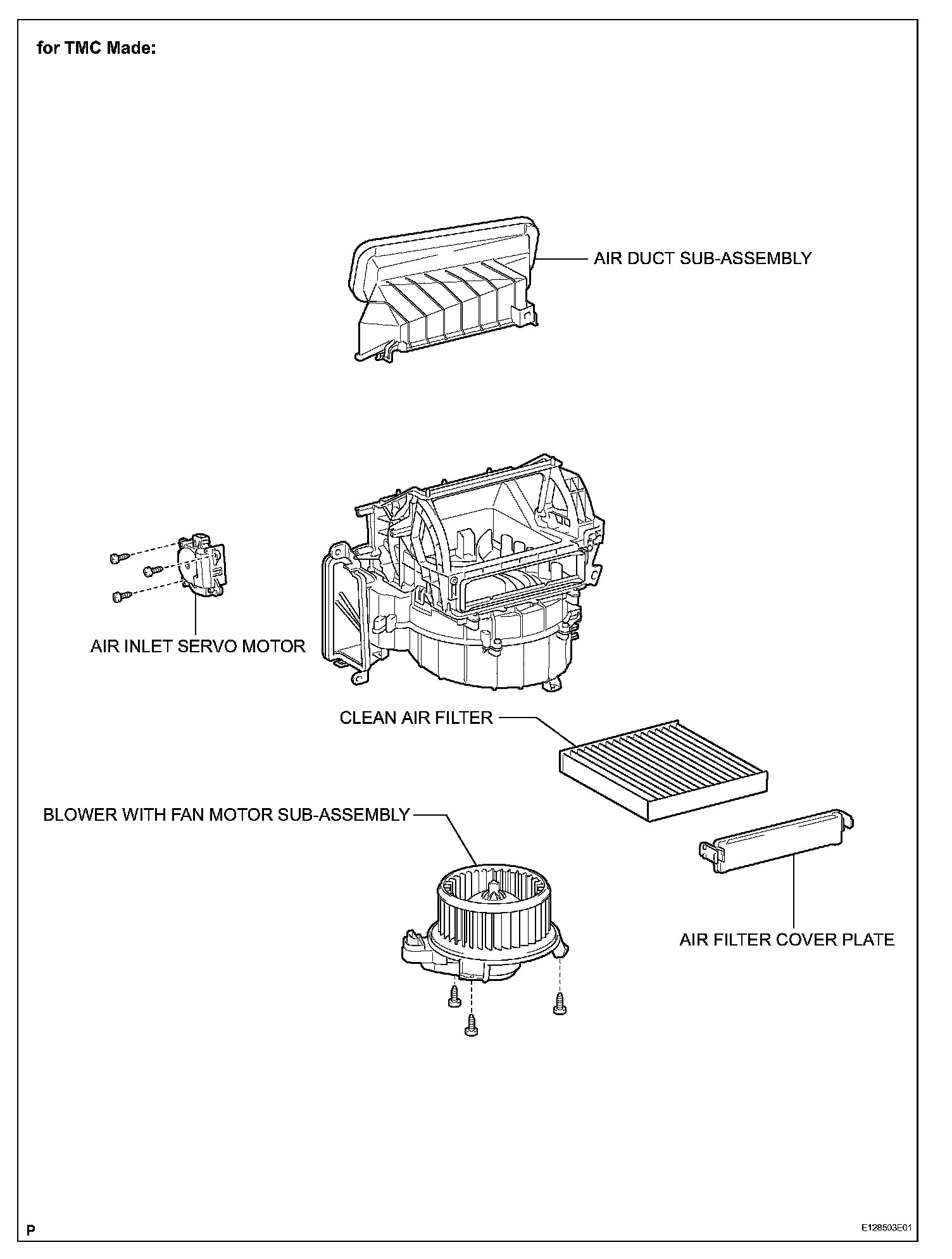

Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:



Blower Unit:
